RS80R-KB (1974)
Toyota Crown
(7410-7908)MS85,95,RS80..4D

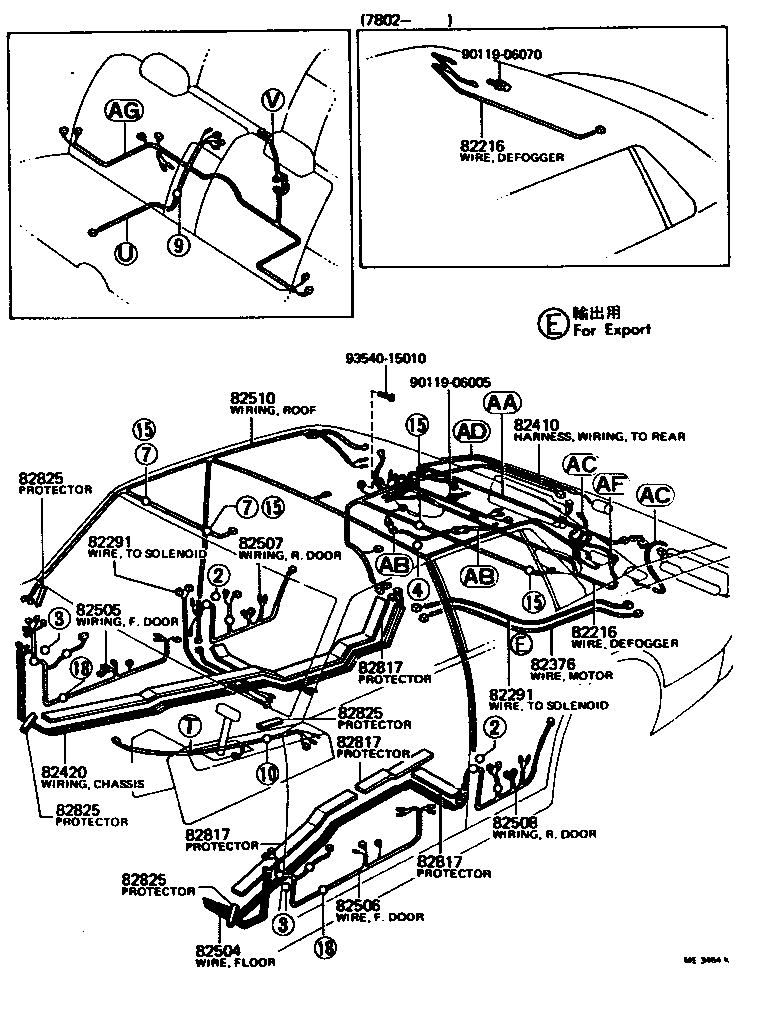

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-30100 |
MS85,RS80..BTP AM/FM RADIO |
1 | ||
| 82216-30120 |
MS85,RS80 |
1 | ||
| 82216-30101 |
MS85,95,RS80 RR.WINDOW ANTENNA |
1 | ||
| 82216-30120 |
MS85,95,RS80..GEN L/RR.WINDOW ANTENNA |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-30100 |
MS85,RS80..BTP AM/FM RADIO |
1 | ||
| 82216-30120 |
MS85,RS80 |
1 | ||
| 82216-30101 |
MS85,95,RS80 RR.WINDOW ANTENNA |
1 | ||
| 82216-30120 |
MS85,95,RS80..GEN L/RR.WINDOW ANTENNA |
1 | ||
| 82376 - WIRE, MOTOR ANTENNA | ||||
| 82377-30010 |
MS85,RS80..BTP,DLX |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-30240 |
MS85,RS80..BTP |
1 | ||
| 82410-30241 |
MS85,RS80..BTP |
1 | ||
| 82410-30252 |
MS85,RS80..BTP W/STEREO |
1 | ||
| 82410-30400 |
MS85,RS80..BTP |
1 | ||
| 82410-30242 |
MS85,RS80..BTP |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-30140 |
MS85,RS80..BTP |
1 | ||
| 82420-30142 |
MS85,RS80..BTP |
1 | ||
| 82420-30141 |
MS85,RS80..BTP |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-30060 |
MS85,RS80..BTP |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-30060 |
MS85,RS80..BTP |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-30200 |
MS85,RS80..BTP W/REAR WINDOW DEFOGGER |
1 | ||
| 82510-30210 |
MS85,RS80..BTP |
1 | ||
| 82510-30200 |
MS85,RS80..BTP |
1 | ||
| 82510-30280 |
MS85..3FC..BTP..ARL;MS85,RS80..(BTP,DLX)..(EUR,GEN) |
1 | ||
| 82510-30280 |
MS85,RS80..BTP,DLX |
1 | ||
| 82510-30281 |
MS85,RS80..BTP,DLX |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22050 |
MS8#,95,RS80 L=700,W=120 |
5 | ||
| 82817-30060 |
MS8#,95,RS80 L=350,W=120 |
4 | ||
| 82817-30150 |
MS8#,95,RS80 L=350,W=150 |
4 | ||
| 82817-30140 |
MS8#,95,RS80 L=700,W=150 |
5 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22050 |
MS8#,95,RS80 L=700,W=120 |
5 | ||
| 82817-30060 |
MS8#,95,RS80 L=350,W=120 |
4 | ||
| 82817-30150 |
MS8#,95,RS80 L=350,W=150 |
4 | ||
| 82817-30140 |
MS8#,95,RS80 L=700,W=150 |
5 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22050 |
MS8#,95,RS80 L=700,W=120 |
5 | ||
| 82817-30060 |
MS8#,95,RS80 L=350,W=120 |
4 | ||
| 82817-30150 |
MS8#,95,RS80 L=350,W=150 |
4 | ||
| 82817-30140 |
MS8#,95,RS80 L=700,W=150 |
5 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22050 |
MS8#,95,RS80 L=700,W=120 |
5 | ||
| 82817-30060 |
MS8#,95,RS80 L=350,W=120 |
4 | ||
| 82817-30150 |
MS8#,95,RS80 L=350,W=150 |
4 | ||
| 82817-30140 |
MS8#,95,RS80 L=700,W=150 |
5 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-30090 |
MS8#,95,RS80 L=120,L/SLIT |
1 | ||
| 82817-30180 |
MS8#,95,RS80 L=135 W/SLIT |
1 | ||
| 82817-30120 |
MS8#,95,RS80 L=120,W/SLIT |
1 | ||
| 82817-30170 |
MS8#,95,RS80 L=135 L/SLIT |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-30090 |
MS8#,95,RS80 L=120,L/SLIT |
1 | ||
| 82817-30180 |
MS8#,95,RS80 L=135 W/SLIT |
1 | ||
| 82817-30120 |
MS8#,95,RS80 L=120,W/SLIT |
1 | ||
| 82817-30170 |
MS8#,95,RS80 L=135 L/SLIT |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-30090 |
MS8#,95,RS80 L=120,L/SLIT |
1 | ||
| 82817-30180 |
MS8#,95,RS80 L=135 W/SLIT |
1 | ||
| 82817-30120 |
MS8#,95,RS80 L=120,W/SLIT |
1 | ||
| 82817-30170 |
MS8#,95,RS80 L=135 L/SLIT |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-30090 |
MS8#,95,RS80 L=120,L/SLIT |
1 | ||
| 82817-30180 |
MS8#,95,RS80 L=135 W/SLIT |
1 | ||
| 82817-30120 |
MS8#,95,RS80 L=120,W/SLIT |
1 | ||
| 82817-30170 |
MS8#,95,RS80 L=135 L/SLIT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06070 | ||||
| 93540-15010 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

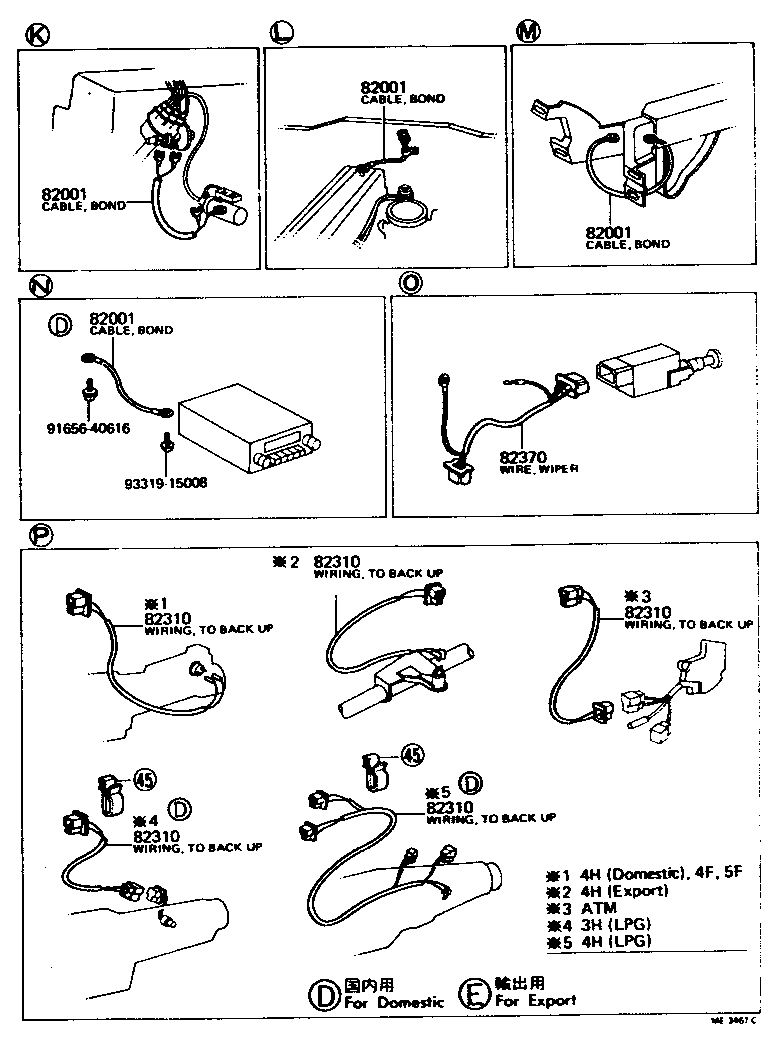

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||

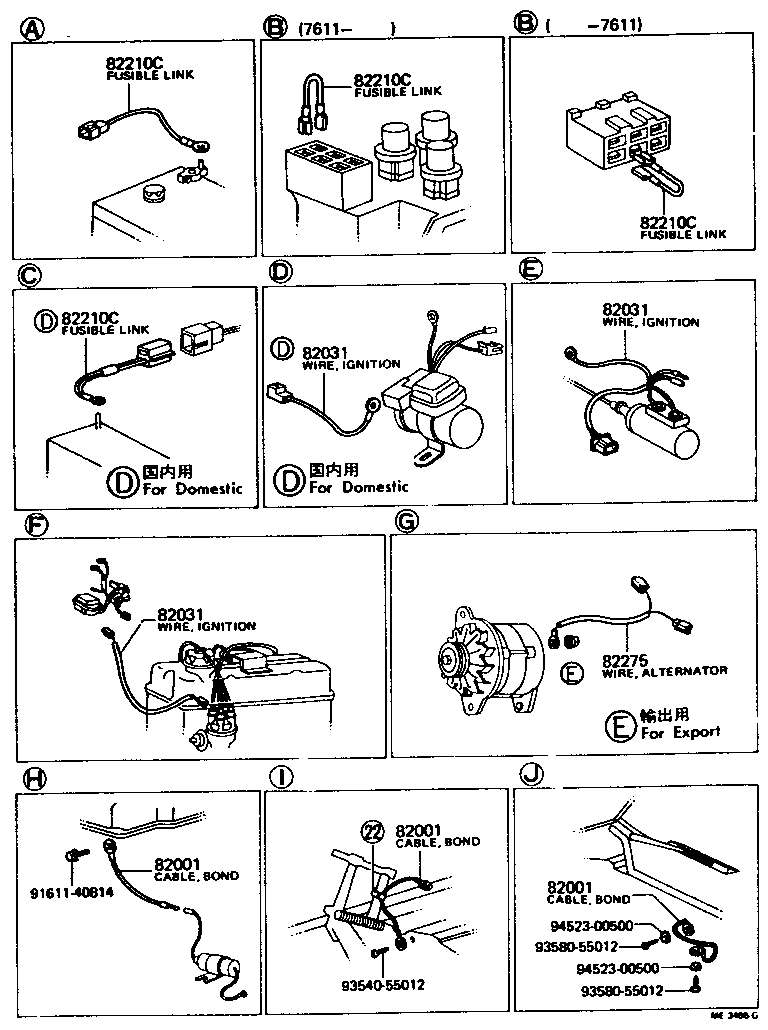

| 82210C - FUSIBLE LINK | ||||
| 90982-08004 |
MS8#,95,RS80 L=110,FOR BATTERY 1.25B |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
2 | ||
| 90982-08042 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.85R |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
3 | ||
| 90982-08039 |
MS8#,95,RS80 L=110,FOR BATTERY |
1 | ||
| 90982-08108 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.3P |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08004 |
MS8#,95,RS80 L=110,FOR BATTERY 1.25B |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
2 | ||
| 90982-08042 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.85R |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
3 | ||
| 90982-08039 |
MS8#,95,RS80 L=110,FOR BATTERY |
1 | ||
| 90982-08108 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.3P |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08004 |
MS8#,95,RS80 L=110,FOR BATTERY 1.25B |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
2 | ||
| 90982-08042 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.85R |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
3 | ||
| 90982-08039 |
MS8#,95,RS80 L=110,FOR BATTERY |
1 | ||
| 90982-08108 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.3P |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08004 |
MS8#,95,RS80 L=110,FOR BATTERY 1.25B |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
2 | ||
| 90982-08042 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.85R |
1 | ||
| 90982-08036 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.5G |
3 | ||
| 90982-08039 |
MS8#,95,RS80 L=110,FOR BATTERY |
1 | ||
| 90982-08108 |
MS8#,95,RS80 L=100,FOR RELAY BOX 0.3P |
2 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82261-30020 |
RS80 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 93540-55012 | ||||
| 93580-55012 | ||||
| 94523-00500 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-30180 |
MS8#,95,RS80..4F,4H |
1 | ||
| 82310-30180 |
MS8#,95,RS80..RHD..(4F,4H) |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-30180 |
MS8#,95,RS80..4F,4H |
1 | ||
| 82310-30180 |
MS8#,95,RS80..RHD..(4F,4H) |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-30180 |
MS8#,95,RS80..4F,4H |
1 | ||
| 82310-30180 |
MS8#,95,RS80..RHD..(4F,4H) |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-30180 |
MS8#,95,RS80..4F,4H |
1 | ||
| 82310-30180 |
MS8#,95,RS80..RHD..(4F,4H) |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-30180 |
MS8#,95,RS80..4F,4H |
1 | ||
| 82310-30180 |
MS8#,95,RS80..RHD..(4F,4H) |
1 | ||
| Common parts | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

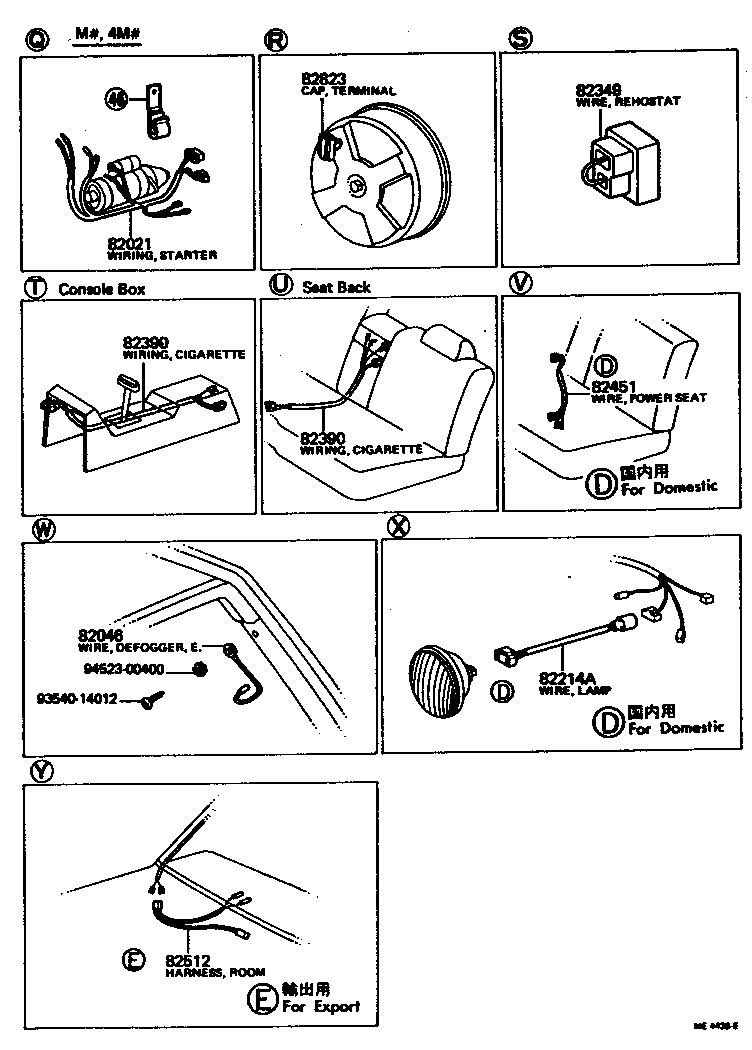

| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82216-30061 |
MS85,95,RS80..BTP,DLX,SAL REAR DEFOGGER L/RADIO |
1 | ||
| 82216-30061 |
MS85,95,RS80 |
1 | ||
| 82216-30061 |
MS85,RS80..BTP FRONT WINDOW ANTENNA |
1 | ||
| 82349 - WIRE, LIGHT CONTROL RHEOSTAT | ||||
| 82349-30010 |
MS8#,RS80..BTP,DLX,STD |
1 | ||
| 82390 - WIRE ASSY, CIGARETTE LIGHTER | ||||
| 82390-30200 |
MS8#,95,RS80..3FC,4F FOR CONSOLE BOX |
1 | ||
| 82390-30231 |
MS8#,95,RS80..4F |
1 | ||
| 82390-30232 |
MS8#,95,RS80..4F |
1 | ||
| 82390 - WIRE ASSY, CIGARETTE LIGHTER | ||||
| 82390-30200 |
MS8#,95,RS80..3FC,4F FOR CONSOLE BOX |
1 | ||
| 82390-30231 |
MS8#,95,RS80..4F |
1 | ||
| 82390-30232 |
MS8#,95,RS80..4F |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 94523-00400 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

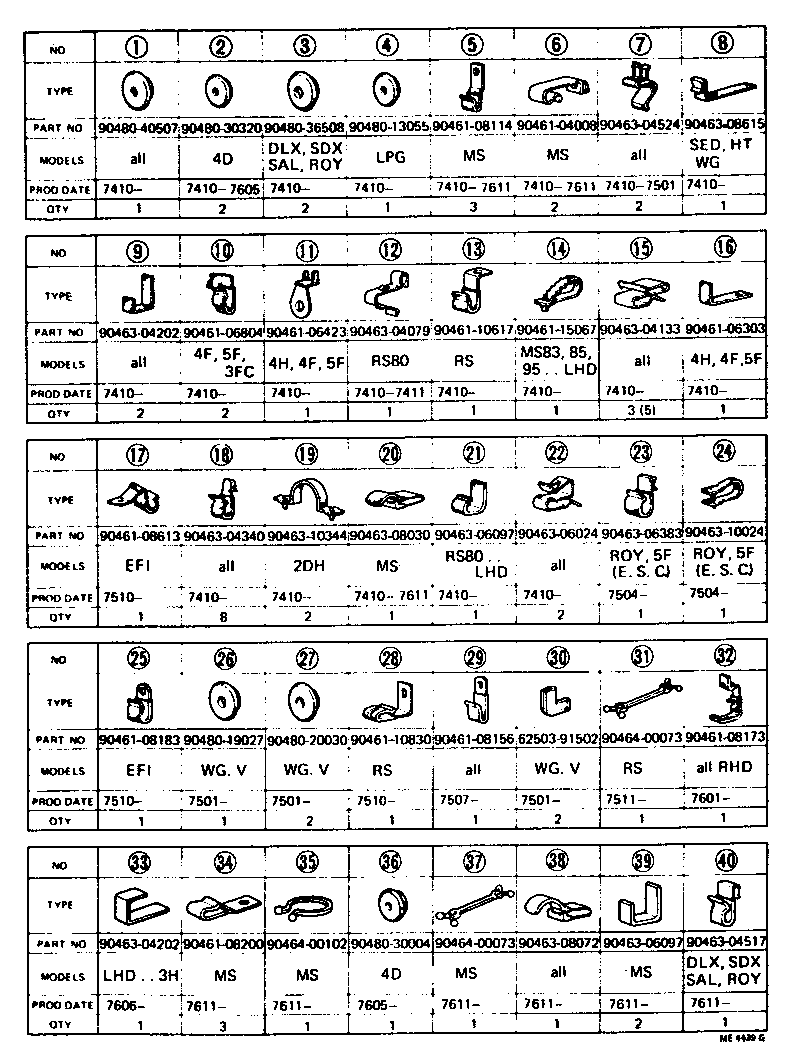

| Common parts | ||||
| 62503-91502 | ||||
| 90461-04008 | ||||
| 90461-06303 | ||||
| 90461-06423 | ||||
| 90461-06804 | ||||
| 90461-08114 | ||||
| 90461-08156 | ||||
| 90461-08173 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08613 | ||||
| 90461-10617 | ||||
| 90461-10830 | ||||
| 90461-15067 | ||||
| 90463-04079 | ||||
| 90463-04133 | ||||
| 90463-04202 | ||||
| 90463-04340 | ||||
| 90463-04517 | ||||
| 90463-04524 | ||||
| 90463-06024 | ||||
| 90463-06097 | ||||
| 90463-06383 | ||||
| 90463-08030 | ||||
| 90463-08072 | ||||
| 90463-08615 | ||||
| 90463-10024 | ||||
| 90463-10344 | ||||
| 90464-00073 | ||||
| 90464-00102 | ||||
| 90480-13055 | ||||
| 90480-19027 | ||||
| 90480-20030 | ||||
| 90480-30004 | ||||
| 90480-30320 | ||||
| 90480-36508 | ||||
| 90480-40507 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

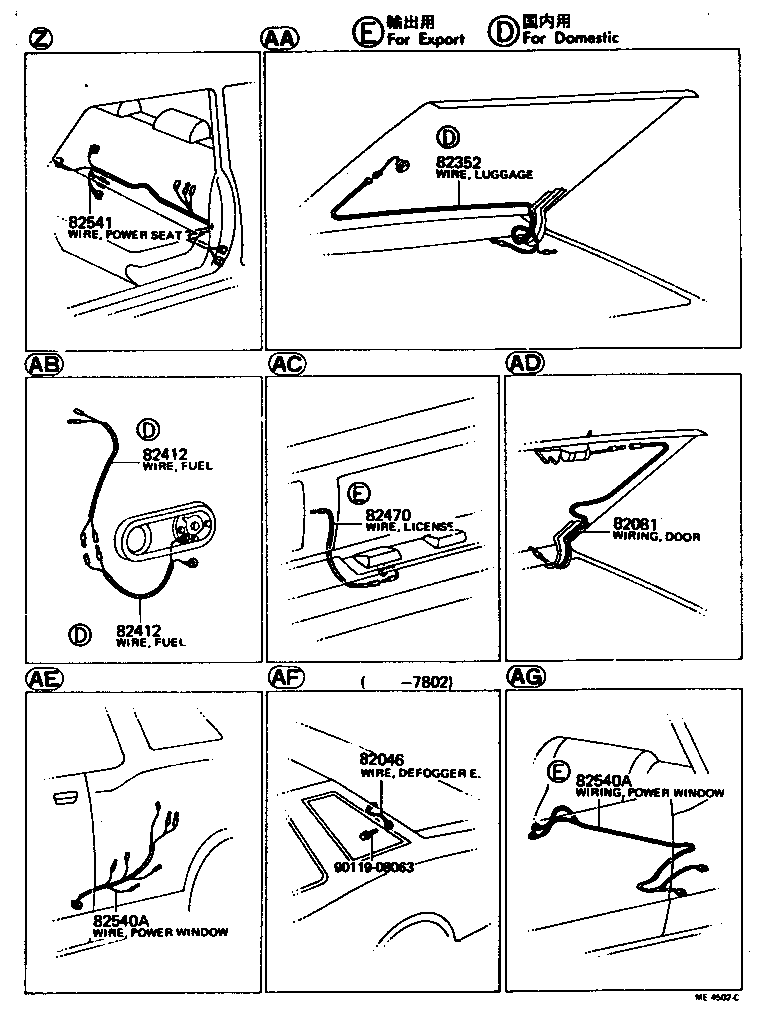

| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82216-30061 |
MS85,95,RS80..BTP,DLX,SAL REAR DEFOGGER L/RADIO |
1 | ||
| 82216-30061 |
MS85,95,RS80 |
1 | ||
| 82216-30061 |
MS85,RS80..BTP FRONT WINDOW ANTENNA |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82214-30030 |
MS85,95,RS80 |
2 | ||
| Common parts | ||||
| 90119-08063 | ||||
(7611-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22220 | ||||
| 90461-06032 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08218 | ||||
| 90463-04202 | ||||
| 90463-04517 | ||||
| 90463-04573 | ||||
| 90463-08243 | ||||
| 90463-15067 | ||||
| 90463-15454 | ||||
(7410-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

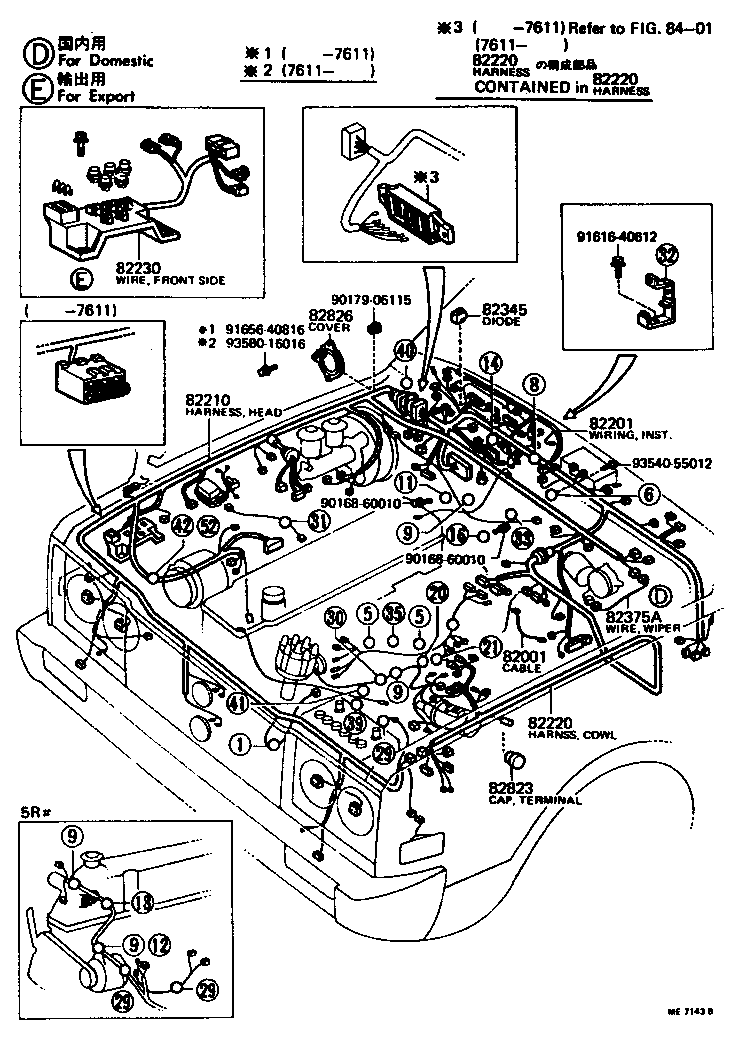

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
MS85,95,RS80 L=280,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07097 |
MS8#,95,RS80 L=270,HOOD-COWL PANEL |
1 | ||
| 90980-07053 |
MS8#,95,RS80 L=350,TRANSMISSION |
1 | ||
| 90980-07061 |
MS8#,95,RS80 L=300,UNDER COVER-TIRE APRON |
2 | ||
| 90980-07005 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07120 |
MS8#,95,RS80 L=380,TRANSMISSION |
1 | ||
| 90980-07098 |
MS8#,95,RS80 L=270,HOOD HINGE-COWL PANEL |
2 | ||
| 82031-30140 |
MS8#,95,RS80 IGNITION COIL-DISTRIBUTOR |
1 | ||
| 90980-07053 |
MS8#,95,RS80..MTM L=350,TRANSMISSION |
1 | ||
| 90980-07104 |
MS8#,95,RS80 L=630,HOOD-COWL-ENGINE |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-30010 |
MS8#,95,RS80 W/REAR WINDOW DEFOGGER |
1 | ||
| 82201-30060 |
MS85,88,RS80..BTP,STD |
1 | ||
| 82201-30280 |
MS85,88,RS80..BTP,STD W/REAR DEFOGGER |
1 | ||
| 82201-30010 |
MS85,88,RS80..BTP,STD W/REAR WINDOW DEFOGGER |
1 | ||
| 82201-31060 |
MS85,88,RS80..BTP,STD W/HEATER OR BOOST VENTILATOR |
1 | ||
| 82201-30270 |
RS80..GEN;RS80..4F..EUR;MS85..3FC..BTP..ARL;MS85,88..(BTP,STD)..(EUR,GEN) |
1 | ||
| 82201-30281 |
RS80 RR.DEFOGGER HEATER BOOST VENT. |
1 | ||
| 82201-30271 |
RS80..GEN |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82020-30100 |
RS80..RHD |
1 | ||
| 82020-30102 |
RS80..RHD |
1 | ||
| 82020-30101 |
RS80..RHD |
1 | ||
| 82020-30103 |
RS80..RHD |
1 | ||
| 82020-30105 |
RS80..RHD |
1 | ||
| 82020-30106 |
RS80..RHD |
1 | ||
| 82020-30107 |
RS80..RHD |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-30340 |
RS80..RHD |
1 | ||
| 82220-30341 |
RS80..RHD |
1 | ||
| 82220-30342 |
RS80..RHD |
1 | ||
| 82220-30343 |
RS80..RHD |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-30340 |
RS80..RHD |
1 | ||
| 82220-30341 |
RS80..RHD |
1 | ||
| 82220-30342 |
RS80..RHD |
1 | ||
| 82220-30343 |
RS80..RHD |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-30340 |
RS80..RHD |
1 | ||
| 82220-30341 |
RS80..RHD |
1 | ||
| 82220-30342 |
RS80..RHD |
1 | ||
| 82220-30343 |
RS80..RHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
MS8#,95,RS80 |
4 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-30070 |
MS8#,95,RS80..RHD |
1 | ||
| 82817-30071 |
MS8#,95,RS80 |
1 | ||
| Common parts | ||||
| 90168-60010 | ||||
| 90179-06115 | ||||
| 91616-40612 | ||||
| 91656-40816 | ||||
| 93540-55012 | ||||
| 93580-16016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
