RS80R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 5R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)

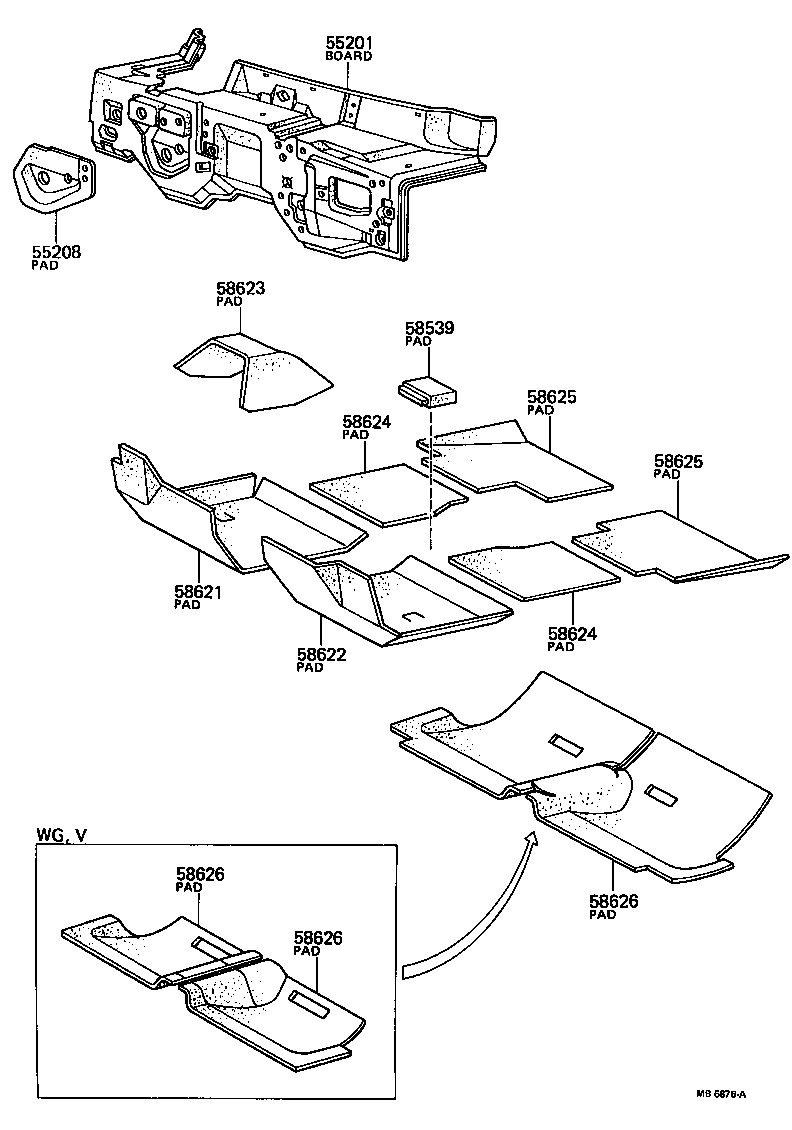

Click highlighted areas on diagram

diagram 55201 55208 58539 58621 58622 58623 58624 58624 58625 58625 58626 58626 58626
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55210-30130

MS85,95,RS80..RHD

FOR W/HEATER,W/COOLER

 1
55210-30150

MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)

FOR W/BOOST VENTILATOR

 1
55210-30120

MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)

FOR W/HEATER,L/COOLER

 1
55210-30121

MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)

FOR W/HEATER,L/COOLER

 1
55210-30151

MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)

FOR W/BOOST VENTILATOR

 1
55210-30131

MS85,95,RS80..RHD

FOR W/HEATER,W/COOLER

 1
55210-30140

MS85,88,RS80..RHD..(BTP,STD)

FOR L/HEATER,L/COOLER

 1
55210-30141

MS85,88,RS80..RHD..(BTP,STD)

FOR L/HEATER,L/COOLER

 1
55208 - PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1
55213-30100

MS8#,95,RS80..RHD..(3FC,4F)

 1
55213-30131

MS85,95,RS80..RHD

FOR W/COOLER

 1
55213-30101

MS8#,95,RS80..RHD..(3FC,4F)

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-30080

MS83,85,95,RS80

FOR CARPET

 1
58621-30090

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58622-30070

MS83,85,95,RS80

FOR CARPET

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-30130

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58623-30120

MS83,85,95,RS80

FOR CARPET

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-30090

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58624-30080

MS83,85,95,RS80

FOR CARPET

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-30090

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58624-30080

MS83,85,95,RS80

FOR CARPET

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58627-30030

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58628-30010

MS83,85,95,RS80

LH.

 1
58627-30010

MS83,85,95,RS80

RH.

 1
58627-30010

MS83,85,95,RS80

FOR CARPET

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58627-30030

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58628-30010

MS83,85,95,RS80

LH.

 1
58627-30010

MS83,85,95,RS80

RH.

 1
58627-30010

MS83,85,95,RS80

FOR CARPET

 2
58626 - PAD, FLOOR SILENCER, REAR
58657-30030

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58657-30020

MS85,95,RS80..BTP,DLX,SAL

FOR CARPET

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-30030

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58657-30020

MS85,95,RS80..BTP,DLX,SAL

FOR CARPET

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-30030

RS80..4F..EUR;MS85,RS80..BTP..GEN

 1
58657-30020

MS85,95,RS80..BTP,DLX,SAL

FOR CARPET

 1
