RS80R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 5R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)MS85,95,RS80

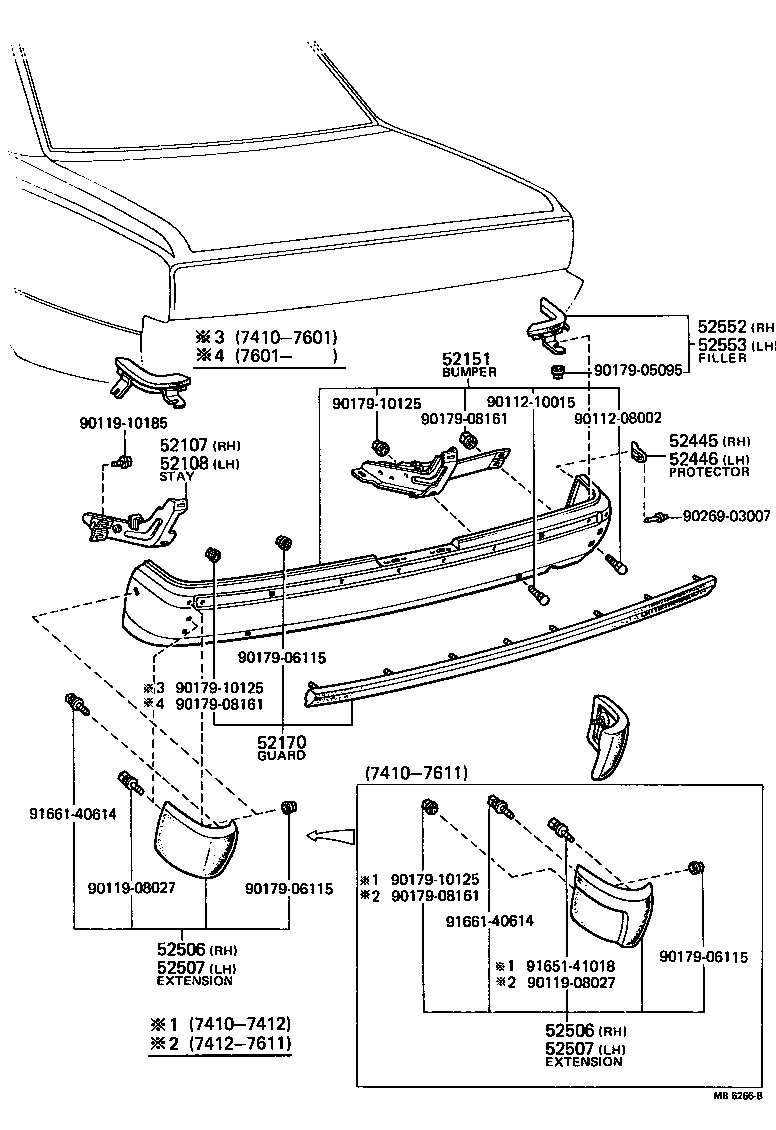

Click highlighted areas on diagram

diagram 52107 52108 52151 52170 52445 52446 52506 52506 52507 52507 52552 52553 9011208002 9011210015 9011908027 9011908027 9011910185 9017905095 9017906115 9017906115 9017906115 9017908161 9017908161 9017908161 9017910125 9017910125 9017910125 9026903007 9165141018 9166140614 9166140614
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52013-30070

MS85,RS80

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52014-30070

MS85,RS80

 1
52151 - BUMPER ASSY, REAR
52151-39085

MS85..3FC..ARL;MS85,95,RS80..GEN;MS85..4F..SAL..ARL

FOR BUMPER GUARD

 1
52151-39075

MS85,95,RS80..BTP,DLX

 1
52151-39077

MS85,RS80..BTP,DLX

 1
52151-39087

MS85..3FC..ARL;MS85,RS80..EUR,GEN;MS85..4F..SAL..ARL

FOR BUMPER GUARD

 1
52170 - GUARD SUB-ASSY, REAR BUMPER
52055-39015

MS85,95,RS80

 1
52055-39016

MS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95,RS80..EUR,GEN

 1
52445 - PROTECTOR, REAR BUMPER, RH
52541-30011

MS85,95,RS80

 1
52541-30010

MS85,95,RS80

 1
52446 - PROTECTOR, REAR BUMPER, LH
52541-30011

MS85,95,RS80

 1
52541-30010

MS85,95,RS80

 1
52506 - EXTENSION SUB-ASSY, REAR BUMPER, RH
52462-39015

MS85,95,RS80

 1
52462-39016

MS85,95,RS80

 1
52506 - EXTENSION SUB-ASSY, REAR BUMPER, RH
52462-39015

MS85,95,RS80

 1
52462-39016

MS85,95,RS80

 1
52507 - EXTENSION SUB-ASSY, REAR BUMPER, LH
52463-39015

MS85,95,RS80

 1
52463-39016

MS85,95,RS80

 1
52507 - EXTENSION SUB-ASSY, REAR BUMPER, LH
52463-39015

MS85,95,RS80

 1
52463-39016

MS85,95,RS80

 1
52552 - FILLER, REAR BUMPER, RH
52552-39015

MS85,95,RS80

 1
52553 - FILLER, REAR BUMPER, LH
52553-39015

MS85,95,RS80

 1
Common parts
90112-08002
90112-10015
90119-08027
90119-10185
90179-05095
90179-06115
90179-08161
90179-10125
90269-03007
91651-41018
91661-40614
