RS80R-KB (1974)
Toyota Crown
Production
Oct 1974
-
Aug 1979
Engine
5R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7410-7908)

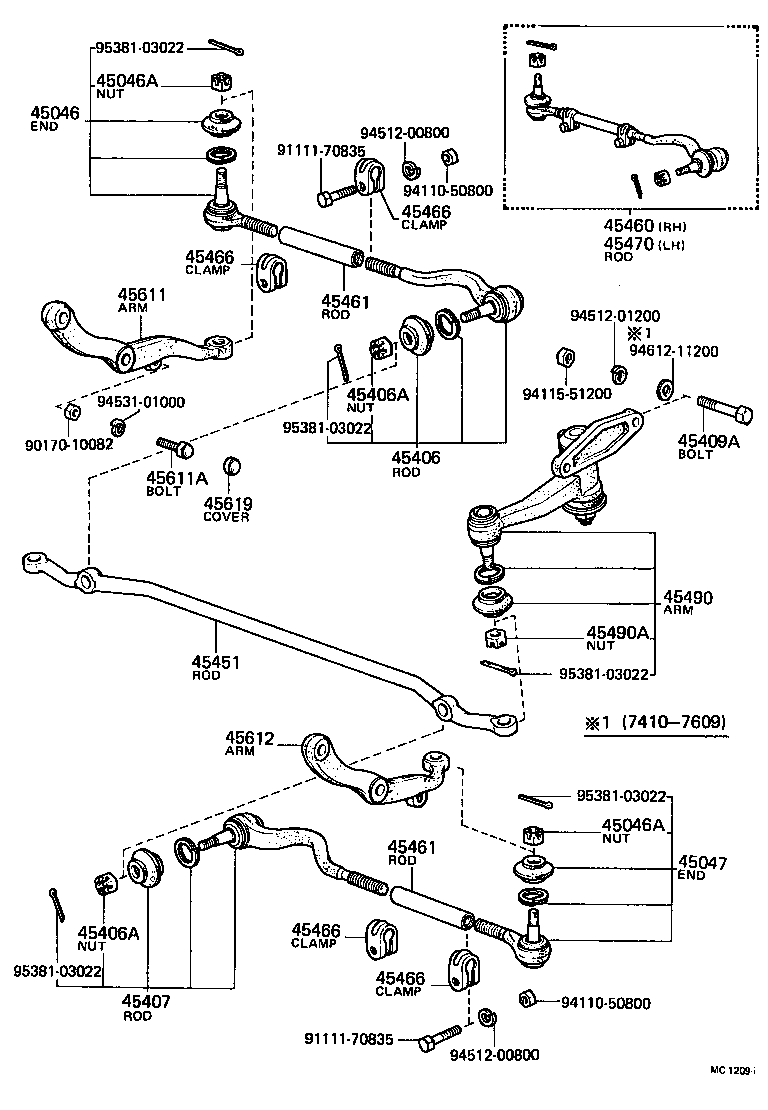

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39075 |
MS8#,95,RS80 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
MS8#,95,RS80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
MS8#,95,RS80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39075 |
MS8#,95,RS80 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39075 |
MS8#,95,RS80 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
MS8#,95,RS80 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
MS8#,95,RS80 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39075 |
MS8#,95,RS80 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12003 |
MS8#,95,RS80 L=91.5 |
1 | ||
| 90105-12004 |
MS8#,95,RS80 L=101 |
1 | ||
| 90101-12478 |
MS8#,95,RS80 L=103 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-30100 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) |
1 | ||
| 45451-30100 |
MS83,85,95,RS80..RHD..(BTP,DLX) |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39075 |
MS8#,95,RS80 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30010 |
MS8#,95,RS80 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30010 |
MS8#,95,RS80 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
MS8#,95,RS80 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
MS8#,95,RS80 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
MS8#,95,RS80 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
MS8#,95,RS80 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39075 |
MS8#,95,RS80 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39145 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
MS8#,95,RS80 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-30080 |
MS8#,95,RS80 |
1 | ||
| 45611-30070 |
MS8#,95,RS80 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10006 |
MS8#,95,RS80 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-30070 |
MS8#,95,RS80 |
1 | ||
| 45612-30080 |
MS8#,95,RS80 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14010 |
MS8#,95,RS80 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91111-70835 | ||||
| 94110-50800 | ||||
| 94115-51200 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 94612-11200 | ||||
| 95381-03022 | ||||
