RS110R-SEKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

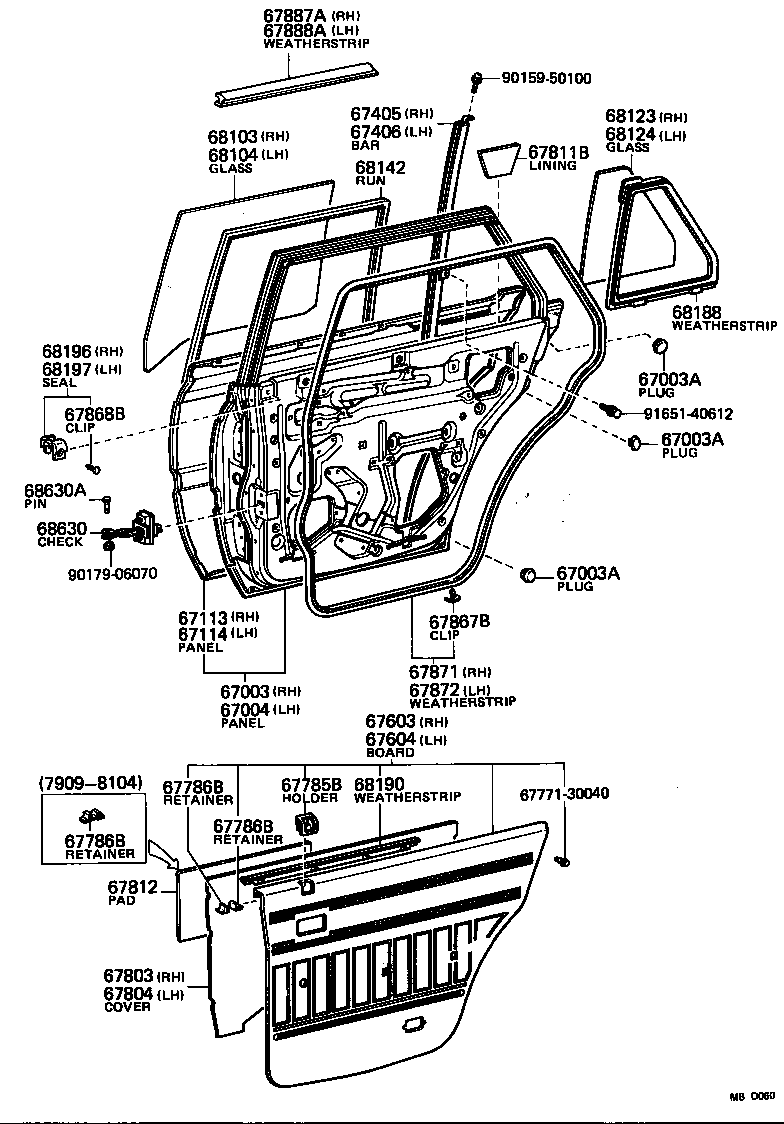

Click highlighted areas on diagram

diagram 67003 67003A 67003A 67003A 67004 67113 67114 67405 67406 67603 67604 6777130040 67785B 67786B 67786B 67786B 67803 67804 67811B 67812 67867B 67868B 67871 67872 67887A 67888A 68103 68104 68123 68124 68142 68188 68190 68196 68197 68630 68630A 9015950100 9017906070 9165140612
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-30140

LS110,RS110

 1
67003-30140

LS110,MS11#,RS110..BTP,DLX

 1
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90950-01006

LS110,MS11#,RS110..SED

OD=14

 2
90950-01130

LS110,MS11#,RS110..SED

OD=27

 2
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90950-01006

LS110,MS11#,RS110..SED

OD=14

 2
90950-01130

LS110,MS11#,RS110..SED

OD=27

 2
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90950-01006

LS110,MS11#,RS110..SED

OD=14

 2
90950-01130

LS110,MS11#,RS110..SED

OD=27

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-30140

LS110,MS11#,RS110..BTP,DLX

 1
67004-30140

LS110,RS110

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-30070

LS110,MS11#,RS110

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-30080

LS110,MS11#,RS110

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-30060

LS110,MS11#,RS110

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-30050

LS110,MS11#,RS110

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3059004

LS110,MS11#,RS110..SED..BTP

BLUE,BLUE,TRIM8#

 1
67630-3059005

LS110,MS11#,RS110..SED..BTP

GREIGE,BEIGE,TRIM4#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3059004

LS110,MS11#,RS110..SED..BTP

BLUE,BLUE,TRIM8#

 1
67640-3059005

LS110,MS11#,RS110..SED..BTP

GREIGE,BEIGE,TRIM4#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67785-3004004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 2
67785-3004005

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 2
67785-3004002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-30030

LS110,MS11#,RS110

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-30030

LS110,MS11#,RS110

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-30030

LS110,MS11#,RS110

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-30110

LS110,MS11#,RS110..BTP,DLX

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-30110

LS110,MS11#,RS110..BTP,DLX

 1
67812 - PAD, REAR DOOR SILENCER
67811-12040

LS110,MS11#,RS110

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-30040

LS110,MS11#,RS110

 42
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868-30030

LS110,MS11#,RS110

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-30080

LS110,MS11#,RS110

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-30080

LS110,MS11#,RS110

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-30190

LS110,MS11#,RS110

*TT,T=4.0

 1
68113-30180

LS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX

*TEM,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-30110

LS110,MS11#,RS110

*TT,T=4.0

 1
68114-30100

LS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX

*TEM,T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-30170

LS110,MS11#,RS110

*TT,T=4.0

 1
68123-30160

LS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX

*TEM,T=4.0

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-30100

LS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX

*TEM,T=4.0

 1
68124-30110

LS110,MS11#,RS110

*TT,T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-30080

LS110,MS11#,RS110

VINYL CHLORIDE

 2
68142-30060

LS110,MS11#,RS110

RUBBER

 2
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-30060

LS110,MS11#,RS110

RH

 1
68189-30040

LS110,MS11#,RS110

LH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-30100

LS110,MS11#,RS110

 2
68196 - SEAL, REAR DOOR BELT, RH
68196-30020

LS110,MS11#,RS110

 1
68197 - SEAL, REAR DOOR BELT, LH
68197-30020

LS110,MS11#,RS110

 1
68630 - CHECK ASSY, REAR DOOR
68630-30010

LS110,MS11#,RS110

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-30010

LS110,MS11#,RS110

 2
Common parts
67771-30040
90159-50100
90179-06070
91651-40612
