RS110R-SEKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

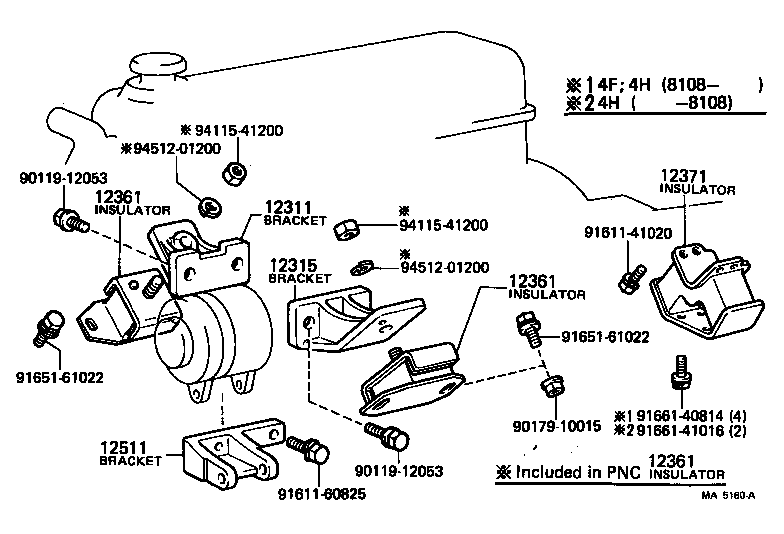

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011912053 9011912053 9017910015 9161141020 9161160825 9165161022 9165161022 9166140814 9166141016 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-44010

5R..RS110

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-44010

5R..RS110

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49016

5R..RS110

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49016

5R..RS110

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

5R..RS110..4F

 1
12371-44020

5R..RS110..4F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-40020

5R..RS110

 1
Common parts
90119-12053
90179-10015
91611-41020
91611-60825
91651-61022
91661-40814
91661-41016
94115-41200
94512-01200
