RS110R-SEKBS (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
5R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )5R

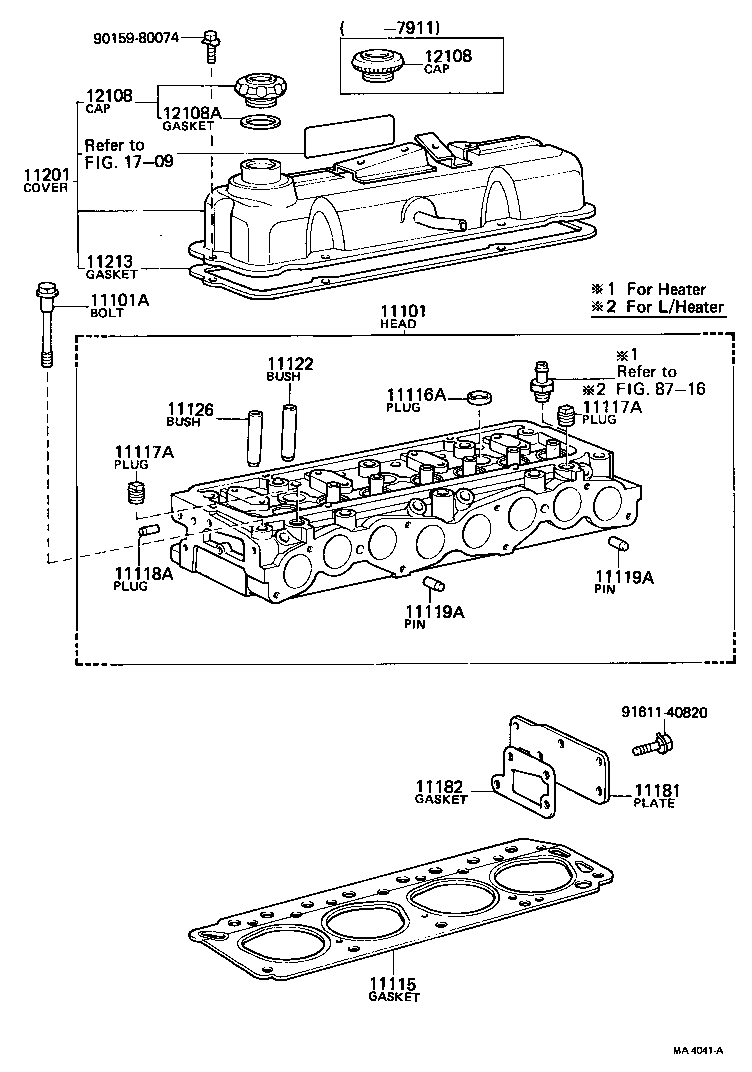

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49167 |
5R..RS110 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02048 |
5R..RS110 *12-1.25PX107-24 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-44024 |
5R..RS110 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
5R..RS110 OD=25 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54004 |
5R..RS110 |
2 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54004 |
5R..RS110 |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90334-08004 |
5R..RS110 L=3.5,OD=6.7 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
5R..RS110 L=23,OD=8,L=23,OD=8 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
5R..RS110 L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-44011 |
5R..RS110 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-44011 |
5R..RS110 STD |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-44010 |
5R..RS110 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-44010 |
5R..RS110 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-49155 |
5R..RS110 |
1 | ||
| 11201-49156 |
5R..RS110 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-44010 |
5R..RS110 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
5R..RS110 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
5R..RS110 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
5R..RS110 |
1 | ||
| Common parts | ||||
| 90159-80074 | ||||
| 91611-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8716 | ||||
