RS110R-SEJBS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1982
Engine
5R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

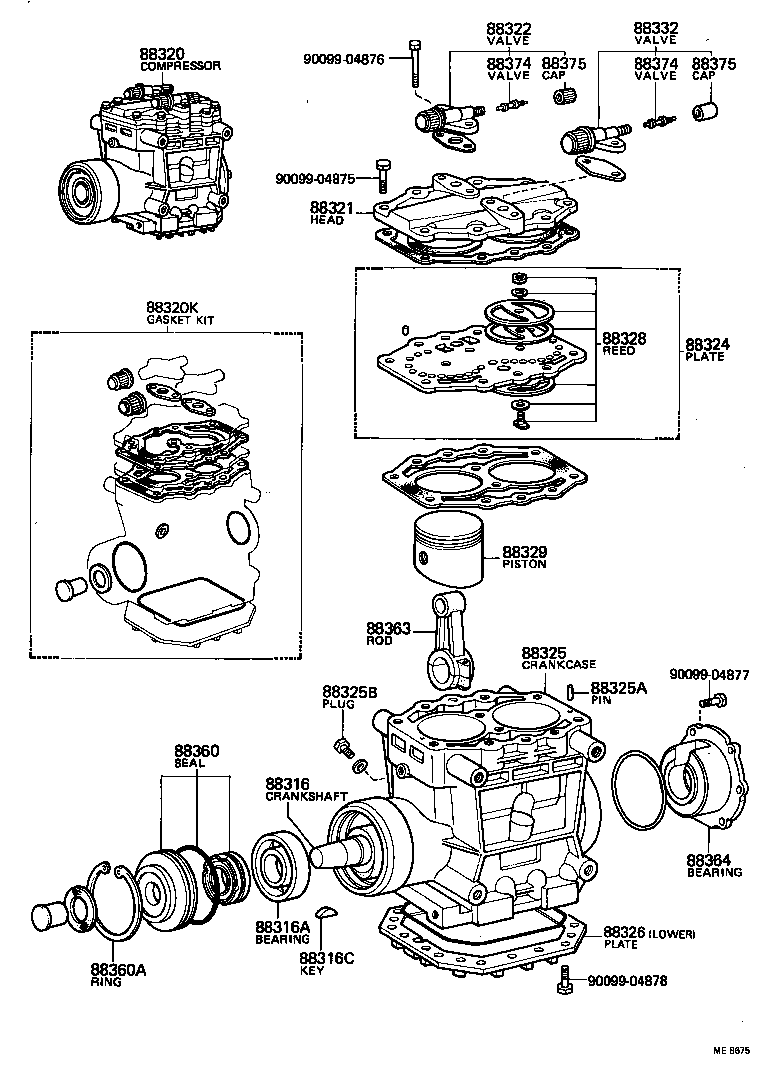

(7909- )RS110
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20050 |
RS110 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-60010 |
RS110 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
RS110 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30280 |
RS110..RHD |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-30050 |
RS110 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-60010 |
RS110 |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30300 |
RS110 |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-30270 |
RS110 |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-20090 |
RS110 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08060 |
RS110 |
2 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-60010 |
RS110 |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-60011 |
RS110 |
1 | ||
| 88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88307-22020 |
RS110 |
2 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-60010 |
RS110 |
2 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-30310 |
RS110 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-20060 |
RS110 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
RS110 |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-60010 |
RS110 |
2 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-60030 |
RS110 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LS110,MS11#,RS110 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LS110,MS11#,RS110 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
LS110,MS11#,RS110 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
LS110,MS11#,RS110 |
2 | ||
| Common parts | ||||
| 90099-04875 | ||||
| 90099-04876 | ||||
| 90099-04877 | ||||
| 90099-04878 | ||||

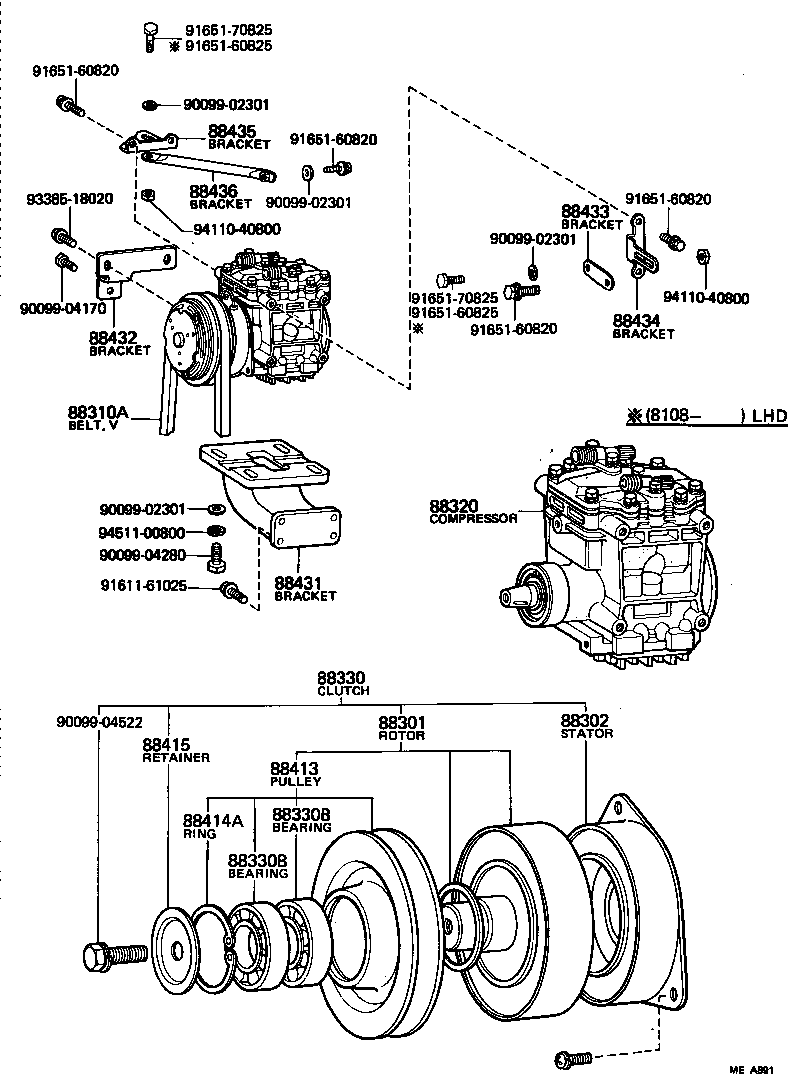

(7909- )RS110
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-30280 |
RS110 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30300 |
RS110 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99313-51070 |
RS110 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30280 |
RS110..RHD |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-30310 |
RS110 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RS110 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RS110 |
2 | ||
| 88413 - PULLEY SUB-ASSY, MAGNET CLUTCH | ||||
| 88402-30260 |
RS110 |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90096-90005 |
RS110 |
1 | ||
| 88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1 | ||||
| 88415-12020 |
RS110 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88432-30350 |
RS110 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88688-30410 |
RS110 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88434-30250 |
RS110 |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-30260 |
RS110 |
1 | ||
| 88435 - BRACKET, COMPRESSOR MOUNTING, NO.5 | ||||
| 88434-30280 |
RS110 |
1 | ||
| 88436 - BRACKET, COMPRESSOR MOUNTING, NO.6 | ||||
| 88434-30290 |
RS110 |
1 | ||
| Common parts | ||||
| 90099-02301 | ||||
| 90099-04170 | ||||
| 90099-04280 | ||||
| 90099-04522 | ||||
| 91611-61025 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 91651-70825 | ||||
| 93385-18020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
