RS110R-SEJBS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1982
Engine
5R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )BTP,DLX,SAL

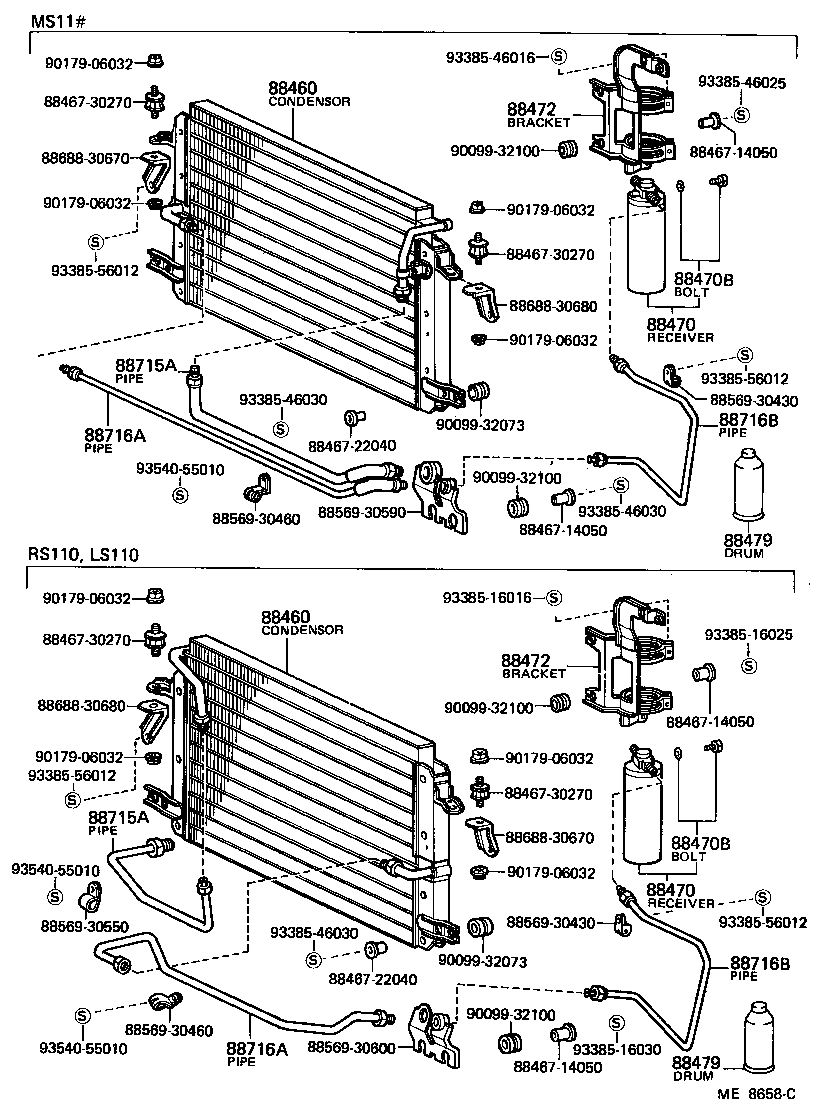

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30440 |
LS110,RS110 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30440 |
LS110,RS110 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
LS110,RS110 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
LS110,RS110 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LS110,MS11#,RS110 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LS110,MS11#,RS110 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-30250 |
LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-30250 |
LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02002 |
LS110,MS11#,RS110 300G |
3 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02002 |
LS110,MS11#,RS110 300G |
3 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30310 |
LS110,RS110 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30310 |
LS110,RS110 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30450 |
LS110,RS110 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30450 |
LS110,RS110 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30300 |
LS110,MS11#,RS110 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30300 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22040 | ||||
| 88467-30270 | ||||
| 88569-30430 | ||||
| 88569-30460 | ||||
| 88569-30550 | ||||
| 88569-30590 | ||||
| 88569-30600 | ||||
| 88688-30670 | ||||
| 88688-30680 | ||||
| 90099-32073 | ||||
| 90099-32100 | ||||
| 90179-06032 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-16030 | ||||
| 93385-46016 | ||||
| 93385-46025 | ||||
| 93385-46030 | ||||
| 93385-56012 | ||||
| 93540-55010 | ||||
(7909- )RS110

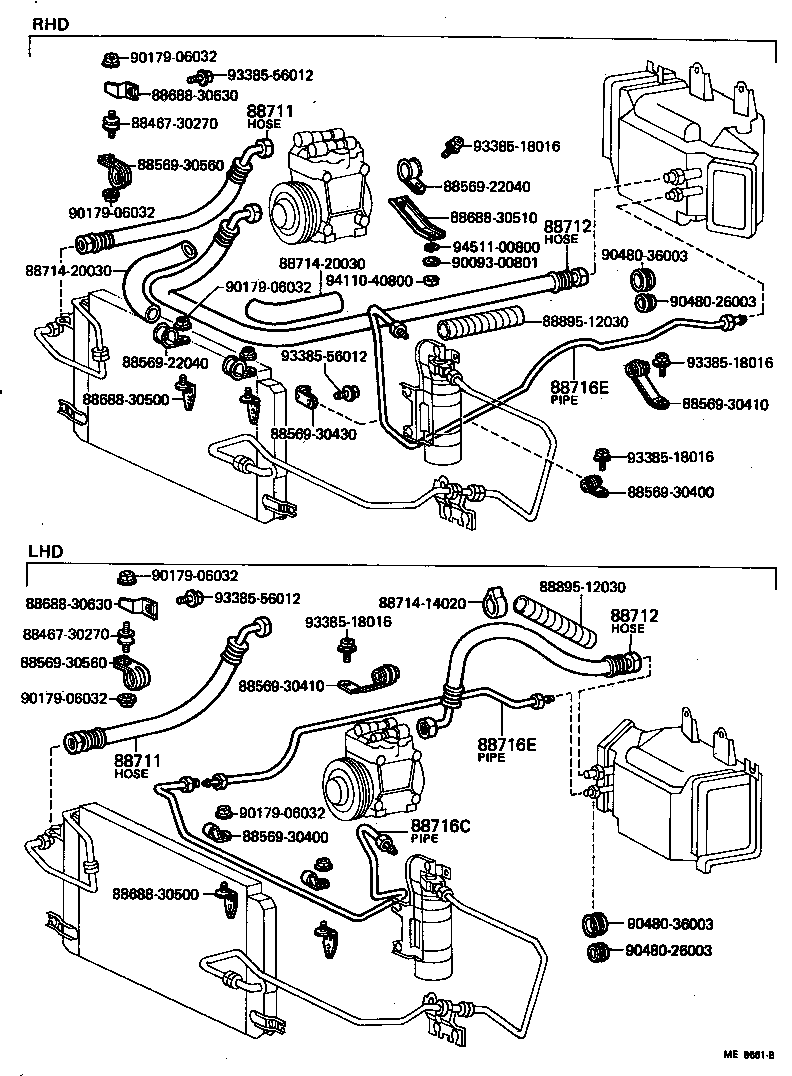

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30500 |
RS110 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30500 |
RS110 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30560 |
RS110..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30560 |
RS110..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30510 |
LS110,RS110..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30510 |
LS110,RS110..RHD |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88569-22040 | ||||
| 88569-30400 | ||||
| 88569-30410 | ||||
| 88569-30430 | ||||
| 88569-30560 | ||||
| 88688-30500 | ||||
| 88688-30510 | ||||
| 88688-30630 | ||||
| 88714-14020 | ||||
| 88714-20030 | ||||
| 88895-12030 | ||||
| 90093-00801 | ||||
| 90179-06032 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-18016 | ||||
| 93385-56012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
