RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

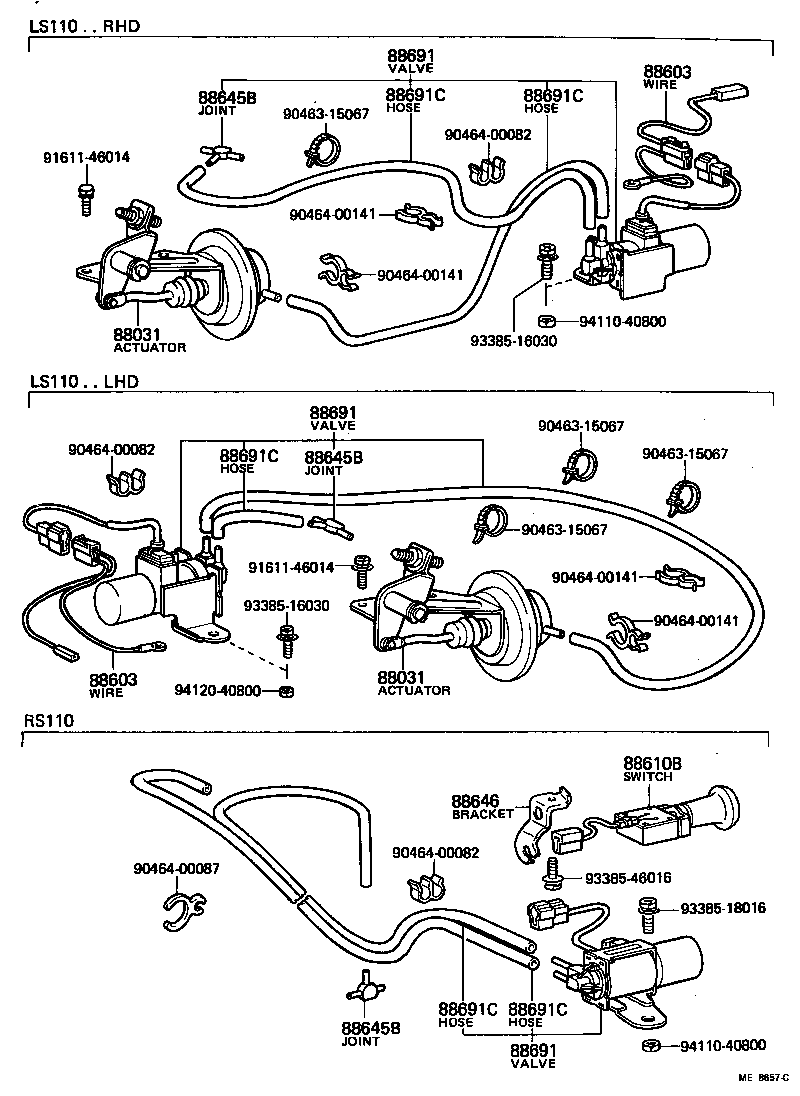

(7909- )LS110,RS110

Click highlighted areas on diagram

diagram 88031 88031 88603 88603 88610B 88645B 88645B 88645B 88646 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 9046315067 9046315067 9046315067 9046315067 9046400082 9046400082 9046400082 9046400087 9046400141 9046400141 9046400141 9046400141 9161146014 9161146014 9338516030 9338516030 9338518016 9338546016 9411040800 9411040800 9412040800
Part # Description Qty Price
Common parts
90463-15067
90464-00082
90464-00087
90464-00141
91611-46014
93385-16030
93385-18016
93385-46016
94110-40800
94120-40800

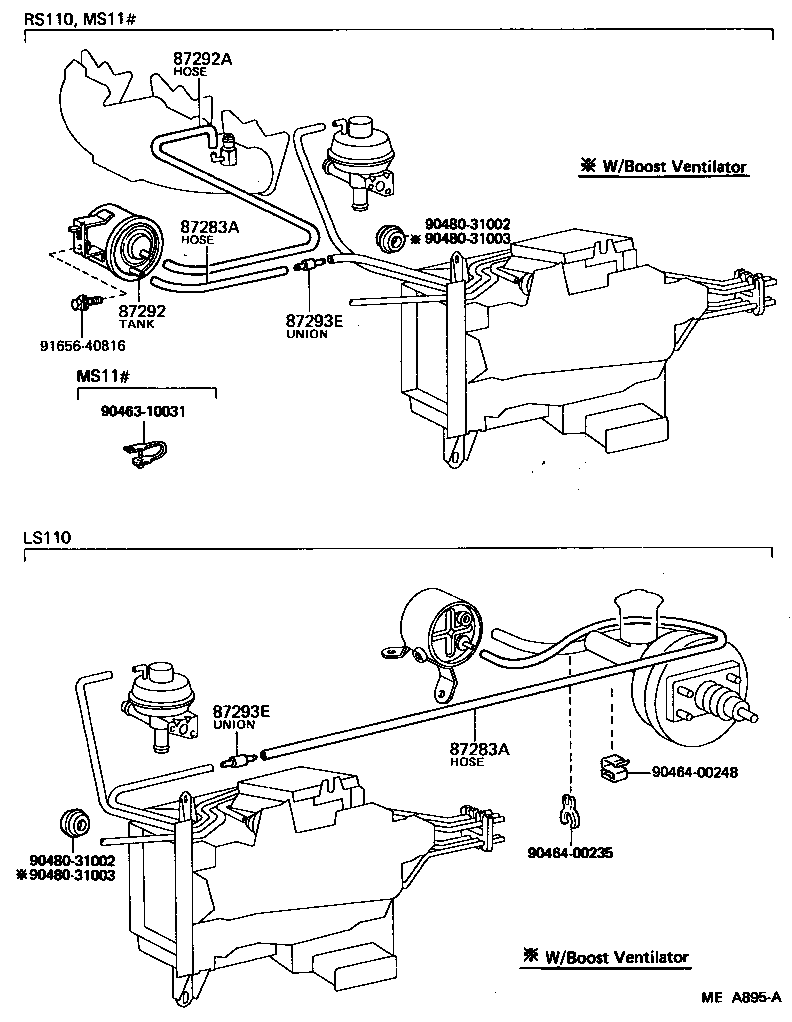

(7909- )BTP,DLX,SAL

Click highlighted areas on diagram

diagram 87283A 87283A 87292 87292A 87293E 87293E 9046310031 9046400235 9046400248 9048031002 9048031002 9048031003 9048031003 9165640816
Part # Description Qty Price
87283A - HOSE, NO.1
90445-06004

MS11#,RS110

L=500

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110

L=500

 1
87292 - TANK, VACUUM
87292-30270

MS11#,RS110..BTP,DLX,SAL

 1
87292A - HOSE, VACUUM TANK
90445-06001

MS11#,RS110..RHD

L=700

 1
90445-06026

RS110..RHD

L=900

 1
87293E - UNION, HOSE
90405-04001

LS110,MS11#,RS110..BTP,DLX,SAL

 1
87293E - UNION, HOSE
90405-04001

LS110,MS11#,RS110..BTP,DLX,SAL

 1
Common parts
90463-10031
90464-00235
90464-00248
90480-31002
90480-31003
91656-40816
