RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )RS110

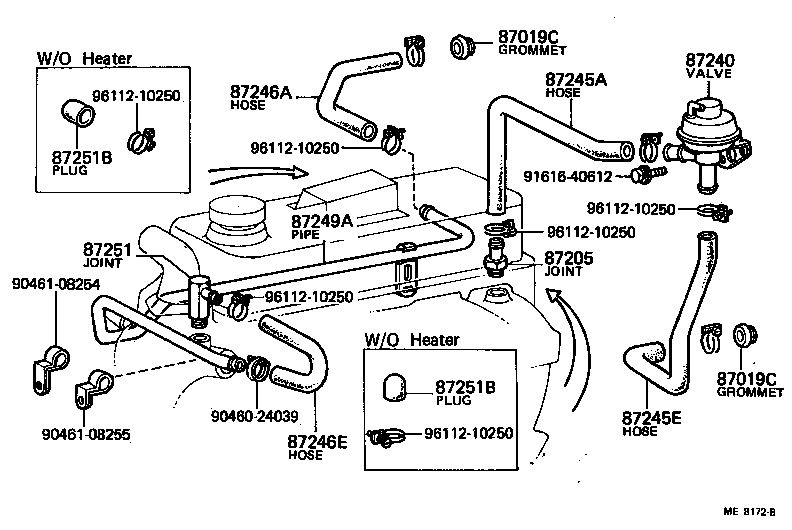

Click highlighted areas on diagram

diagram 87019C 87019C 87205 87240 87245A 87245E 87246A 87246E 87249A 87251 87251B 87251B 9046024039 9046108254 9046108255 9161640612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-31007

LS110,MS11#,RS110

HEATER PIPE

 2
87019C - GROMMET, HEATER HOSE
90480-31007

LS110,MS11#,RS110

HEATER PIPE

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LS110,MS11#,RS110

W/HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-30310

RS110..BTP,DLX

 1
87245A - HOSE, HEATER WATER, INLET A
87245-30690

RS110..BTP,DLX

 1
87245E - HOSE, HEATER WATER, INLET E
87245-30650

LS110,MS11#,RS110..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-30470

RS110..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87247-30121

RS110..BTP,DLX

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-30123

RS110..BTP,DLX

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87252-30010

RS110..BTP,DLX

 1
Common parts
90460-24039
90461-08254
90461-08255
91616-40612
96112-10250
