Toyota Crown RS110 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982

Engine 5R

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty

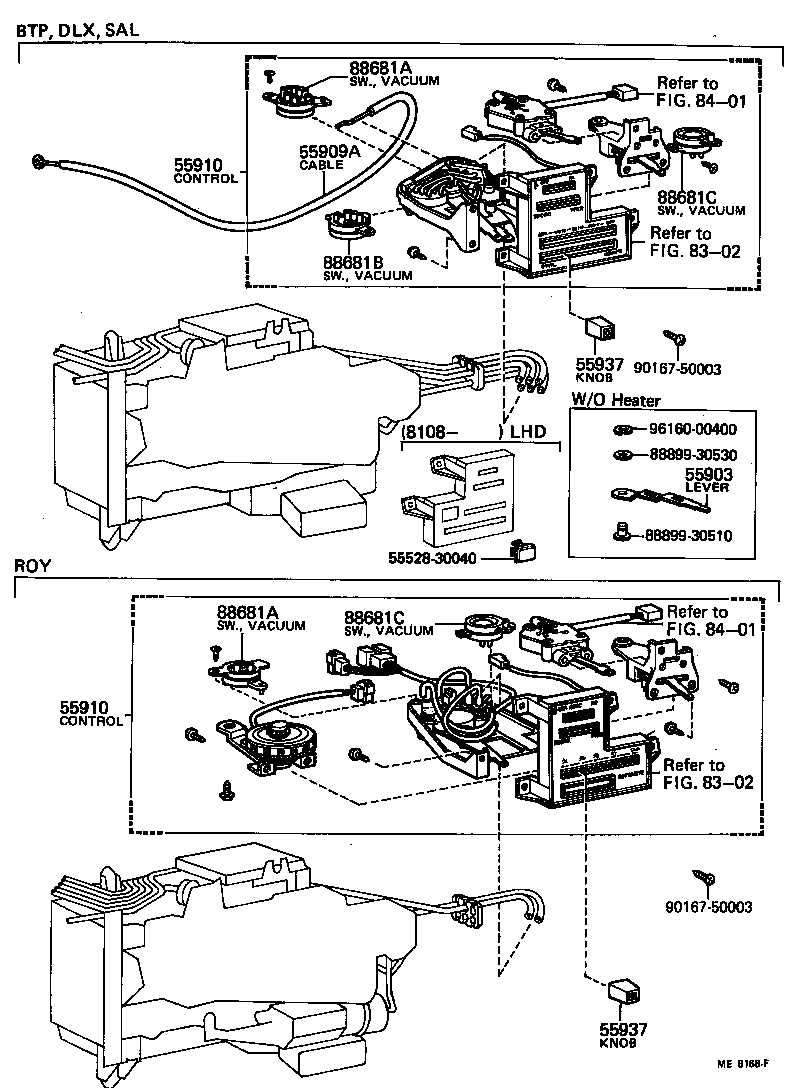

55903 - LEVER SUB-ASSY, HEATER CONTROL
88899-30520	LS110,MS11#,RS110..BTP,DLX,SAL W/BOOST VENTILATOR	09/1979 - 07/1983	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-30020	RS110..BTP,DLX W/HEATER	09/1979 - 07/1983	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-30010	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL) W/HEATER	09/1979 - 07/1983	1
55900-30050	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..GEN..(CBR,DSL) W/BOOST VENTILATOR	09/1979 - 07/1983	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-30010	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL) W/HEATER	09/1979 - 07/1983	1
55900-30050	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..GEN..(CBR,DSL) W/BOOST VENTILATOR	09/1979 - 07/1983	1
55937 - KNOB, HEATER CONTROL LEVER
55905-30080	LS110,MS111,RS110	09/1979 - 08/1981	4
55937 - KNOB, HEATER CONTROL LEVER
55905-30080	LS110,MS111,RS110	09/1979 - 08/1981	4
88681A - SWITCH, HEATER CONTROL VACUUM, NO.1
88681-30290	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88681A - SWITCH, HEATER CONTROL VACUUM, NO.1
88681-30290	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88681B - SWITCH, HEATER CONTROL VACUUM, NO.2
88681-30310	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL) W/HEATER	09/1979 - 07/1983	1
88681C - SWITCH, HEATER CONTROL VACUUM, NO.3
88681-30330	LS110,MS11#,RS110	09/1979 - 07/1983	1
88681C - SWITCH, HEATER CONTROL VACUUM, NO.3
88681-30330	LS110,MS11#,RS110	09/1979 - 07/1983	1
Common parts
55528-30040
88899-30510
88899-30530
90167-50003
96160-00400
Linked diagrams
8302
8401

Click highlighted areas on diagram

Part #	Description	Period	Qty

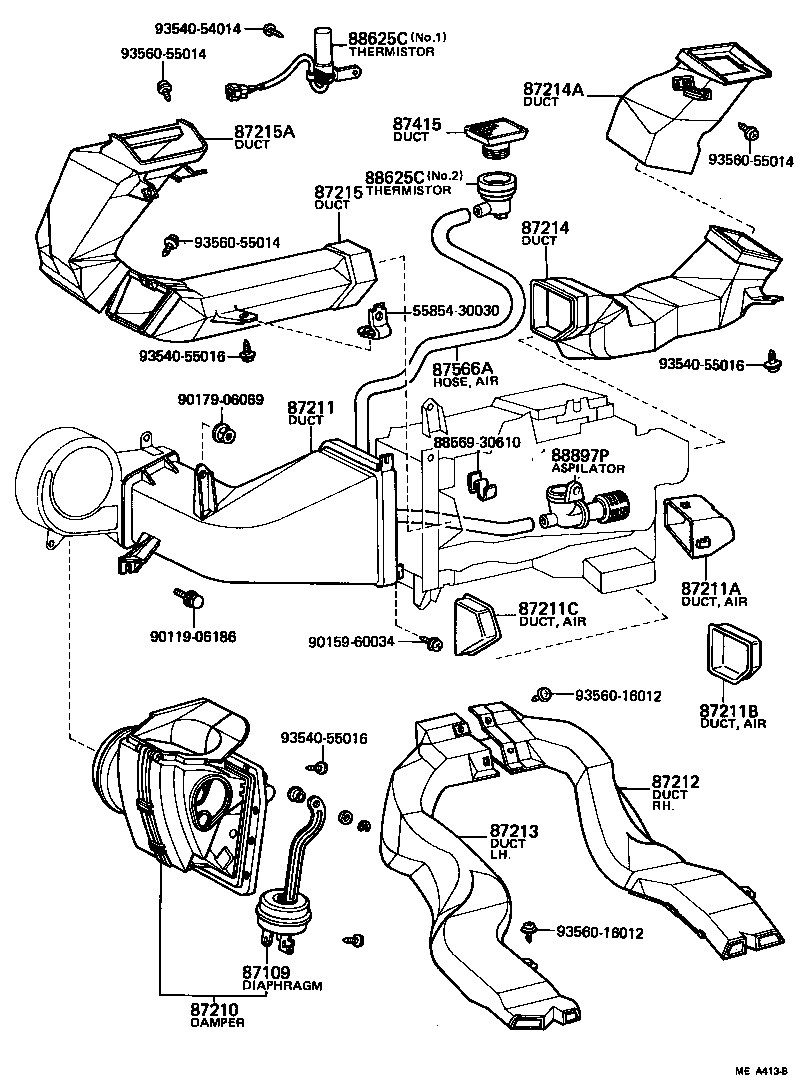

87109 - DIAPHRAGM SUB-ASSY, AIR DOOR CONTROL
87108-30360	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87210 - DAMPER ASSY, AIR
87210-30280	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87211 - DUCT, AIR, NO.1
87201-30330	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
87211A - DUCT, AIR, NO.2
87211-30070	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87211B - DUCT, AIR, NO.3
87211-30090	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..(ARL,GEN)	09/1979 - 07/1983	1
87211C - DUCT, AIR, NO.4
87211-30100	LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..(ARL,GEN)	09/1979 - 07/1983	1
87212 - DUCT, AIR, REAR NO.1
87212-30290	LS110,MS11#,RS110 RH	09/1979 - 07/1983	1
87213 - DUCT, AIR, REAR NO.2
87213-30240	LS110,MS11#,RS110 LH	09/1979 - 07/1983	1
87214 - DUCT, AIR, SIDE NO.1 RH
55844-30030	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-30040	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87215 - DUCT, AIR, SIDE NO.1 LH
55846-30030	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87215A - DUCT, AIR, SIDE NO.2 LH
55086-30050	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
Common parts
55854-30030
88569-30610
90119-06186
90159-60034
90179-06069
93540-54014
93540-55016
93560-16012
93560-55014
