RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

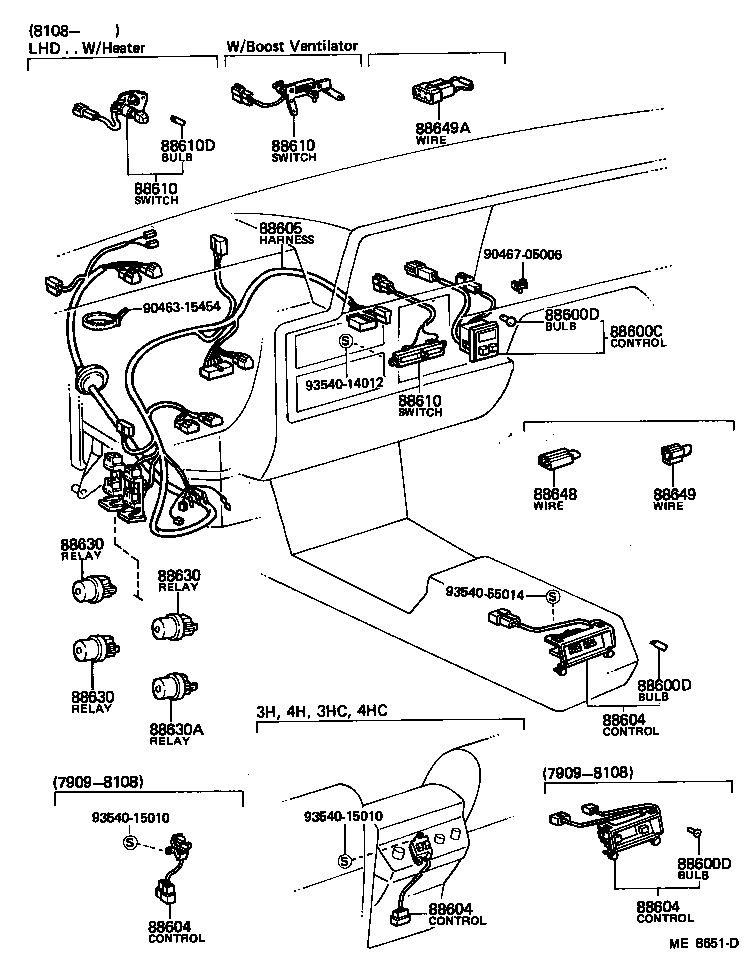

Click highlighted areas on diagram

diagram 88600C 88600D 88600D 88600D 88604 88604 88604 88604 88605 88610 88610 88610 88610D 88630 88630 88630 88630A 88648 88649 88649A 9046315454 9046705006 9354014012 9354015010 9354015010 9354055014
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30310

RS110

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-30020

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/HEATER

 1
88622-30260

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/BOOST VENTILATOR

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-30020

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/HEATER

 1
88622-30260

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/BOOST VENTILATOR

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-30020

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/HEATER

 1
88622-30260

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/BOOST VENTILATOR

 1
88630 - RELAY ASSY, COOLER
90987-03001

LS110,MS11#,RS110..BTP,DLX,SAL

 1
88630 - RELAY ASSY, COOLER
90987-03001

LS110,MS11#,RS110..BTP,DLX,SAL

 1
88630 - RELAY ASSY, COOLER
90987-03001

LS110,MS11#,RS110..BTP,DLX,SAL

 1
88630A - RELAY ASSY, COOLER
90987-02001

LS110,RS110

 1
88648 - WIRING, COOLER, NO.1
88648-20190

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

W/BOOST VENTILATOR

 1
88649 - WIRING, COOLER, NO.2
88649-87203

RS110

W/HEATER

 1
Common parts
90463-15454
90467-05006
93540-14012
93540-15010
93540-55014

(7909- )BTP,DLX,SAL

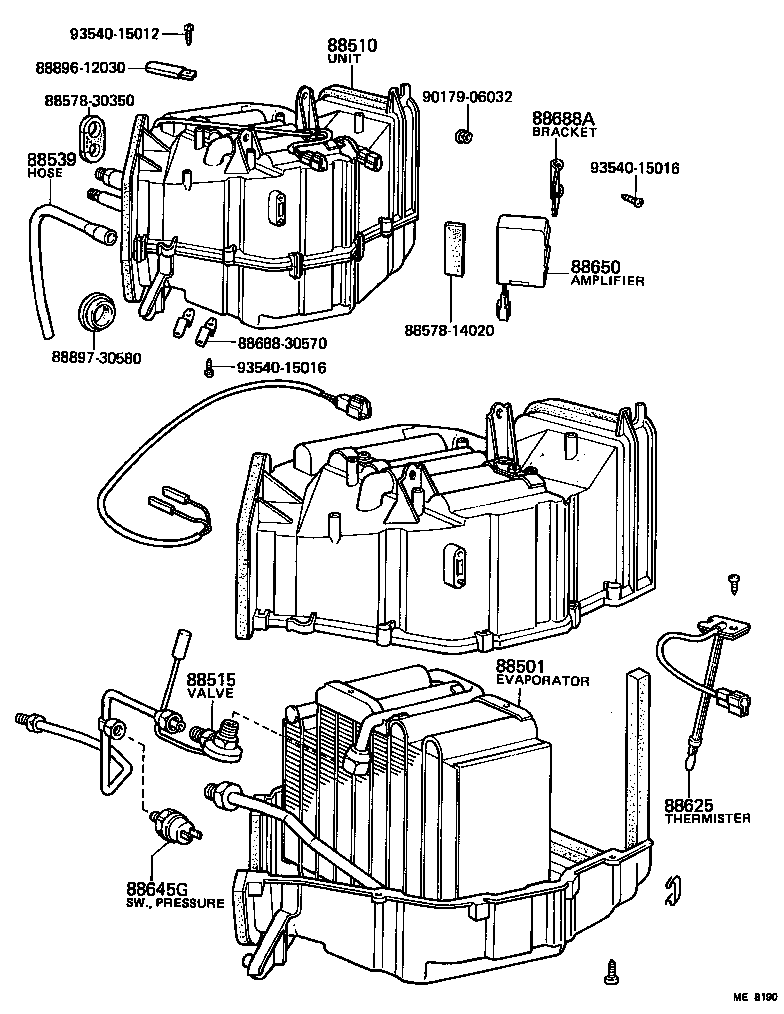

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8857814020 8857830350 88625 88645G 88650 8868830570 88688A 8889612030 8889730580 9017906032 9354015012 9354015016 9354015016
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30550

LS110,MS11#,RS110..RHD

 1
88510 - UNIT ASSY, COOLER
88510-30760

LS110,RS110..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

LS110,RS110

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30530

LS110,MS11#,RS110

 1
88625 - THERMISTOR, COOLER, NO.1
88625-30520

LS110,RS110..RHD

 1
88645G - SWITCH, PRESSURE
88645-22020

LS110,MS11#,RS110..BTP,DLX,SAL

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14051

RS110

FR

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-30580

LS110,RS110

FR

 1
Common parts
88578-14020
88578-30350
88688-30570
88896-12030
88897-30580
90179-06032
93540-15012
93540-15016
