RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

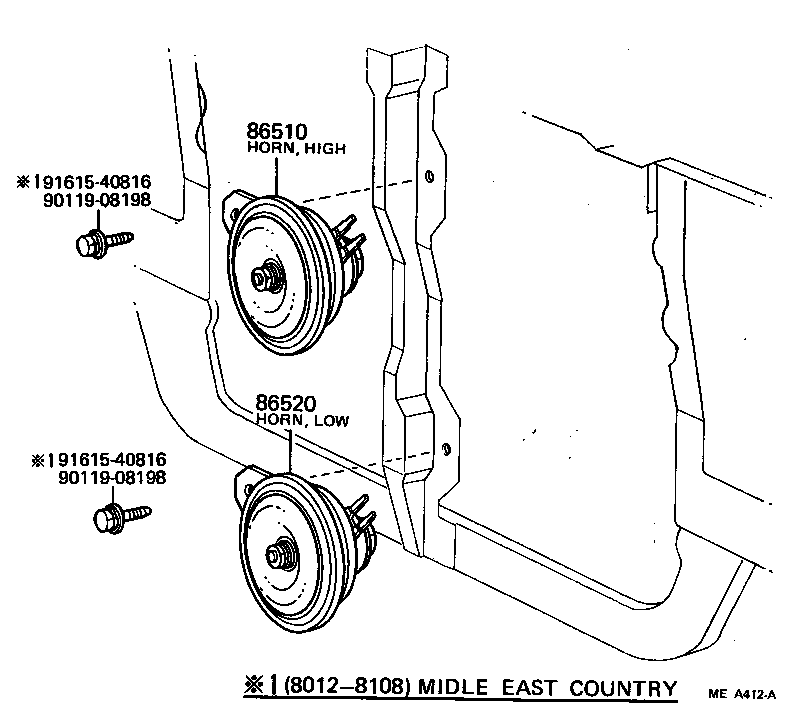

Click highlighted areas on diagram

diagram 86510 86520 9011908198 9011908198 9161540816 9161540816
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-30280

LS110,MS11#,RS110..ARL,GEN

DENSO

 1
86510-30290

LS110,MS11#,RS110..ARL,GEN

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-30290

LS110,MS11#,RS110..ARL,GEN

MARUKO

 1
86520-30280

LS110,MS11#,RS110..ARL,GEN

DENSO

 1
Common parts
90119-08198
91615-40816
