RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED

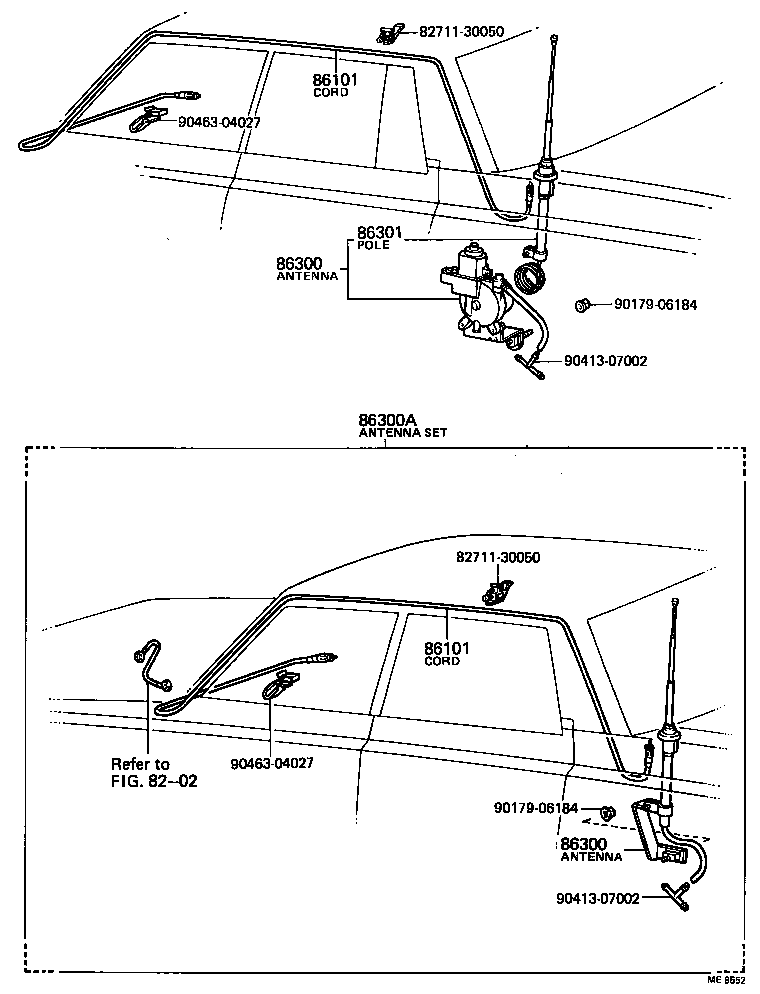

Click highlighted areas on diagram

diagram 8202 8271130050 8271130050 86101 86101 86300 86300 86300A 86301 9017906184 9017906184 9041307002 9041307002 9046304027 9046304027
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-30110

LS110,MS11#,RS110..SED

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-30110

LS110,MS11#,RS110..SED

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-30170

LS110,MS11#,RS110..SED..(BTP,DLX)

MANUAL ANTENNA

 1
86300-30181

LS110,MS11#,RS110..SED

MOTOR ANTENNA

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-30170

LS110,MS11#,RS110..SED..(BTP,DLX)

MANUAL ANTENNA

 1
86300-30181

LS110,MS11#,RS110..SED

MOTOR ANTENNA

 1
86300A - ANTENNA SET
86300-39055

LS110,MS11#,RS110..SED..(BTP,DLX)

MANUAL ANTENNA

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-30181

LS110,MS11#,RS110..SED

MOTOR ANTENNA

 1
Common parts
82711-30050
90179-06184
90413-07002
90463-04027
Linked diagrams
8202
