RS110R-SEJBS (1979)
Toyota Crown
(7909- )

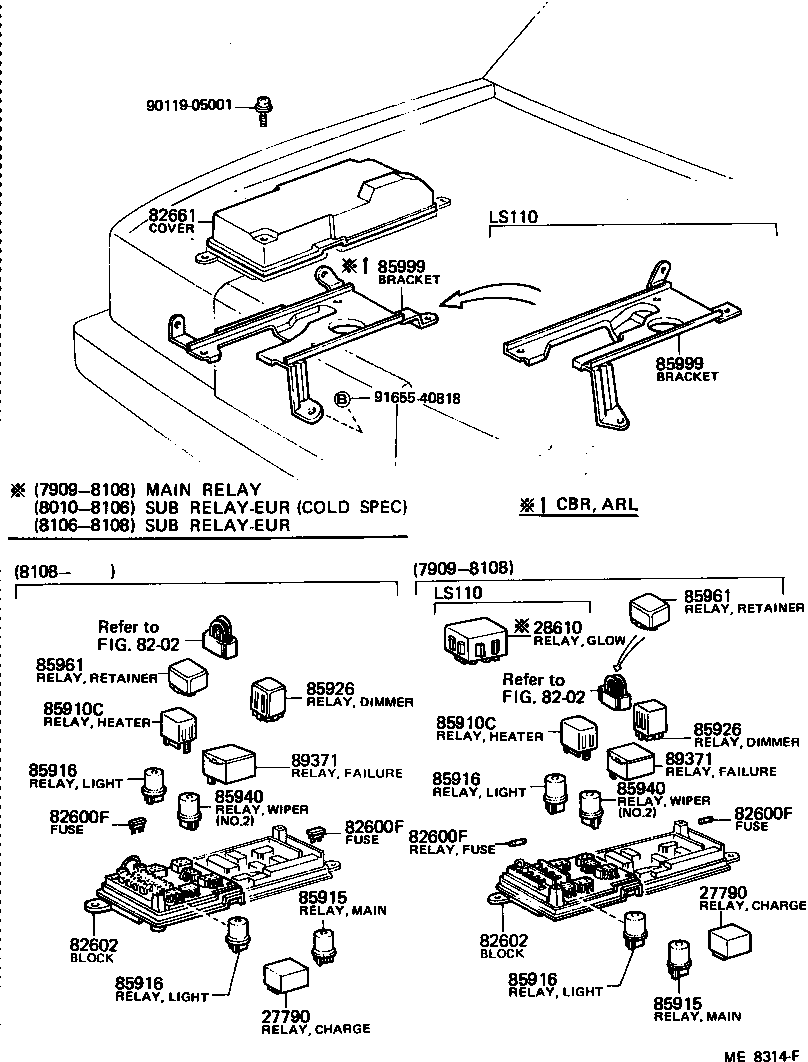

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-30030 |
LS110,MS11#,RS110 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-30030 |
LS110,MS11#,RS110 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30020 |
MS11#,RS110..CBR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
LS110,MS11#,RS110 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
LS110,MS11#,RS110 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02001 |
LS110,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02001 |
LS110,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02001 |
LS110,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02001 |
LS110,MS11#,RS110 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02001 |
LS110,MS11#,RS110 NO.2 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02001 |
LS110,MS11#,RS110 NO.2 |
2 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
MS11#,RS110..CBR ENGIN ROOM |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
MS11#,RS110..CBR ENGIN ROOM |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30130 |
LS110,MS112,RS110..(BTP,DLX)..GEN |
1 | ||
| 89371-30130 |
LS110,MS11#,RS110..GEN |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30130 |
LS110,MS112,RS110..(BTP,DLX)..GEN |
1 | ||
| 89371-30130 |
LS110,MS11#,RS110..GEN |
1 | ||
| Common parts | ||||
| 90119-05001 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 8202 | ||||

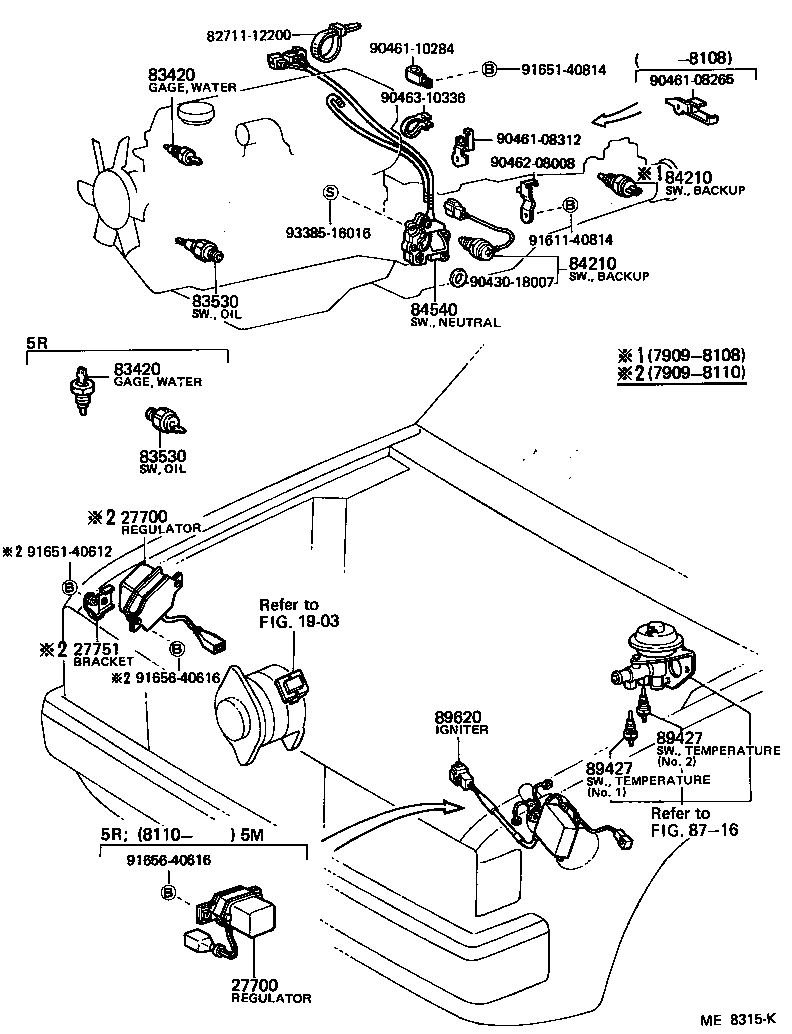

(7909- )MS11#,RS110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-44010 |
L,4M,5M,5R..LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-44010 |
L,4M,5M,5R..LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
LS110,MS11#,RS110 DENSO |
1 | ||
| 83420-20020 |
LS110,MS11#,RS110 YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
LS110,MS11#,RS110 DENSO |
1 | ||
| 83420-20020 |
LS110,MS11#,RS110 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30030 |
RS110 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30030 |
RS110 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
LS110,MS111,RS110..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
LS110,MS111,RS110..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90430-18007 | ||||
| 90461-08265 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90463-10336 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8716 | ||||

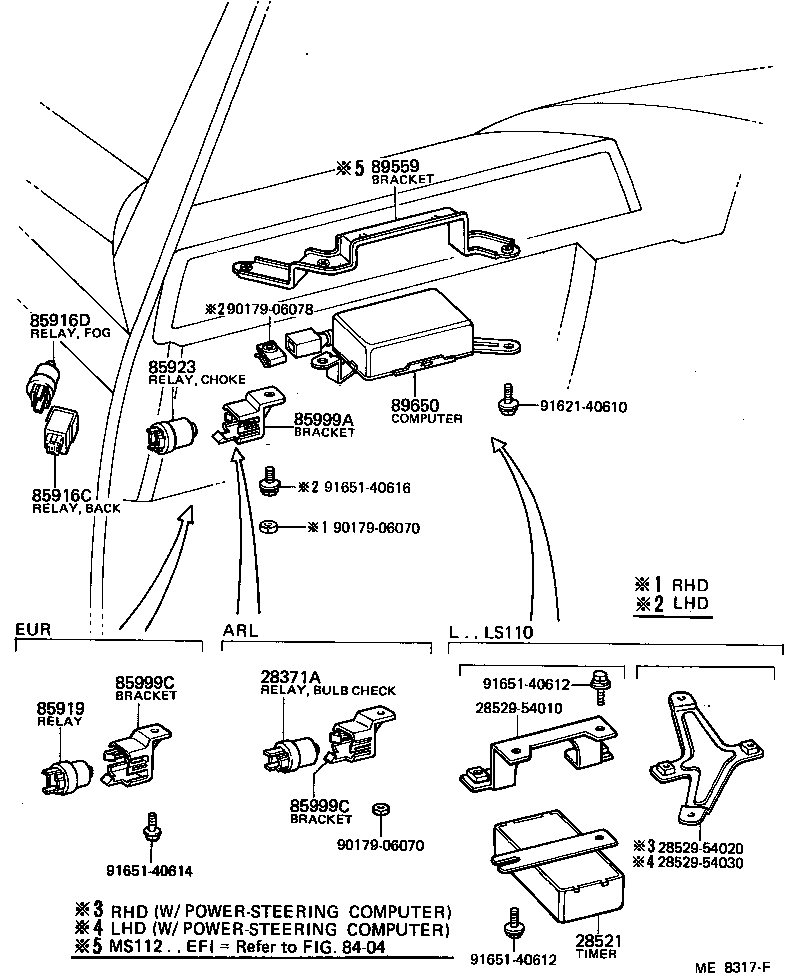

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28529-54010 | ||||
| 28529-54020 | ||||
| 28529-54030 | ||||
| 90179-06070 | ||||
| 90179-06078 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8404 | ||||

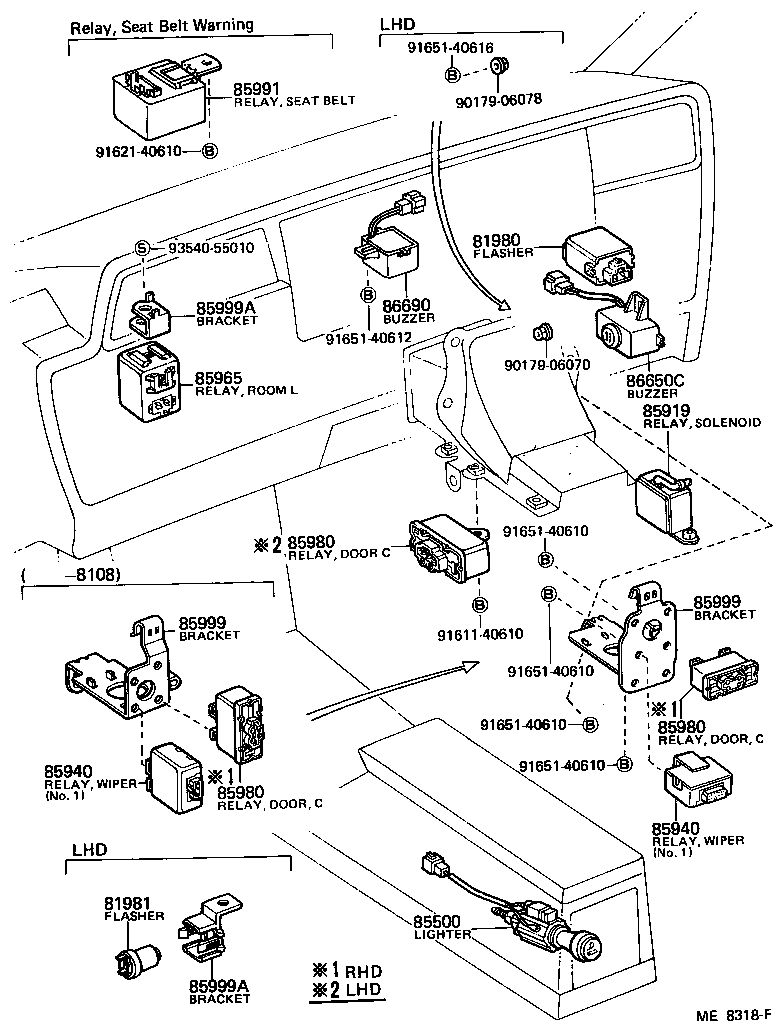

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LS110,MS11#,RS110 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30300 |
LS110,MS11#,RS110..ARL,GEN FR |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02001 |
LS110,MS11#,RS110 NO.2 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02001 |
LS110,MS11#,RS110 NO.2 |
2 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
MS11#,RS110..CBR ENGIN ROOM |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
MS11#,RS110..CBR ENGIN ROOM |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-06078 | ||||
| 91611-40610 | ||||
| 91621-40610 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93540-55010 | ||||

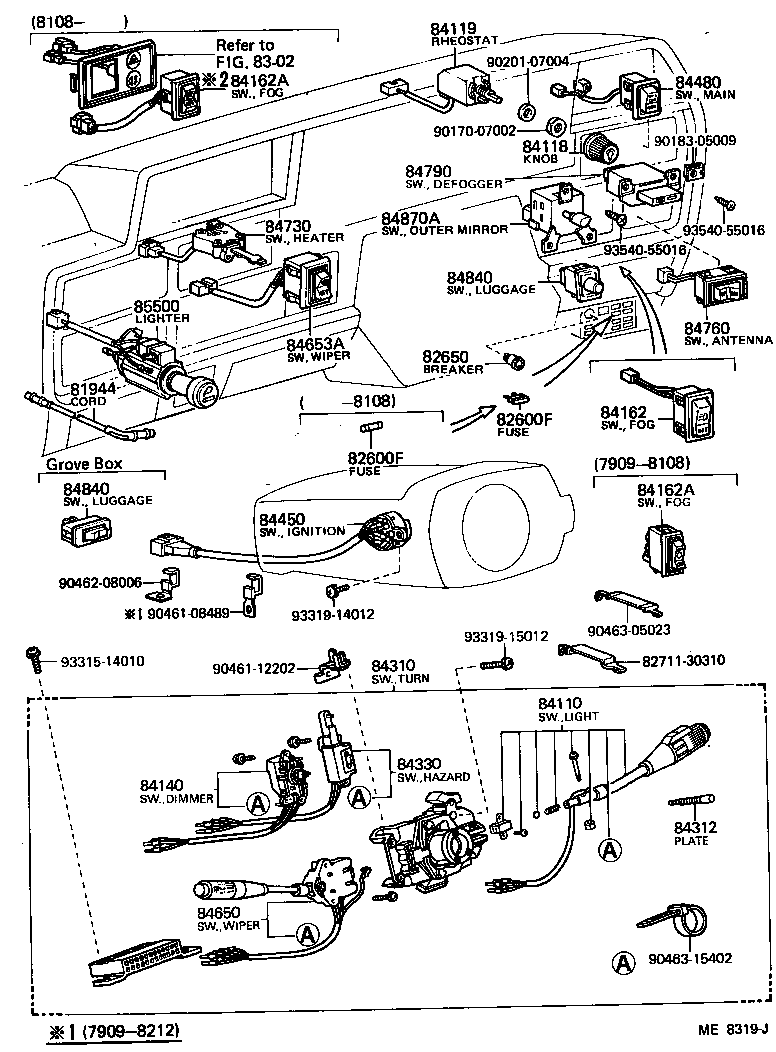

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20021 |
LS110,MS11#,RS110 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
LS110,MS11#,RS110 5A,5A L=30 |
3 | ||
| 99118-62915 |
LS110,MS11#,RS110 15A,15A |
12 | ||
| 99118-62920 |
LS110,MS11#,RS110 20A,20A |
2 | ||
| 99118-62005 |
LS110,MS11#,RS110 5A L=20 |
4 | ||
| 99118-62910 |
LS110,MS11#,RS110 10A |
7 | ||
| 90982-07010 |
LS110,MS11#,RS110 7.5A |
1 | ||
| 99118-62930 |
LS110,MS11#,RS110 30A |
3 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29116 |
LS110,MS11#,RS110..RHD..(EUR,GEN) |
1 | ||
| 84112-69015 |
LS110,MS112,RS110..RHD..(EUR,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29016 |
LS110,MS11#,RS110..RHD..(3HC,4H,4HC) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30260 |
LS110,RS110..RHD..4H |
1 | ||
| 84310-30261 |
LS110,RS110..RHD..4H |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LS110,MS11#,RS110 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29016 |
LS110,MS11#,RS110..RHD..(EUR,GEN) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27030 |
LS110,MS11#,RS110..RHD..(EUR,GEN) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29136 |
LS110,RS110..RHD..BTP |
1 | ||
| 84652-69015 |
LS110,RS110..RHD..BTP |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30100 |
LS110,MS11#,RS110..RHD..(BTP,DLX,SAL) |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-20020 |
LS110,MS11#,RS110 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30130 |
LS110,MS11#,RS110 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30041 |
LS110,MS112,RS110..SED INSTRUMENT UNDER |
1 | ||
| 84840-30040 |
LS110,MS11#,RS110..SED INSTRUMENT UNDER |
1 | ||
| 84840-30050 |
LS110,MS11#,RS110..SED GROVE BOX |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30041 |
LS110,MS112,RS110..SED INSTRUMENT UNDER |
1 | ||
| 84840-30040 |
LS110,MS11#,RS110..SED INSTRUMENT UNDER |
1 | ||
| 84840-30050 |
LS110,MS11#,RS110..SED GROVE BOX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30300 |
LS110,MS11#,RS110..ARL,GEN FR |
1 | ||
| Common parts | ||||
| 82711-30310 | ||||
| 90170-07002 | ||||
| 90183-05009 | ||||
| 90201-07004 | ||||
| 90461-08489 | ||||
| 90461-12202 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

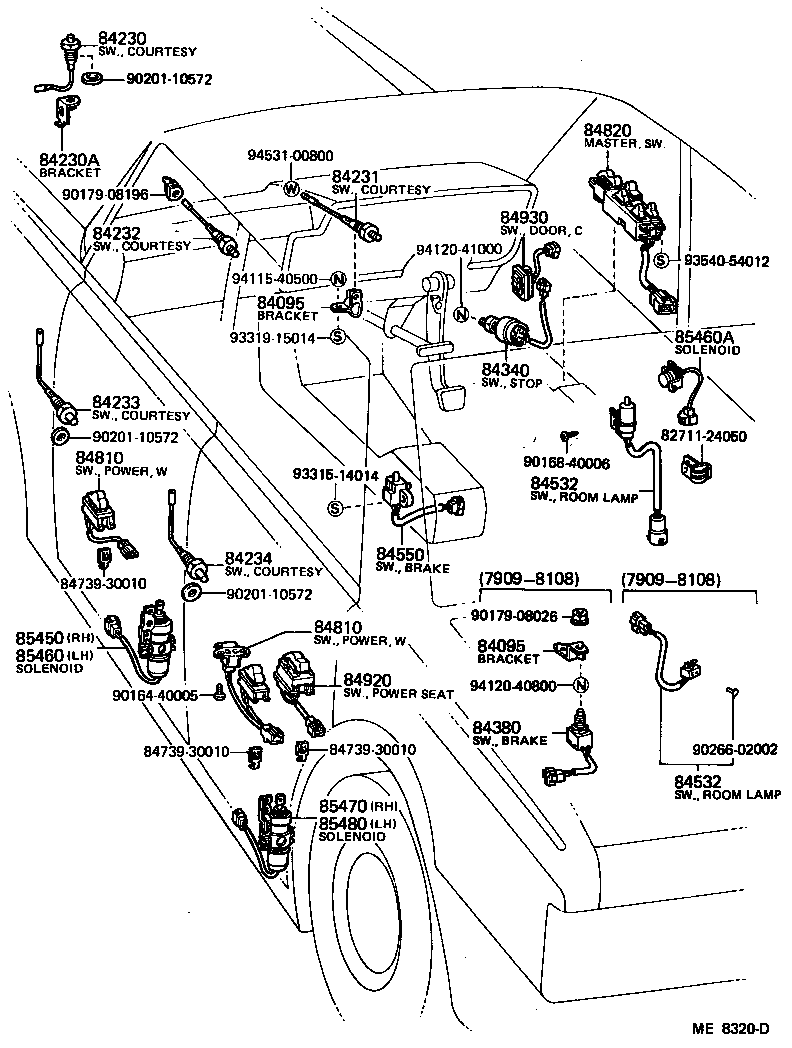

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-30021 |
LS110,MS11#,RS110..3HC,4H,4HC |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-30021 |
LS110,MS11#,RS110..3HC,4H,4HC |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84550-30011 |
LS110,MS11#,RS110..3HC,4H,4HC L=100 |
1 | ||
| 84550-30020 |
LS110,MS11#,RS110..3HC,4H,4HC L=210 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-30080 |
LS110,MS11#,RS110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-30080 |
LS110,MS11#,RS110 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 82711-24050 | ||||
| 84739-30010 | ||||
| 90164-40005 | ||||
| 90168-40006 | ||||
| 90179-08026 | ||||
| 90179-08196 | ||||
| 90201-10572 | ||||
| 90266-02002 | ||||
| 93315-14014 | ||||
| 93319-15014 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||

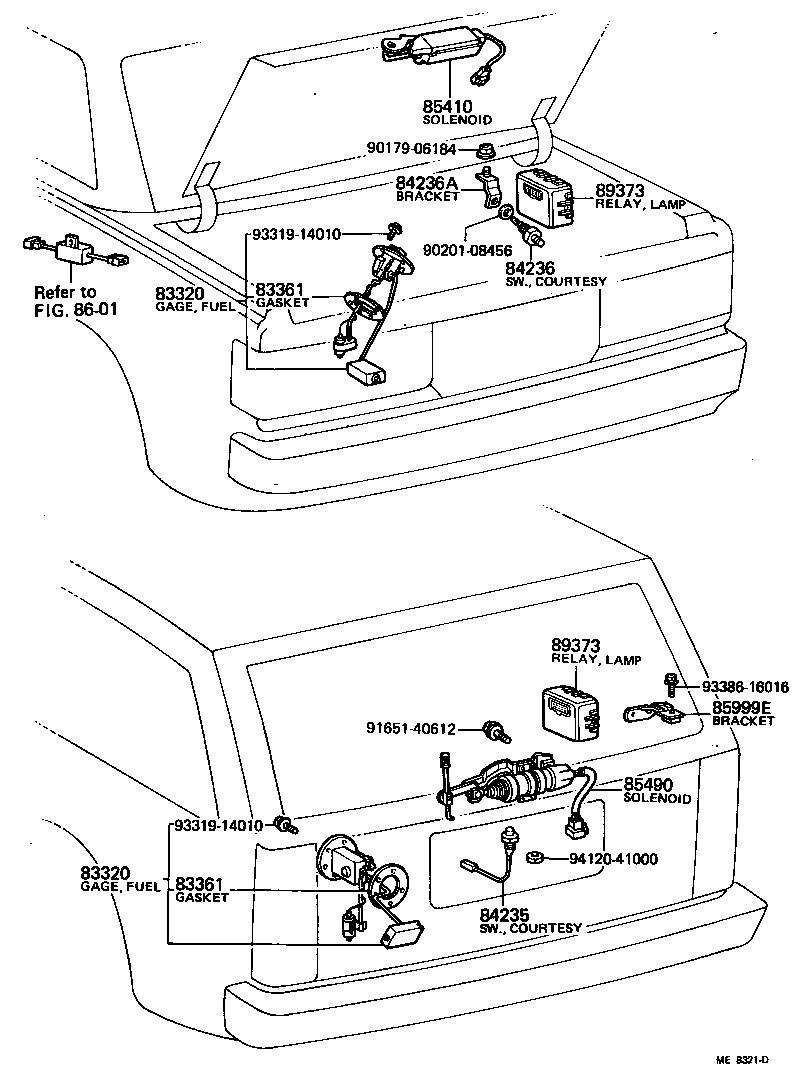

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39215 |
LS110,RS110..SED..(BTP,DLX) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39215 |
LS110,RS110..SED..(BTP,DLX) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LS110,MS11#,RS110 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LS110,MS11#,RS110 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20010 |
LS110,MS11#,RS110..SED |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-30030 |
LS110,MS11#,RS110..SED |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30050 |
LS110,MS11#,RS110..SED |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30020 |
LS110,MS11#,RS110..SED..(ARL,GEN) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30020 |
LS110,MS11#,RS110..SED..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90179-06184 | ||||
| 90201-08456 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| 93386-16016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
