RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

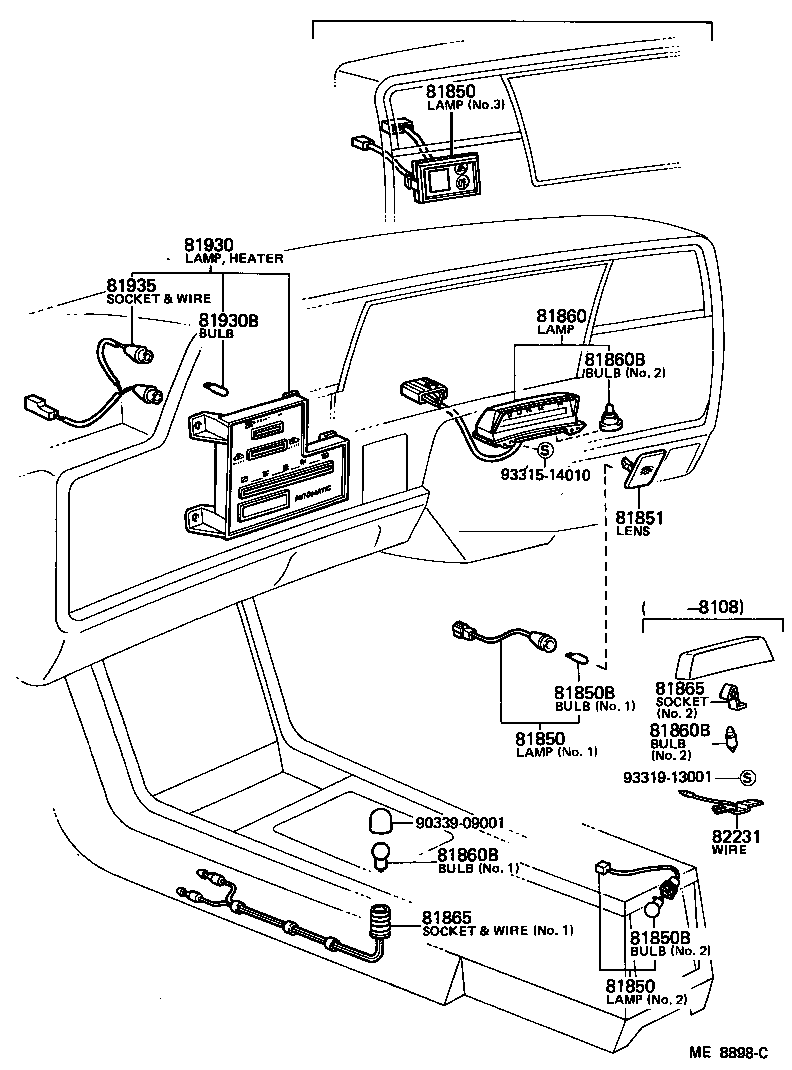

Click highlighted areas on diagram

diagram 81850 81850 81850 81850B 81850B 81851 81860 81860B 81860B 81860B 81865 81865 81930 81930B 81935 82231 9033909001 9331514010 9331913001
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-30080

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)

W/HEATER

 1
81930-30120

LS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..GEN..(CBR,DSL)

W/BOOST VENTILATOR

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
81936-30080

LS110,MS11#,RS110

 2
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-30080

LS110,MS11#,RS110

 1
Common parts
90339-09001
93315-14010
93319-13001
