Toyota Crown RS110 WIRING & CLAMP

RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982

Engine 5R

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

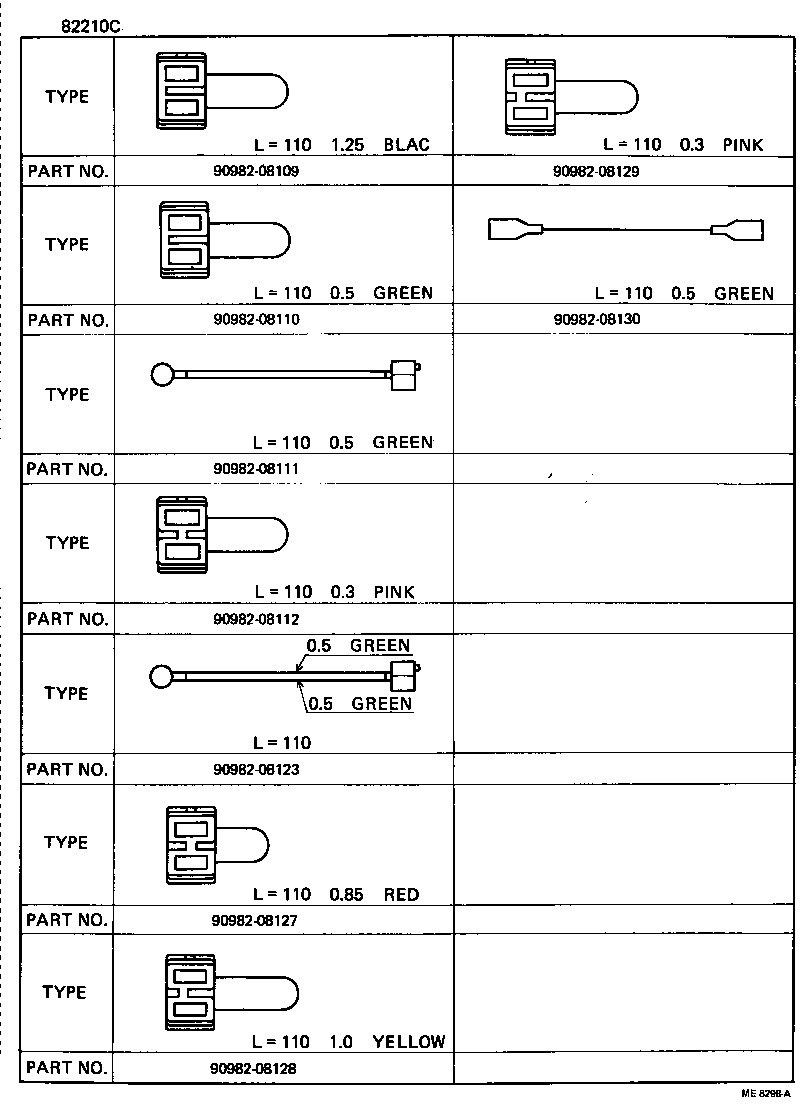

82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
Common parts
90982-08109
90982-08110
90982-08111
90982-08112
90982-08123
90982-08127
90982-08128
90982-08129
90982-08130

(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12120
82711-12200
82711-22120
82711-22140
82711-22150
82711-30040
82711-30050
82711-30070
82711-30110
82711-30130
82711-30150
82711-30160
82711-30170
82711-30200
82711-91701
82711-91703
82817-20200
82817-22220
82817-91255
90461-06032
90461-06086
90461-06303
90461-06804
90461-08483
90461-10296

(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-30410
82817-30290
82817-30300
82817-30310
82817-30320
82821-30060
90461-08200
90461-08214
90461-10617
90463-04029
90463-06348
90463-06357
90463-08169
90463-10010
90463-10336
90463-15067
90463-15298
90464-00042
90464-00052
90464-00166
90480-23006
90480-32001
90950-01251
90950-01282
90950-03103

(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06005
90119-06049
90119-06114
90119-08103
90159-40147
90159-40206
90159-50069
90159-60102
90168-40040
90168-60010
90179-05095
90179-06070
90179-06158
90179-06164
90179-08123
90179-08146
90189-04007

(7909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14160
82711-22100
82711-22350
82711-22480
82711-30020
82817-23010
82817-30330
82817-91601
82819-30040
90183-05005
90339-04001
90461-08183
90461-08218
90461-08493
90463-04340
90463-08076
90463-10024
90463-10521
90463-15003
90464-00108
90464-00165
90464-00190
90464-00260
90467-05006
90950-01131

(7909-8108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1

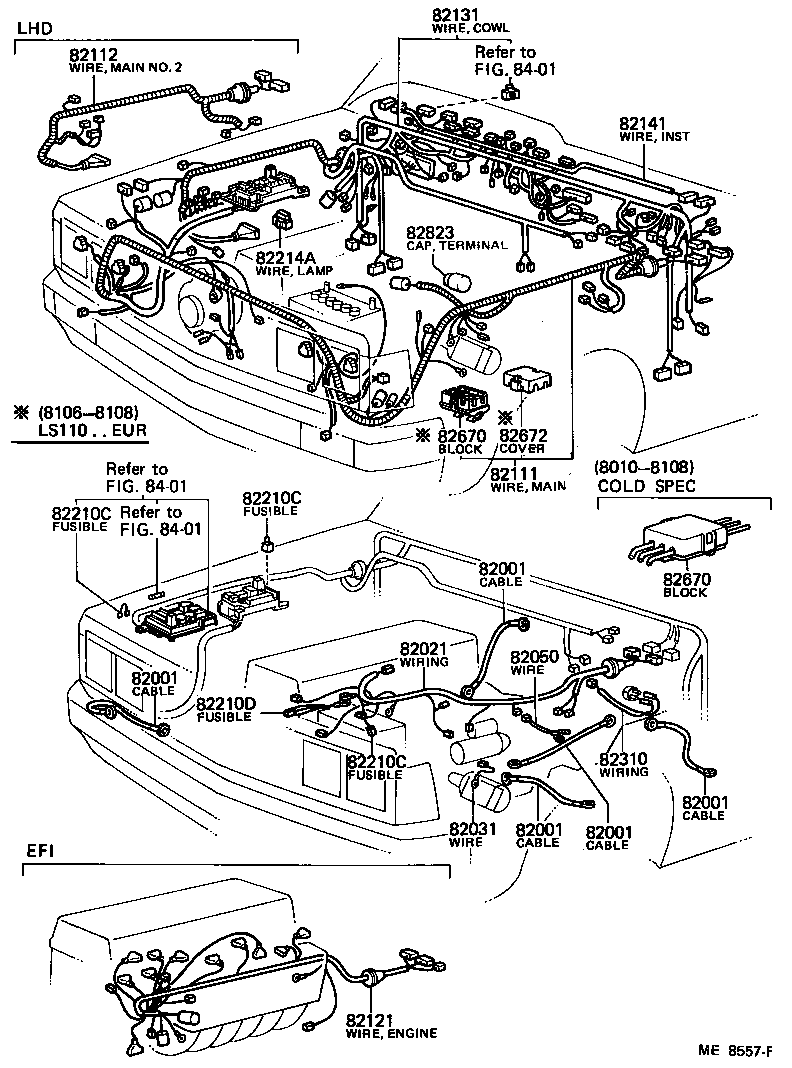

82111 - WIRE, ENGINE ROOM MAIN
82020-30750	RS110..RHD	09/1979 - 02/1980	1
82020-30751	RS110..RHD	02/1980 - 08/1981	1
82131 - WIRE, COWL
82220-3A290	RS110..RHD	09/1979 - 02/1980	1
82220-3A291	RS110..RHD	02/1980 - 08/1981	1
82141 - WIRE, INSTRUMENT PANEL
82201-30330	MS111,RS110	09/1979 - 08/1981	1
82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
82210D - FUSIBLE LINK
90982-08182	RS110..RHD 0.5G,0.5G & 2L	08/1980 - 08/1981	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30270	LS110..WG..MTM;LS110..4F..DLX;MS111,RS110..MTM;LS110..SED..(4H,5F)	09/1979 - 08/1981	1
Linked diagrams
8401

(7909- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty

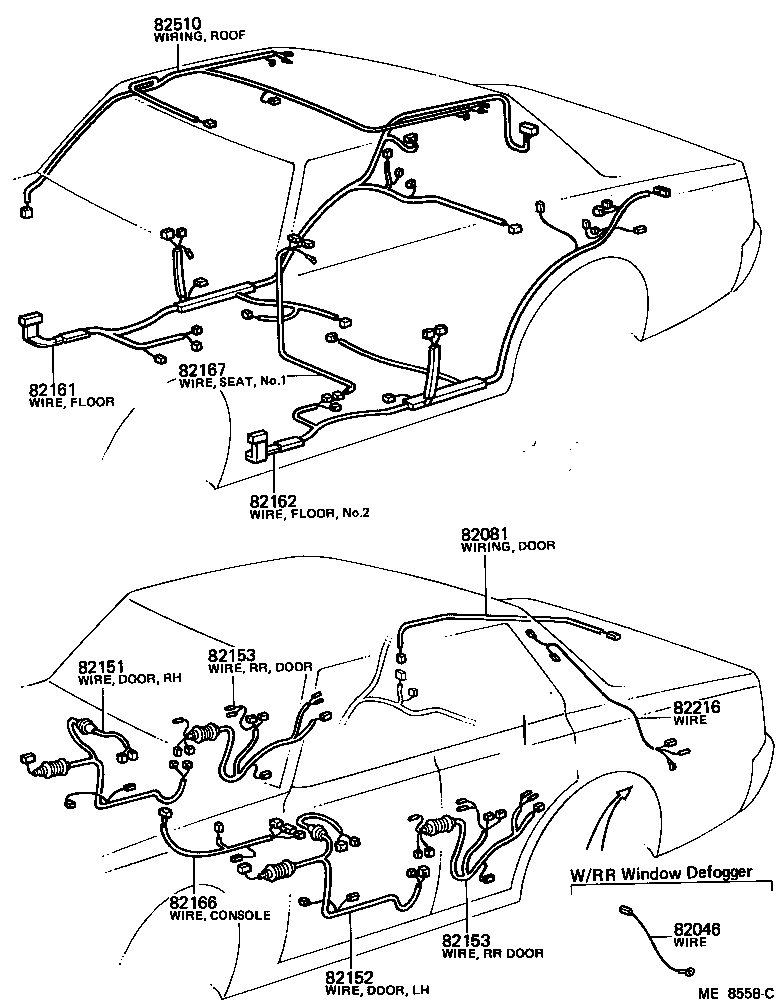

82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-30060	LS110,MS11#,RS110..SED W/RR WINDOW DEFOGGER	09/1979 - 07/1983	1
82081 - WIRING ASSY, DOOR LOCK
82081-30050	LS110,MS11#,RS110..SED	09/1979 - 08/1981	1
82151 - WIRE, FRONT DOOR, RH
82505-30230	LS110,MS11#,RS110..BTP W/RADIO	09/1979 - 08/1981	1
82152 - WIRE, FRONT DOOR, LH
82505-30230	LS110,MS11#,RS110..BTP W/RADIO	09/1979 - 08/1981	1
82153 - WIRE, REAR DOOR, NO.1
82507-30150	LS110,MS11#,RS110..BTP	09/1979 - 08/1981	2
82153 - WIRE, REAR DOOR, NO.1
82507-30150	LS110,MS11#,RS110..BTP	09/1979 - 08/1981	2
82161 - WIRE, FLOOR
82420-30690	LS110,MS111,RS110..SED..BTP..GEN	09/1979 - 08/1981	1
82162 - WIRE, FLOOR, NO.2
82420-30730	LS110,MS111,RS110..SED..BTP	09/1979 - 08/1981	1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-30150	LS110,MS11#,RS110..SED W/RR WINDOW DEFOGGER	09/1979 - 07/1983	1
82510 - WIRING ASSY, ROOF
82510-30370	LS110,MS11#,RS110..SED..(BTP,DLX)	09/1979 - 07/1983	1

(8108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-22380
82711-22490
82711-22640
82711-24090
82711-30210
82711-30350
82711-30360
82711-30370
82711-30380
82711-30400
90461-10472
90463-06050
90463-08183
90464-00137
90467-15005
90480-25009
90929-01013

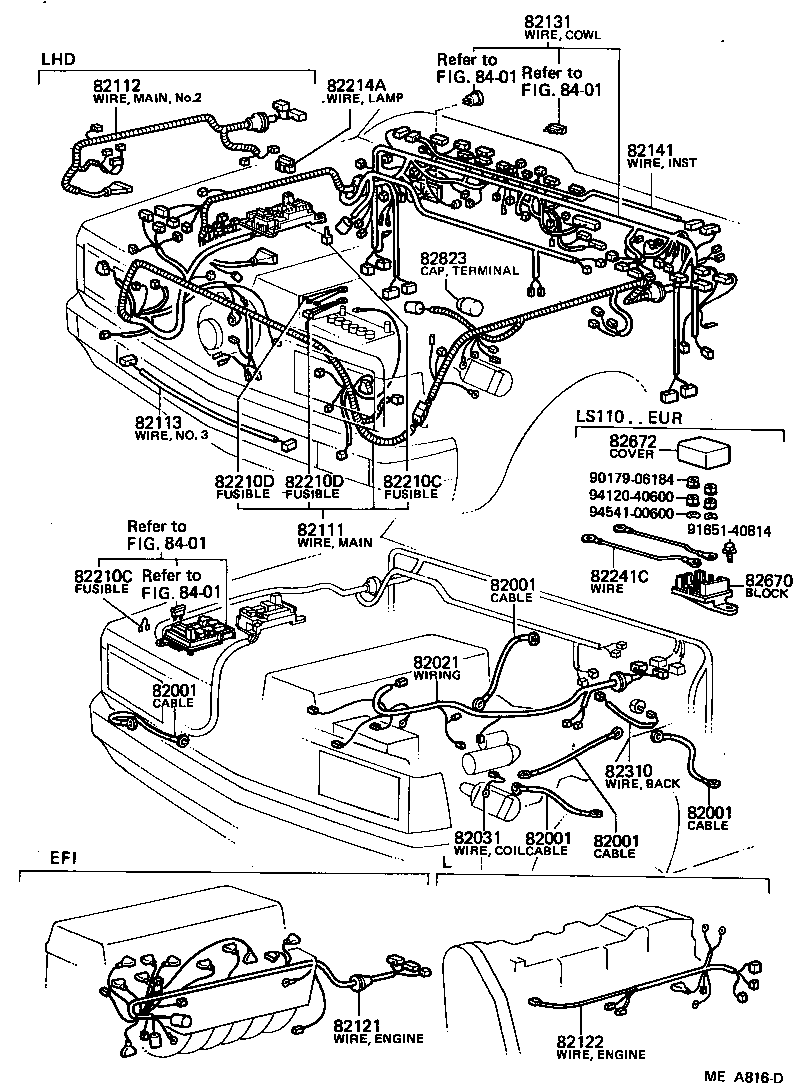

(8108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82001 - CABLE, BOND, NO.1
90980-07033	MS11#,RS110 L=510	09/1979 - 07/1983	1
90980-07119	MS11#,RS110 L=320	09/1979 - 07/1983	1
90980-07083	MS11#,RS110 L=350	09/1979 - 07/1983	1
90980-07061	LS110,MS11#,RS110..SED L=300	09/1979 - 07/1983	1
90980-07064	MS11#,RS110 L=170	09/1979 - 07/1983	1
82111 - WIRE, ENGINE ROOM MAIN
82020-30750	RS110..RHD	09/1979 - 02/1980	1
82020-30751	RS110..RHD	02/1980 - 08/1981	1
82131 - WIRE, COWL
82220-3A290	RS110..RHD	09/1979 - 02/1980	1
82220-3A291	RS110..RHD	02/1980 - 08/1981	1
82141 - WIRE, INSTRUMENT PANEL
82201-30330	MS111,RS110	09/1979 - 08/1981	1
82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
82210C - FUSIBLE LINK
90982-08109	LS110,MS11#,RS110 L=110,1.25 BLACK	09/1979 - 06/1981	1
90982-08127	LS110,MS11#,RS110 L=110,0.85 RED	09/1979 - 07/1983	1
90982-08112	LS110,MS11#,RS110 L=110,0.3 PINK	09/1979 - 07/1983	1
90982-08110	LS110,MS11#,RS110..RHD L=110,0.5 GREEN	09/1979 - 07/1983	1
90982-08130	LS110,MS11#,RS110 L=110,0.5 GREEN	09/1979 - 07/1983	1
82210D - FUSIBLE LINK
90982-08182	RS110..RHD 0.5G,0.5G & 2L	08/1980 - 08/1981	1
82210D - FUSIBLE LINK
90982-08182	RS110..RHD 0.5G,0.5G & 2L	08/1980 - 08/1981	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-30270	LS110..WG..MTM;LS110..4F..DLX;MS111,RS110..MTM;LS110..SED..(4H,5F)	09/1979 - 08/1981	1
Common parts
90179-06184
91651-40814
94120-40600
94541-00600
Linked diagrams
8401
