RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

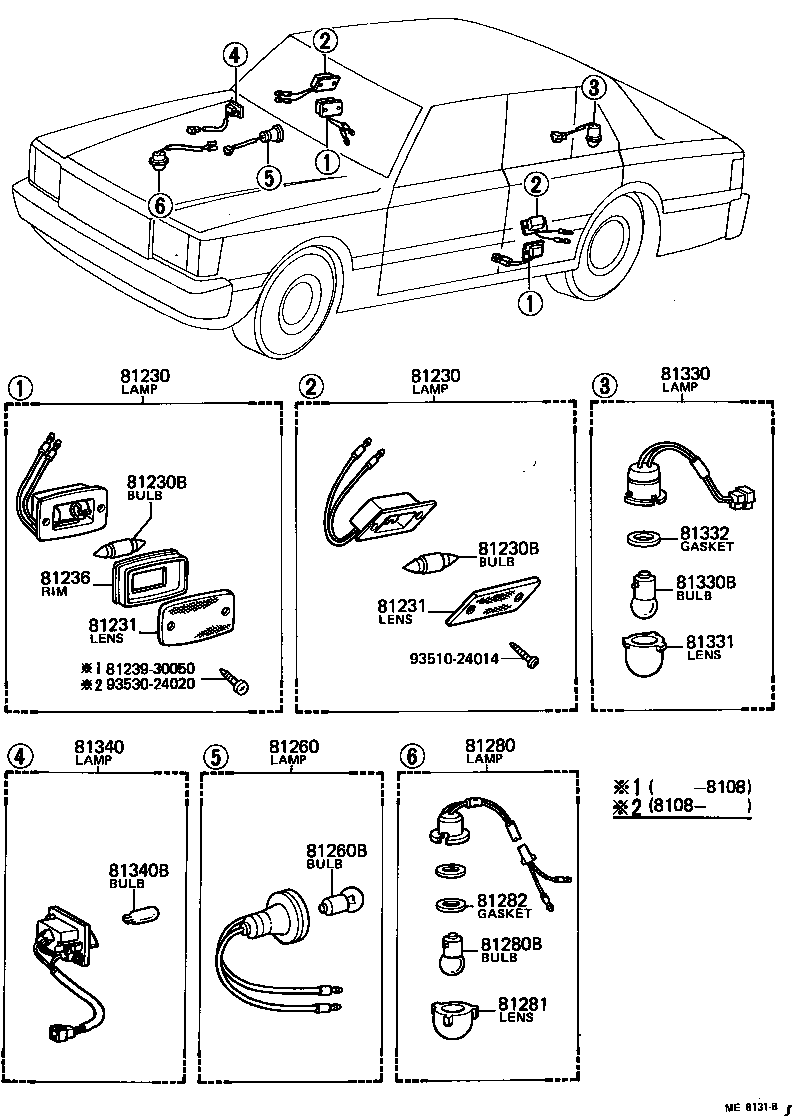

Click highlighted areas on diagram

diagram 81230 81230 81230B 81230B 81231 81231 81236 8123930050 81260 81260B 81280 81280B 81281 81282 81330 81330B 81331 81332 81340 81340B 9351024014 9353024020
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30060

MS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)

DOOR TORIM

 2
81230 - LAMP ASSY, COURTESY
81230-30060

MS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)

DOOR TORIM

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

LS110,MS11#,RS110

12V 5W,12V 5W

 4
81230B - BULB(FOR COURTESY LAMP)
99132-13050

LS110,MS11#,RS110

12V 5W,12V 5W

 4
81231 - LENS, COURTESY LAMP
81231-30020

MS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)

DOOR TORIM

 1
81231 - LENS, COURTESY LAMP
81231-30020

MS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)

DOOR TORIM

 1
81236 - RIM, COURTESY LAMP
81236-30010

MS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)

DOOR TORIM

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30070

LS110,MS11#,RS110..SED

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-13060

LS110,MS11#,RS110..SED

12V 6W,12V 6W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81281-30010

LS110,MS11#,RS110..SED

 1
81332 - PACKING, LUGGAGE COMPARTMENT LAMP LENS
81282-30010

LS110,MS11#,RS110..SED

 1
Common parts
81239-30050
93510-24014
93530-24020

(7909- )

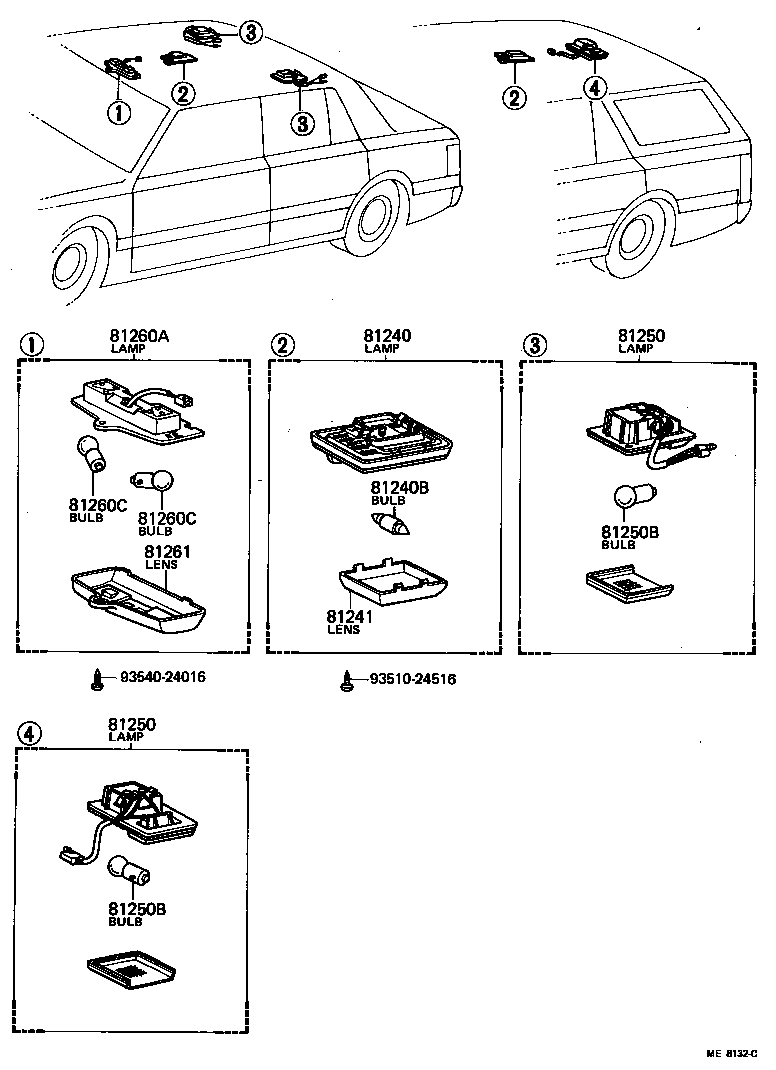

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81260A 81260C 81260C 81261 9351024516 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-3007008

LS110,MS11#,RS110

IVORY,IVORY,TRIM3#,4#

 1
81240-3007004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

LS110,MS11#,RS110

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

LS110,MS11#,RS110

 1
Common parts
93510-24516
93540-24016
