RS110R-SEJBS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1982
Engine
5R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )

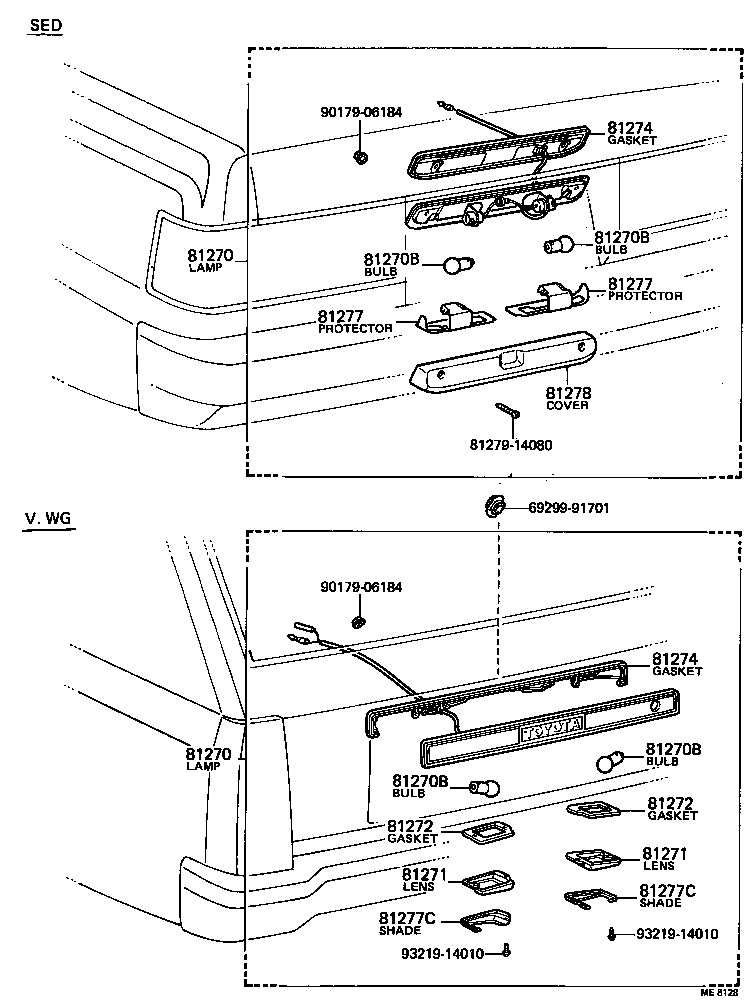

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-39165 |
LS110,MS11#,RS110..SED |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-39165 |
LS110,MS11#,RS110..SED |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
LS110,MS11#,RS110..SED 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
LS110,MS11#,RS110..SED 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
LS110,MS11#,RS110..SED 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
LS110,MS11#,RS110..SED 12V 10W,12V 10W |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-30090 |
LS110,MS11#,RS110..SED |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-30090 |
LS110,MS11#,RS110..SED |
1 | ||
| 81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS | ||||
| 81277-14090 |
LS110,MS11#,RS110..SED RH |
1 | ||
| 81278-14090 |
LS110,MS11#,RS110..SED LH |
1 | ||
| 81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS | ||||
| 81277-14090 |
LS110,MS11#,RS110..SED RH |
1 | ||
| 81278-14090 |
LS110,MS11#,RS110..SED LH |
1 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81276-30090 |
LS110,MS11#,RS110..SED |
1 | ||
| Common parts | ||||
| 69299-91701 | ||||
| 81279-14080 | ||||
| 90179-06184 | ||||
| 93219-14010 | ||||
