RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110K 81110S 81110S 81110T 81110T 81111A 81112 8111214220 81113 81113 81114 81114 8111614320 81121 81121 81131 81150 81150K 81151A 81152 81153 81153 81154 81154 9161140610 9321914008 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-30430

LS110,MS11#,RS110

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-30540

LS110,MS11#,RS110

 1
81110 - HEADLAMP ASSY, RH
81110-39535

LS110,MS11#,RS110..RHD..GEN

 1
81110-39535

LS110,MS112,RS110..RHD..(BTP,DLX)

 1
81110S - SEALED BEAM UNIT, NO.1
90981-05002

LS110,MS11#,RS110..GEN

12V 50W,*WB,12V 50W

 2
90981-05002

LS110,MS112,RS110..(BTP,DLX)..GEN

12V 50W,*WB,12V 50W

 2
90981-05002

LS110,MS112,RS110..RHD..(BTP,DLX)

12V 50W,*WB,12V 50W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05002

LS110,MS11#,RS110..GEN

12V 50W,*WB,12V 50W

 2
90981-05002

LS110,MS112,RS110..(BTP,DLX)..GEN

12V 50W,*WB,12V 50W

 2
90981-05002

LS110,MS112,RS110..RHD..(BTP,DLX)

12V 50W,*WB,12V 50W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05004

LS110,MS112,RS110..RHD..(BTP,DLX)

12V 40/60W,*WB,12V 40/60W

 2
90981-05004

LS110,MS11#,RS110..RHD..GEN

12V 40/60W,*WB,12V 40/60W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05004

LS110,MS112,RS110..RHD..(BTP,DLX)

12V 40/60W,*WB,12V 40/60W

 2
90981-05004

LS110,MS11#,RS110..RHD..GEN

12V 40/60W,*WB,12V 40/60W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

LS110,MS11#,RS110..GEN

 1
81111-20360

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20360

LS110,MS11#,RS110..GEN

 1
81111-20360

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-30430

LS110,MS11#,RS110..GEN

 1
81113-30430

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-30430

LS110,MS11#,RS110..GEN

 1
81113-30430

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30430

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81114-30430

LS110,MS11#,RS110..GEN

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30430

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81114-30430

LS110,MS11#,RS110..GEN

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

LS110,MS11#,RS110

 4
81121 - SPRING, HEADLAMP TENSION
81121-14320

LS110,MS11#,RS110

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20360

LS110,MS11#,RS110

 8
81150 - HEADLAMP ASSY, LH
81150-39535

LS110,MS11#,RS110..RHD..GEN

 1
81150-39535

LS110,MS112,RS110..RHD..(BTP,DLX)

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

LS110,MS11#,RS110..GEN

 1
81111-20360

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20360

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81111-20360

LS110,MS11#,RS110..GEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-30540

LS110,MS11#,RS110..GEN

 1
81153-30540

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-30540

LS110,MS11#,RS110..GEN

 1
81153-30540

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30540

LS110,MS11#,RS110..GEN

 1
81154-30540

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30540

LS110,MS11#,RS110..GEN

 1
81154-30540

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
Common parts
81112-14220
81116-14320
91611-40610
93219-14008

(8108- )GEN

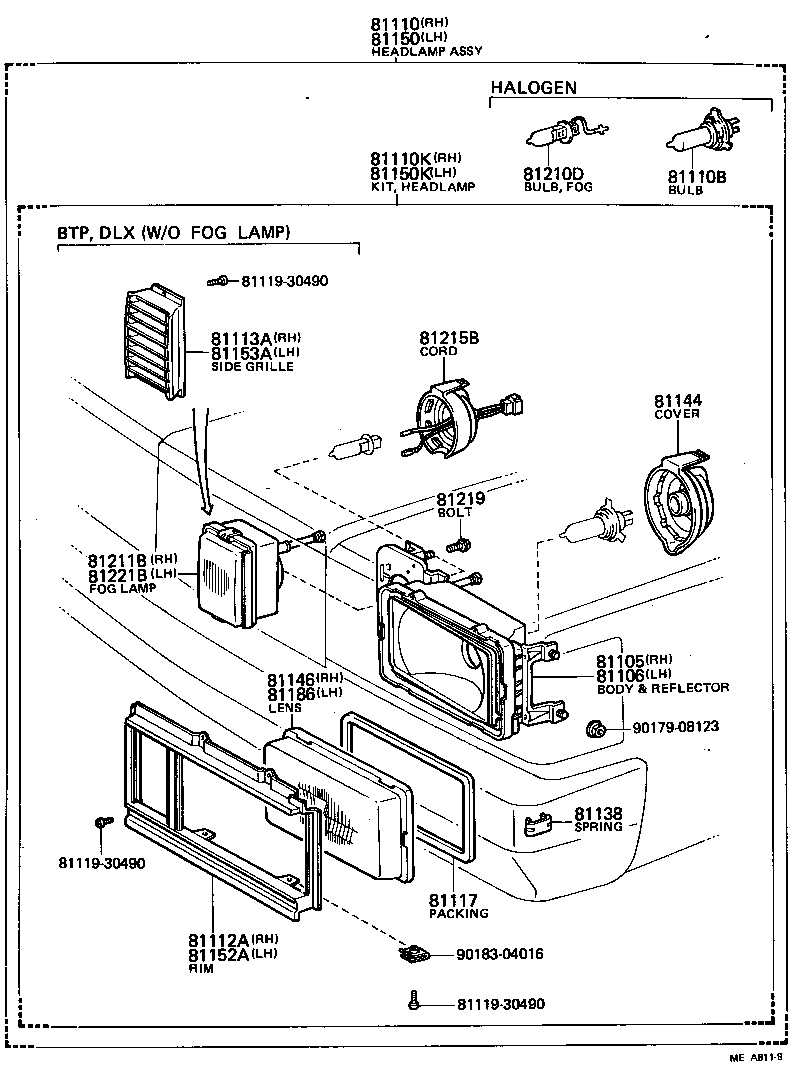

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110K 81112A 81113A 81117 8111930490 8111930490 8111930490 81138 81144 81146 81150 81150K 81152A 81153A 81186 81210D 81211B 81215B 81219 81221B 9017908123 9018304016
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-30430

LS110,MS11#,RS110

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-30540

LS110,MS11#,RS110

 1
81110 - HEADLAMP ASSY, RH
81110-39535

LS110,MS11#,RS110..RHD..GEN

 1
81110-39535

LS110,MS112,RS110..RHD..(BTP,DLX)

 1
81144 - COVER, HEADLAMP, NO.1
81139-30490

LS110,MS112,RS110

 2
81150 - HEADLAMP ASSY, LH
81150-39535

LS110,MS11#,RS110..RHD..GEN

 1
81150-39535

LS110,MS112,RS110..RHD..(BTP,DLX)

 1
Common parts
81119-30490
90179-08123
90183-04016
