RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )RS110..RHD

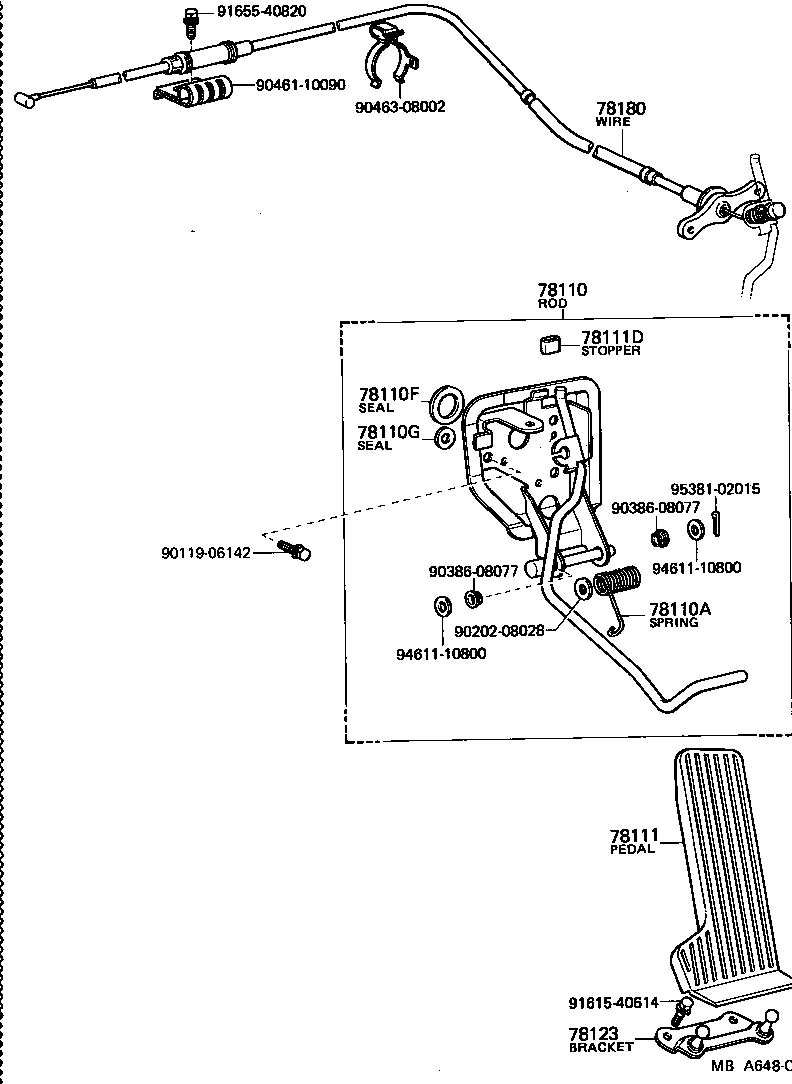

Click highlighted areas on diagram

diagram 78110 78110A 78110F 78110G 78111 78111D 78123 78180 9011906142 9020208028 9038608077 9038608077 9046110090 9046308002 9161540614 9165540820 9461110800 9461110800 9538102015
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30210

MS11#,RS110..RHD..MTM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29010

MS11#,RS110..RHD..MTM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

LS110,MS11#,RS110..RHD

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

LS110,MS11#,RS110..RHD

 3
78111 - PEDAL, ACCELERATOR
78111-30080

LS110,MS11#,RS110..RHD

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

LS110,MS11#,RS110..RHD

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30040

LS110,MS11#,RS110..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30060

RS110..RHD

 1
Common parts
90119-06142
90202-08028
90386-08077
90461-10090
90463-08002
91615-40614
91655-40820
94611-10800
95381-02015
