RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

Click highlighted areas on diagram

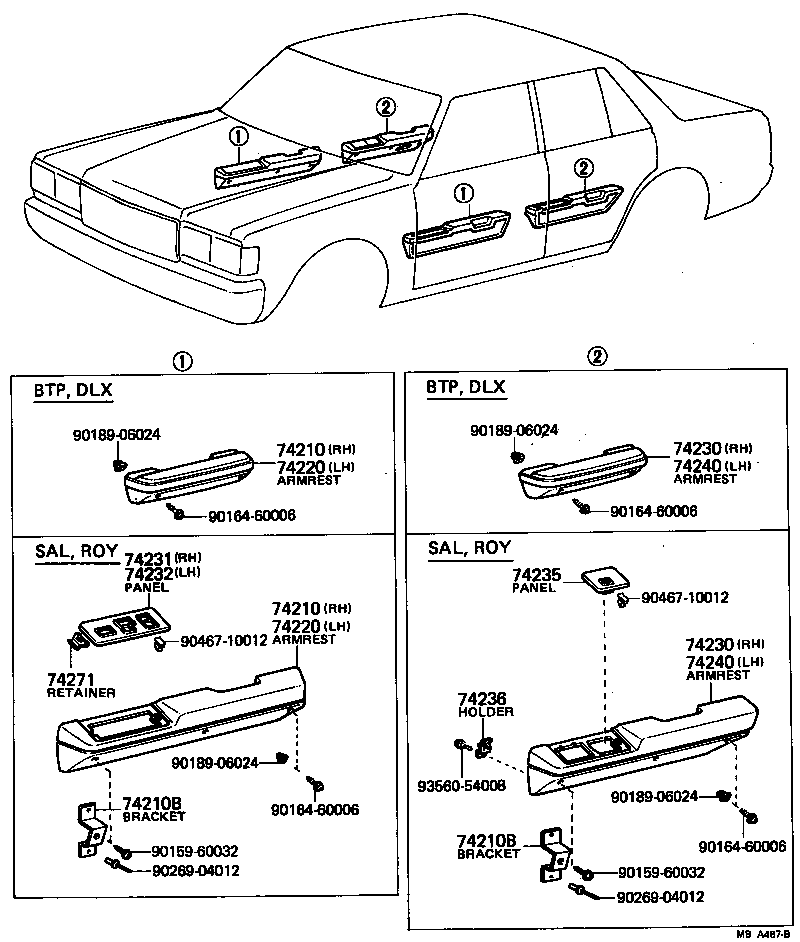

diagram 74210 74210 74210B 74210B 74220 74220 74230 74230 74231 74232 74235 74236 74240 74240 74271 9015960032 9015960032 9016460006 9016460006 9016460006 9016460006 9018906024 9018906024 9018906024 9018906024 9026904012 9026904012 9046710012 9046710012 9356054008
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74230 - ARMREST ASSY, REAR, RH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74230 - ARMREST ASSY, REAR, RH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74240 - ARMREST ASSY, REAR, LH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
74240 - ARMREST ASSY, REAR, LH
74210-3008004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74210-3008015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 1
Common parts
90159-60032
90164-60006
90189-06024
90269-04012
90467-10012
93560-54008

(7909- )

Click highlighted areas on diagram

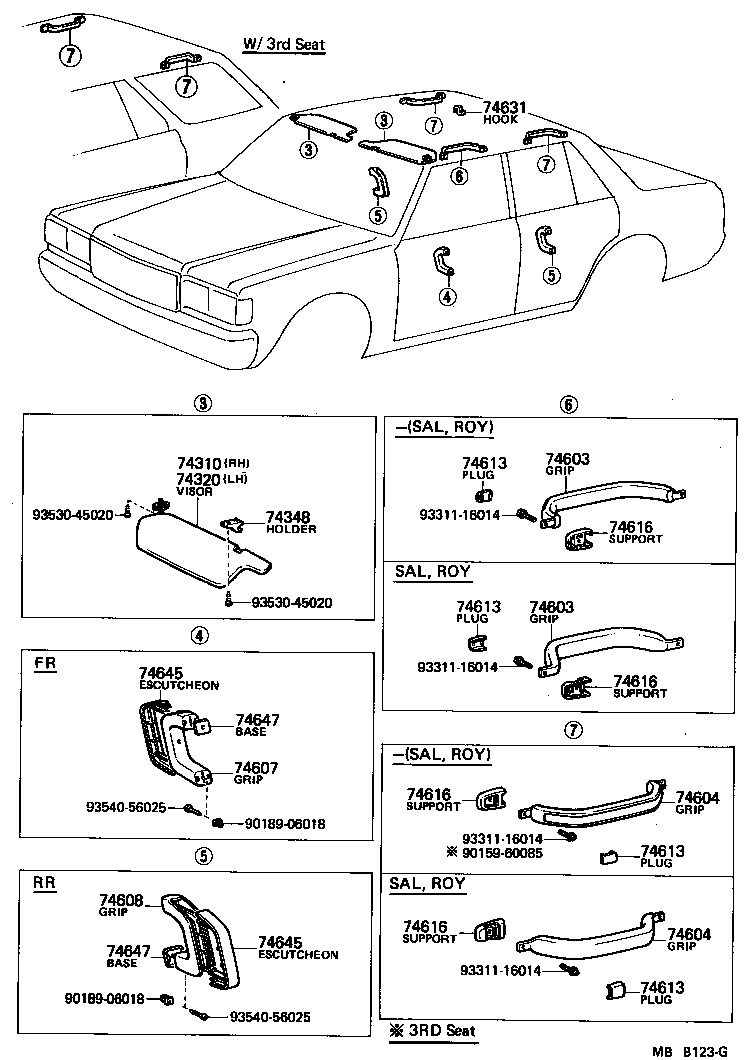

diagram 74310 74320 74348 74603 74603 74604 74604 74607 74608 74613 74613 74613 74613 74616 74616 74616 74616 74631 74645 74645 74647 74647 9015960085 9018906018 9018906018 9331116014 9331116014 9331116014 9331116014 9353045020 9353045020 9354056025 9354056025
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-3017008

LS110,MS11#,RS110..RHD..(BTP,DLX)

IVORY,IVORY,TRIM4#

 1
74310-3017004

LS110,MS11#,RS110..RHD..(BTP,DLX)

BLUE,BLUE,TRIM8#

 1
74320 - VISOR ASSY, LH
74320-3017008

LS110,MS11#,RS110..RHD..(BTP,DLX)

IVORY,IVORY,TRIM4#

 1
74320-3017004

LS110,MS11#,RS110..RHD..(BTP,DLX)

BLUE,BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1201008

LS110,MS11#,RS110

IVORY,IVORY,TRIM3#,4#

 2
74348-1201004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-3005004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74610-3005008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-3005004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 1
74610-3005008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-3005008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 2
74610-3005004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-3005008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 2
74610-3005004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 2
74613 - PLUG, ASSIST GRIP
74617-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74617-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74617-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74617-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74613 - PLUG, ASSIST GRIP
74617-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74617-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74616 - SUPPORT, ASSIST GRIP PLATE
74671-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74671-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74616 - SUPPORT, ASSIST GRIP PLATE
74671-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74671-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74616 - SUPPORT, ASSIST GRIP PLATE
74671-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74671-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
74616 - SUPPORT, ASSIST GRIP PLATE
74671-2201004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 6
74671-2201008

LS110,MS11#,RS110..BTP,DLX

IVORY,IVORY,TRIM4#

 6
Common parts
90159-60085
90189-06018
93311-16014
93530-45020
93540-56025
