RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

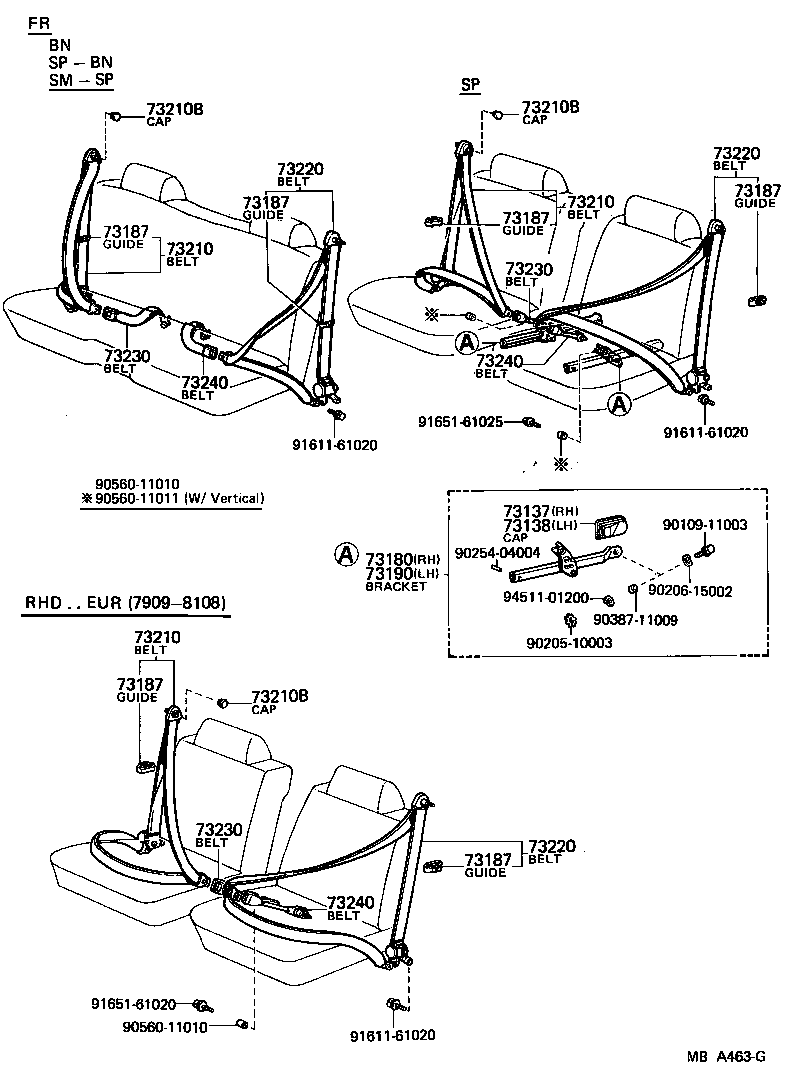

Click highlighted areas on diagram

diagram 73137 73138 73180 73187 73187 73187 73187 73187 73187 73190 73210 73210 73210 73210B 73210B 73210B 73220 73220 73220 73230 73230 73230 73240 73240 73240 9010911003 9020510003 9020615002 9025404004 9038711009 9056011010 9056011010 9056011011 9161161020 9161161020 9161161020 9165161020 9165161025 9451101200
Part # Description Qty Price
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-30010

LS110,MS11#,RS110

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-3024004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73210-3024005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73210-3024002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-3024004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73210-3024005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73210-3024002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-3024004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73210-3024005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73210-3024002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
73178-1201004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
73178-1201035

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
73178-1201004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
73178-1201035

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
73178-1201004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
73178-1201035

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-3004002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220-3004004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73220-3004005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-3004002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220-3004004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73220-3004005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-3004002

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220-3004004

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73220-3004005

LS110,MS11#,RS110..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-3018002

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018004

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018005

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
73230-3018102

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

DARK WINE,RED/MAROON,TRIM3#

 1
73230-3018104

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

BLUE,BLUE,TRIM8#

 1
73230-3018105

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

GREIGE,BEIGE,TRIM4#

 1
Common parts
90109-11003
90205-10003
90206-15002
90254-04004
90387-11009
90560-11010
90560-11011
91611-61020
91651-61020
91651-61025
94511-01200

(7909- )

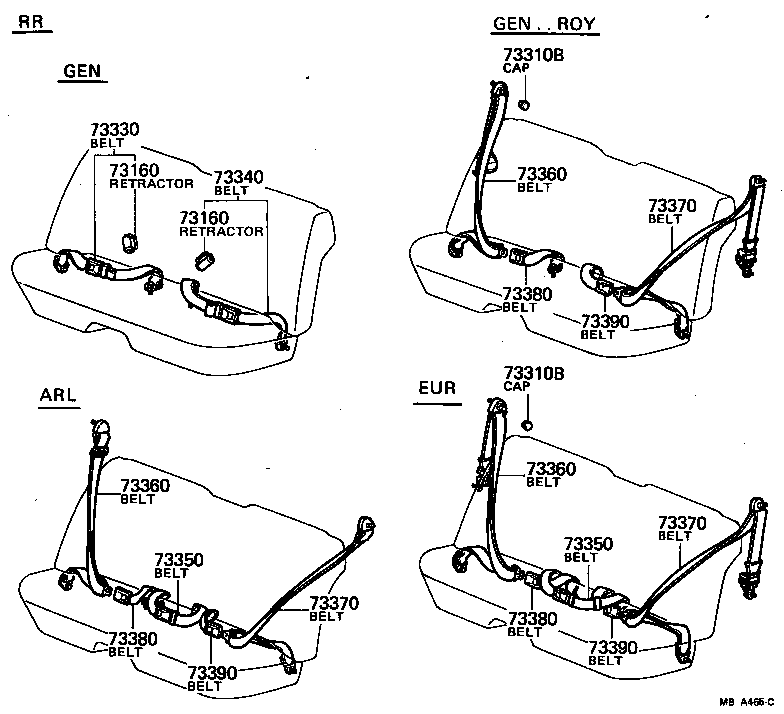

Click highlighted areas on diagram

diagram 73160 73160 73310B 73310B 73330 73340 73350 73350 73360 73360 73360 73370 73370 73370 73380 73380 73380 73390 73390 73390
Part # Description Qty Price
73160 - RETRACTOR ASSY, SEAT BELT NON-LOCKING
71890-30010

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

 2
73160 - RETRACTOR ASSY, SEAT BELT NON-LOCKING
71890-30010

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

 2
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-3007005

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73330-3007002

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-3007102

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-3007105

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73330-3007104

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73330-3007004

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-3007005

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73330-3007102

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-3007104

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
73330-3007002

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-3007105

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

GREIGE,BEIGE,TRIM4#

 1
73330-3007004

MS11#,RS110..SED..(BTP,DLX,SAL)..GEN

BLUE,BLUE,TRIM8#

 1
