RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )RHD

Click highlighted areas on diagram

diagram 71071P 71073P 71074P 71410P 71430P 71440P 71511P 71513B 71551P 71552P 71565 71567 71567 71610P 71630P 71640P 71811D 71812A 71812A 71812A 71824 71826 71950 71956A 71956A 72510 72510A 72519 72537 72707 72760 72773 72791 74650 74658 74659 9011910177 9011910178 9011910178 9015480004 9016840043 9038612099 9052001002 9056414155 9161160614 9324954006 9351014016 9354055010 9356014010 9356014010 9616001000
Part # Description Qty Price
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-3022004

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

BLUE,BLUE,TRIM8#

 2
71910-3022005

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

GREIGE,BEIGE,TRIM4#

 2
71910-3022015

LS110,MS112,RS110..(BTP,DLX)..GEN

BEIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
Common parts
90119-10177
90119-10178
90154-80004
90168-40043
90386-12099
90520-01002
90564-14155
91611-60614
93249-54006
93510-14016
93540-55010
93560-14010
96160-01000

(7909- )RHD

Click highlighted areas on diagram

diagram 6777220021 6777220021 71071P 71073P 71074P 71105 71106 7132830010 7132830010 71410P 71430P 71440P 71511P 71551P 71552P 71567 71567 71610P 71630P 71640P 71705 71706 71803 71804 71805 71810 71811D 71812A 71812A 71812A 71812D 71824 71825 71826 71863 71950 71956A 71956A 72510 72510A 72519 72520 72707 72760 72773 72791 74650 74658 74659 9011606009 9011910177 9011910178 9015480004 9016840043 9038612099 9052001002 9056414155 9161160614 9322915012 9324954006 9353054020 9353054020 9354055010 9356014010 9356015010 9358014010 9411540500 9451100600 9461110501 9461110601 9616001000
Part # Description Qty Price
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-3022004

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

BLUE,BLUE,TRIM8#

 2
71910-3022005

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

GREIGE,BEIGE,TRIM4#

 2
71910-3022015

LS110,MS112,RS110..(BTP,DLX)..GEN

BEIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
Common parts
67772-20021
71328-30010
90116-06009
90119-10177
90119-10178
90154-80004
90168-40043
90386-12099
90520-01002
90564-14155
91611-60614
93229-15012
93249-54006
93530-54020
93540-55010
93560-14010
93560-15010
93580-14010
94115-40500
94511-00600
94611-10501
94611-10601
96160-01000

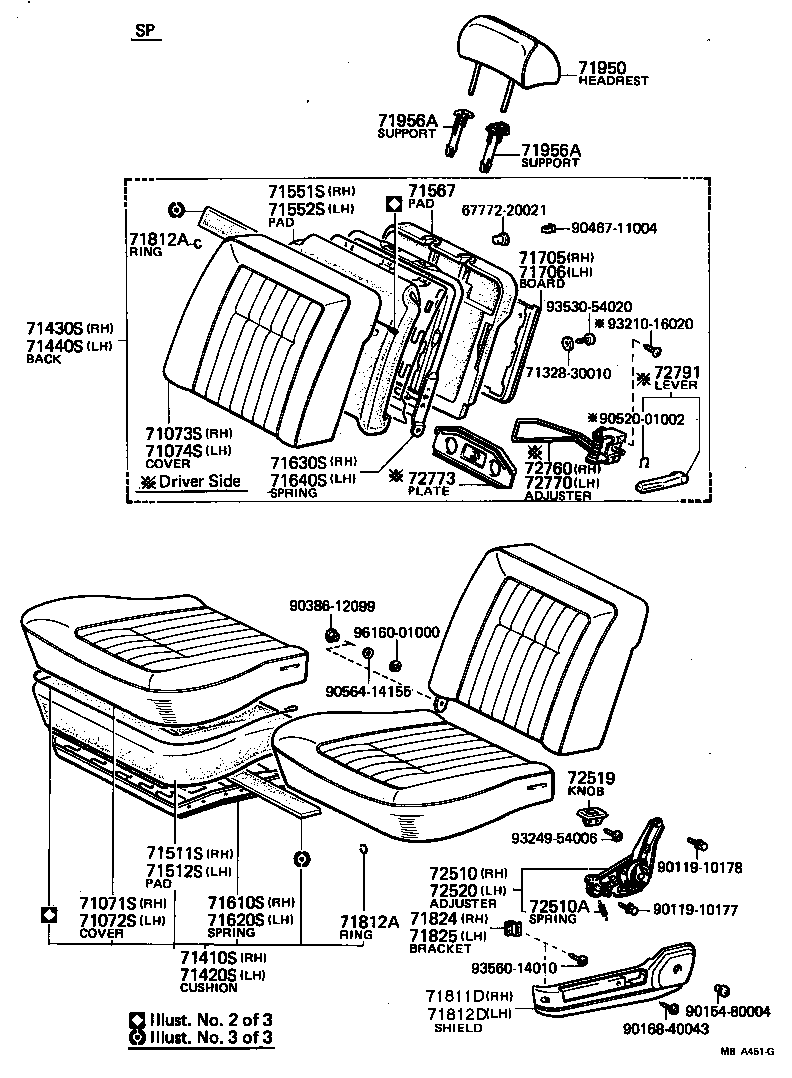

(7909- )

Click highlighted areas on diagram

diagram 6777220021 71071S 71072S 71073S 71074S 7132830010 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71567 71610S 71620S 71630S 71640S 71705 71706 71811D 71812A 71812A 71812D 71824 71825 71950 71956A 71956A 72510 72510A 72519 72520 72760 72770 72773 72791 9011910177 9011910178 9015480004 9016840043 9038612099 9046711004 9052001002 9056414155 9321016020 9324954006 9353054020 9356014010 9616001000
Part # Description Qty Price
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-3022004

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

BLUE,BLUE,TRIM8#

 2
71910-3022005

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

GREIGE,BEIGE,TRIM4#

 2
71910-3022015

LS110,MS112,RS110..(BTP,DLX)..GEN

BEIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
Common parts
67772-20021
71328-30010
90119-10177
90119-10178
90154-80004
90168-40043
90386-12099
90467-11004
90520-01002
90564-14155
93210-16020
93249-54006
93530-54020
93560-14010
96160-01000

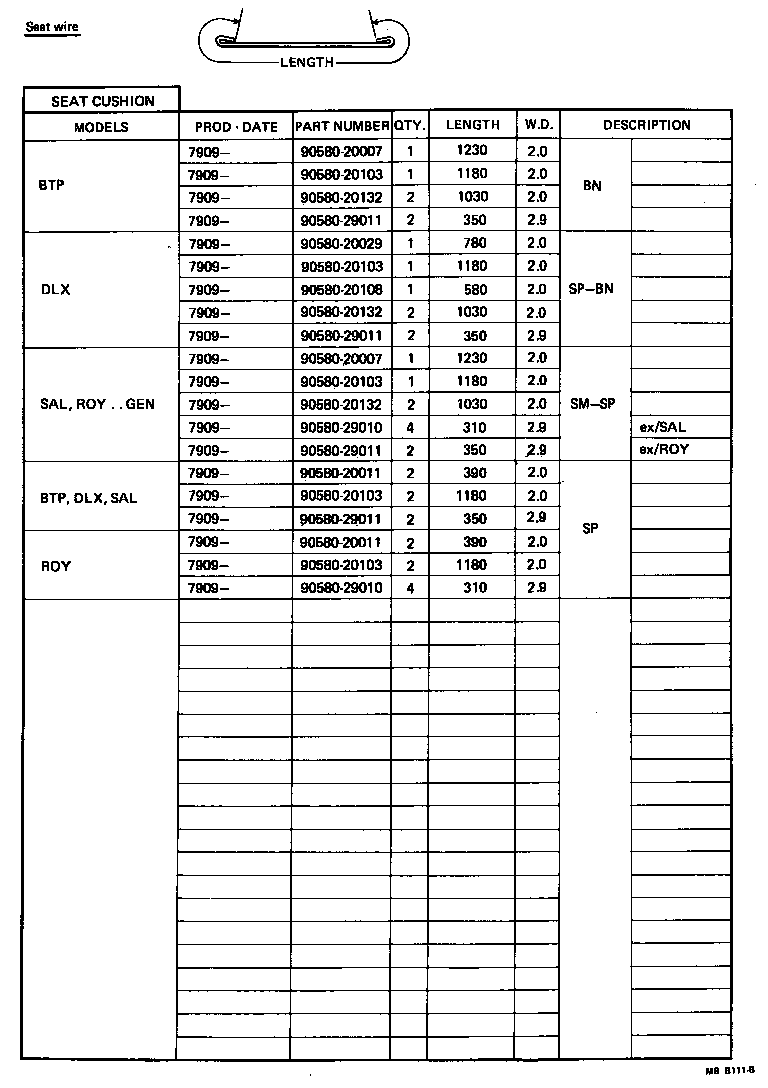

(7909-8108)

Click highlighted areas on diagram

diagram 9058020007 9058020007 9058020011 9058020011 9058020029 9058020103 9058020103 9058020103 9058020103 9058020103 9058020108 9058020132 9058020132 9058020132 9058029010 9058029010 9058029011 9058029011 9058029011 9058029011
Part # Description Qty Price
Common parts
90580-20007
90580-20011
90580-20029
90580-20103
90580-20108
90580-20132
90580-29010
90580-29011

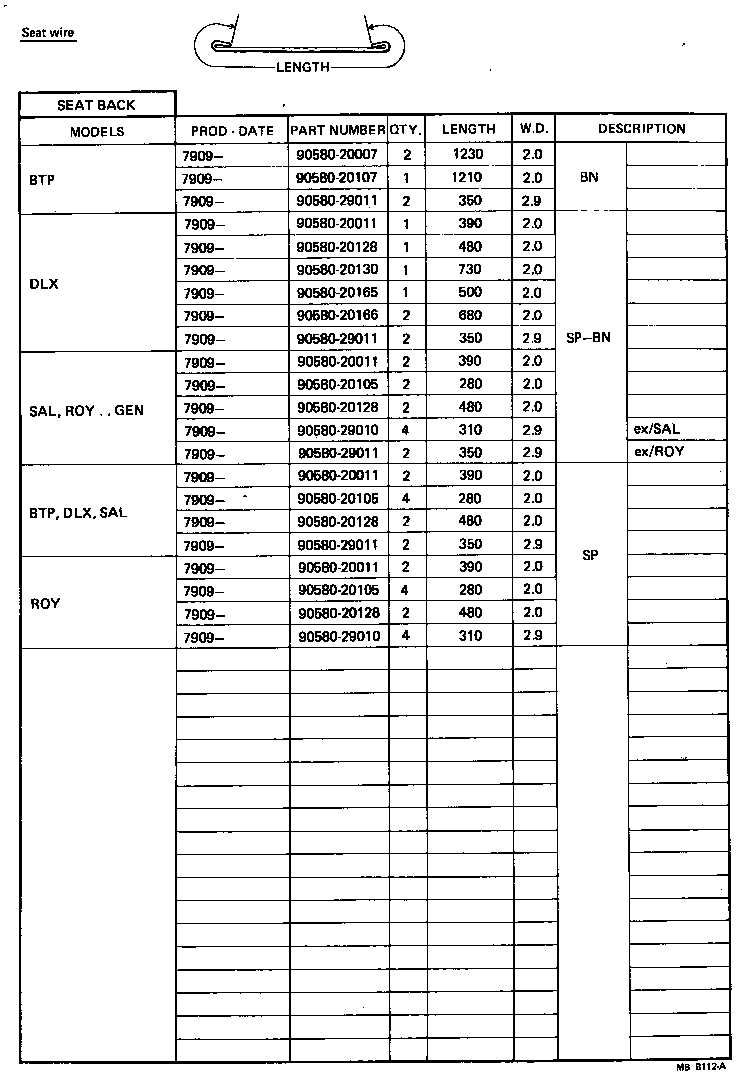

(7909-8108)

Click highlighted areas on diagram

diagram 9058020007 9058020011 9058020011 9058020011 9058020011 9058020105 9058020105 9058020105 9058020107 9058020128 9058020128 9058020128 9058020128 9058020130 9058020165 9058020166 9058029010 9058029010 9058029011 9058029011 9058029011 9058029011
Part # Description Qty Price
Common parts
90580-20007
90580-20011
90580-20105
90580-20107
90580-20128
90580-20130
90580-20165
90580-20166
90580-29010
90580-29011

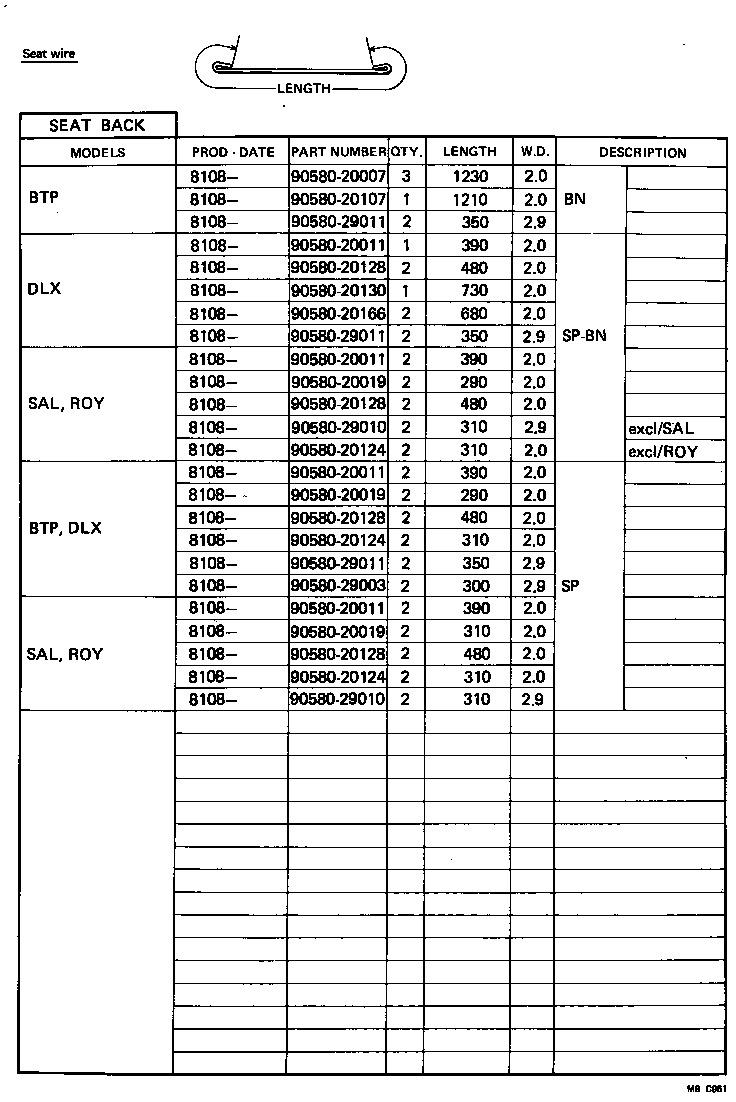

(8108- )

Click highlighted areas on diagram

diagram 9058020007 9058020007 9058020007 9058020007 9058020011 9058020011 9058020029 9058020103 9058020103 9058020103 9058020108 9058020132 9058020132 9058020132 9058029003 9058029010 9058029010 9058029011 9058029011 9058029011
Part # Description Qty Price
Common parts
90580-20007
90580-20011
90580-20029
90580-20103
90580-20108
90580-20132
90580-29003
90580-29010
90580-29011

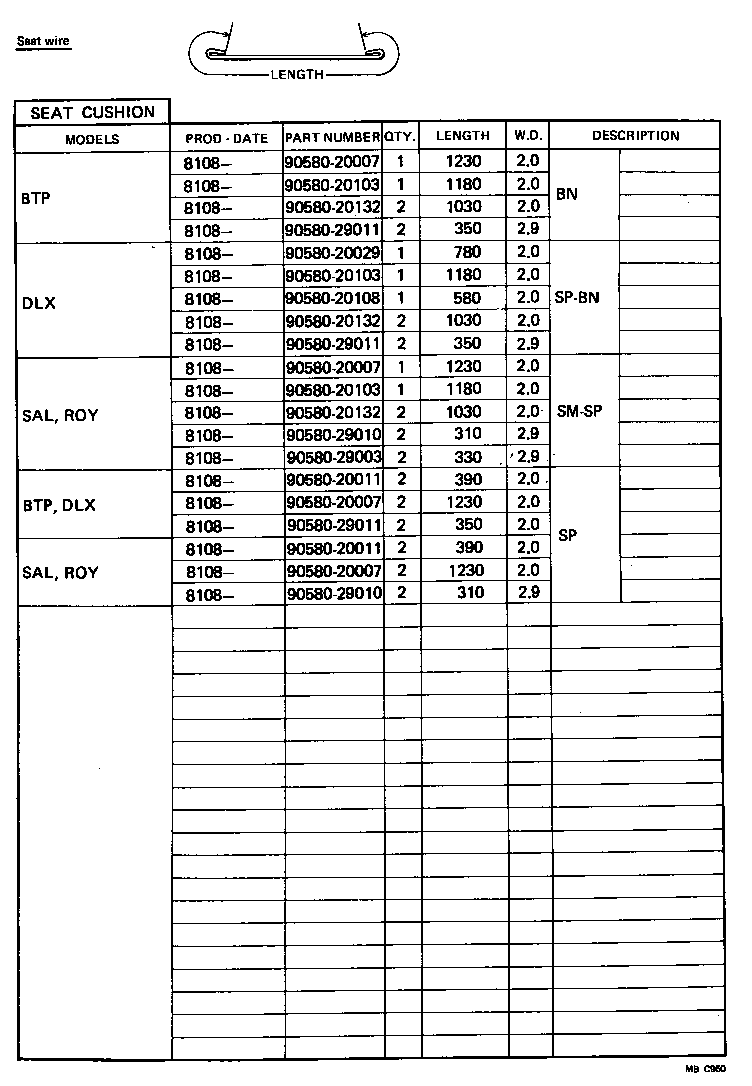

(8108- )

Click highlighted areas on diagram

diagram 9058020007 9058020011 9058020011 9058020011 9058020011 9058020019 9058020019 9058020019 9058020107 9058020124 9058020124 9058020124 9058020128 9058020128 9058020128 9058020128 9058020130 9058020166 9058029003 9058029010 9058029010 9058029011 9058029011 9058029011
Part # Description Qty Price
Common parts
90580-20007
90580-20011
90580-20019
90580-20107
90580-20124
90580-20128
90580-20130
90580-20166
90580-29003
90580-29010
90580-29011

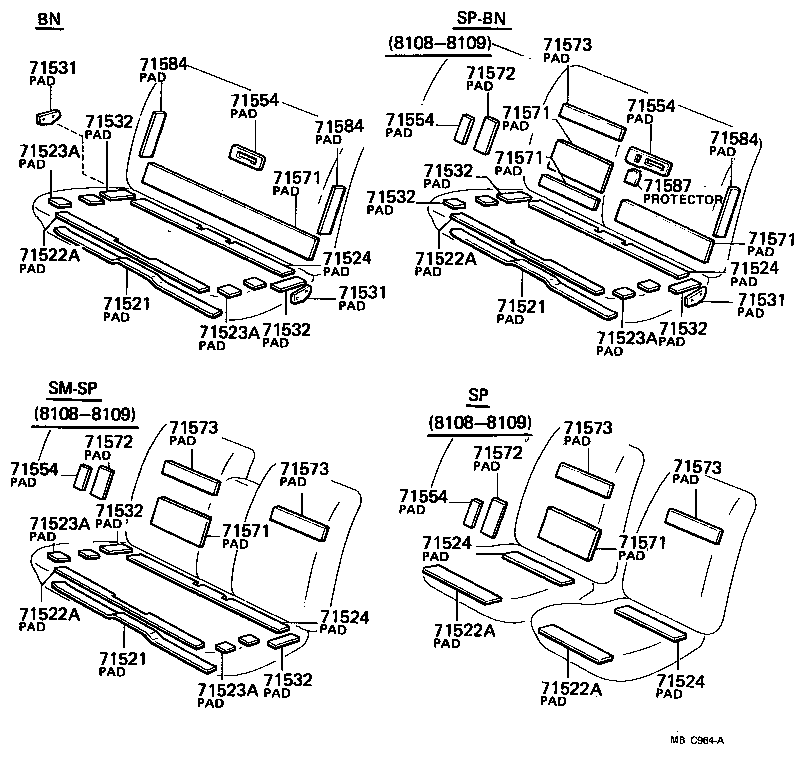

(8108- )

Click highlighted areas on diagram

diagram 71521 71521 71521 71522A 71522A 71522A 71522A 71522A 71523A 71523A 71523A 71523A 71523A 71524 71524 71524 71524 71524 71531 71531 71531 71532 71532 71532 71532 71532 71532 71532 71554 71554 71554 71554 71554 71571 71571 71571 71571 71571 71571 71572 71572 71572 71573 71573 71573 71573 71573 71584 71584 71584 71587
Part # Description Qty Price
71554 - PAD, FRONT SEAT BACK, C
71554-30270

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71554 - PAD, FRONT SEAT BACK, C
71554-30270

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71554 - PAD, FRONT SEAT BACK, C
71554-30270

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71554 - PAD, FRONT SEAT BACK, C
71554-30270

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71554 - PAD, FRONT SEAT BACK, C
71554-30270

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30030

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30030

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30030

LS110,MS112,RS110

W/LUMBER,SP-BN,SM-SP,SP

 1

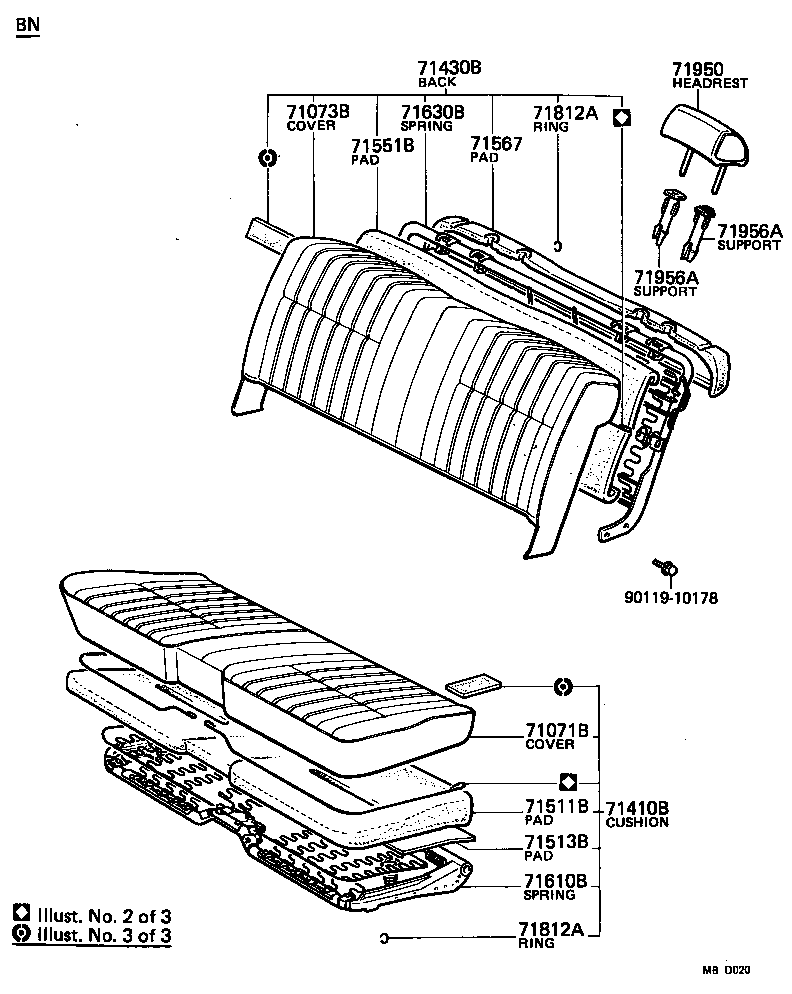

(7909- )

Click highlighted areas on diagram

diagram 71071B 71073B 71410B 71430B 71511B 71513B 71551B 71567 71610B 71630B 71812A 71812A 71950 71956A 71956A 9011910178
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-3077005

LS110,MS11#,RS110..4H..BTP

PF,GREIGE,BEIGE,TRIM4#

 1
71071-3077004

LS110,MS11#,RS110..4H..BTP

PF,BLUE,BLUE,TRIM8#

 1
71071-3077003

LS110,RS110..4H

PF,GRAY,GRAY,TRIM1#

 1
71071-3077015

LS110,RS110..4H

PF,BEIGE,BEIGE,TRIM4#

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-3068015

LS110,RS110..4H

PF,BEIGE,BEIGE,TRIM4#

 1
71073-3068005

LS110,MS11#,RS110..4H..BTP

PF,GREIGE,BEIGE,TRIM4#

 1
71073-3068003

LS110,RS110..4H

PF,GRAY,GRAY,TRIM1#

 1
71073-3068004

LS110,MS11#,RS110..4H..BTP

PF,BLUE,BLUE,TRIM8#

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-3A02004

LS110,MS11#,RS110..4H..BTP

PF,BLUE,BLUE,TRIM8#

 1
71410-3A02015

LS110,RS110..4H

PF,BEIGE,BEIGE,TRIM4#

 1
71410-3A02003

LS110,RS110..4H

PF,GRAY,GRAY,TRIM1#

 1
71410-3A02005

LS110,MS11#,RS110..4H..BTP

PF,GREIGE,BEIGE,TRIM4#

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-3A21015

LS110,RS110..4H

PF,BEIGE,BEIGE,TRIM4#

 1
71430-3A21004

LS110,MS11#,RS110..4H..BTP

PF,BLUE,BLUE,TRIM8#

 1
71430-3A21005

LS110,MS11#,RS110..4H..BTP

PF,GREIGE,BEIGE,TRIM4#

 1
71430-3A21003

LS110,RS110..4H

PF,GRAY,GRAY,TRIM1#

 1
71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
71511-30470

LS110,MS11#,RS110..4H..BTP

 1
71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE)
71505-30030

LS110,MS11#,RS110..4H..BTP

 1
71567 - PAD, FRONT SEAT BACK SAFETY
71567-30020

LS110,MS11#,RS110..SED..4H..BTP

BN

 1
71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
71610-30240

LS110,MS11#,RS110..4H..BTP

 1
71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE)
71630-30310

LS110,MS11#,RS110..4H..BTP

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

LS110,MS11#,RS110

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-3022004

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

BLUE,BLUE,TRIM8#

 2
71910-3022005

LS110,MS111,RS110..SED..(BTP,DLX)..GEN

GREIGE,BEIGE,TRIM4#

 2
71910-3022015

LS110,MS112,RS110..(BTP,DLX)..GEN

BEIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71930-1006002

LS110,MS11#,RS110

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001002

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

 2
71931-1001015

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71930-1006004

LS110,MS11#,RS110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

 2
71931-1001004

LS110,MS11#,RS110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

 2
71930-1006015

LS110,MS11#,RS110

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

 2
Common parts
90119-10178
