RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED

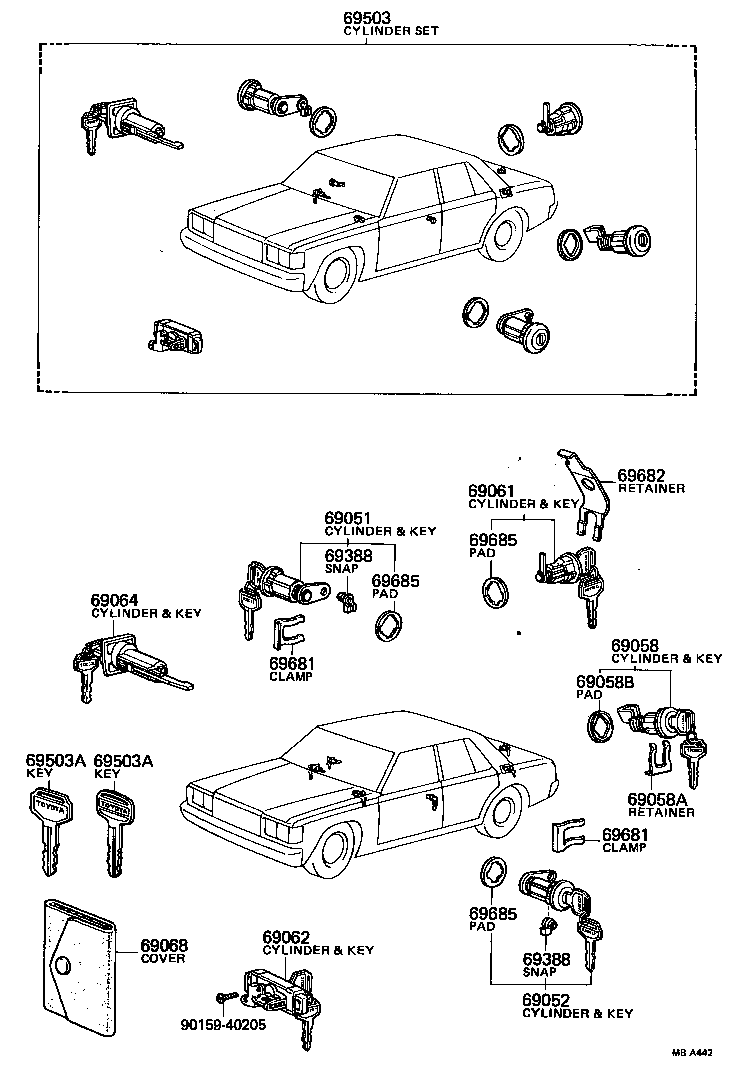

Click highlighted areas on diagram

diagram 69051 69052 69058 69058A 69058B 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69681 69681 69682 69685 69685 69685 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-39035

LS110,MS11#,RS110

 1
69051-39036

LS110,MS11#,RS110

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-39035

LS110,MS11#,RS110

 1
69052-39036

LS110,MS11#,RS110

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-39025

LS110,MS11#,RS110

 1
69058A - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

LS110,MS11#,RS110

 1
69058B - PAD, FUEL FILLER LID CYLINDER
69513-14010

LS110,MS11#,RS110

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-39015

LS110,MS11#,RS110..SED

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-3002004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
69056-3002002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
69056-3002005

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-30020

LS110,MS11#,RS110

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

LS110,MS11#,RS110

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

LS110,MS11#,RS110

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

LS110,MS11#,RS110

 2
69503 - CYLINDER SET, LOCK
69005-3015002

LS110,MS11#,RS110..SED

DARK WINE,RED/MAROON,TRIM3#

 1
69005-3015004

LS110,MS11#,RS110..SED

BLUE,BLUE,TRIM8#

 1
69005-3015005

LS110,MS11#,RS110..SED

GREIGE,BEIGE,TRIM4#

 1
69503A - KEY, BLANK
90999-00077

LS110,MS11#,RS110

MASTER KEY

 1
90999-00078

LS110,MS11#,RS110

SUB KEY

 1
69503A - KEY, BLANK
90999-00077

LS110,MS11#,RS110

MASTER KEY

 1
90999-00078

LS110,MS11#,RS110

SUB KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

LS110,MS11#,RS110

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

LS110,MS11#,RS110

 2
69682 - RETAINER, LOCK CYLINDER
69561-30020

LS110,MS11#,RS110..SED

LUGGAGE

 1
69685 - PAD, LOCK CYLINDER
69685-12010

LS110,MS11#,RS110

 3
69685 - PAD, LOCK CYLINDER
69685-12010

LS110,MS11#,RS110

 3
69685 - PAD, LOCK CYLINDER
69685-12010

LS110,MS11#,RS110

 3
Common parts
90159-40205
