RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

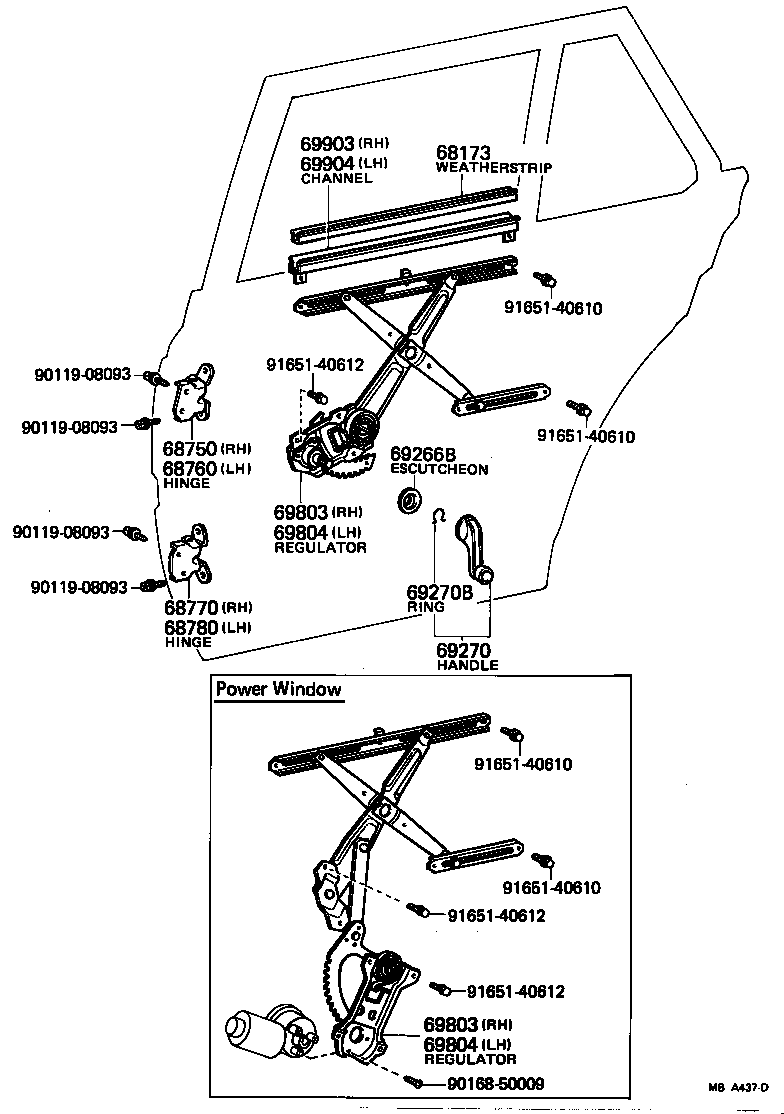

Click highlighted areas on diagram

diagram 68173 68750 68760 68770 68780 69266B 69270 69270B 69803 69803 69804 69804 69903 69904 9011908093 9011908093 9011908093 9011908093 9016850009 9165140610 9165140610 9165140610 9165140610 9165140612 9165140612 9165140612
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69975-20020

LS110,MS11#,RS110

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-30070

LS110,MS11#,RS110

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-30010

LS110,MS11#,RS110

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-20070

LS110,MS11#,RS110

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-20070

LS110,MS11#,RS110

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69272-30010

LS110,MS11#,RS110..BTP,DLX

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-2202015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 2
69260-2202004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

LS110,MS11#,RS110

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-30150

LS110,MS11#,RS110..BTP,DLX

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-30150

LS110,MS11#,RS110..BTP,DLX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-30150

LS110,MS11#,RS110..BTP,DLX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-30150

LS110,MS11#,RS110..BTP,DLX

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-20010

LS110,MS11#,RS110

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-20010

LS110,MS11#,RS110

 1
Common parts
90119-08093
90168-50009
91651-40610
91651-40612
