RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

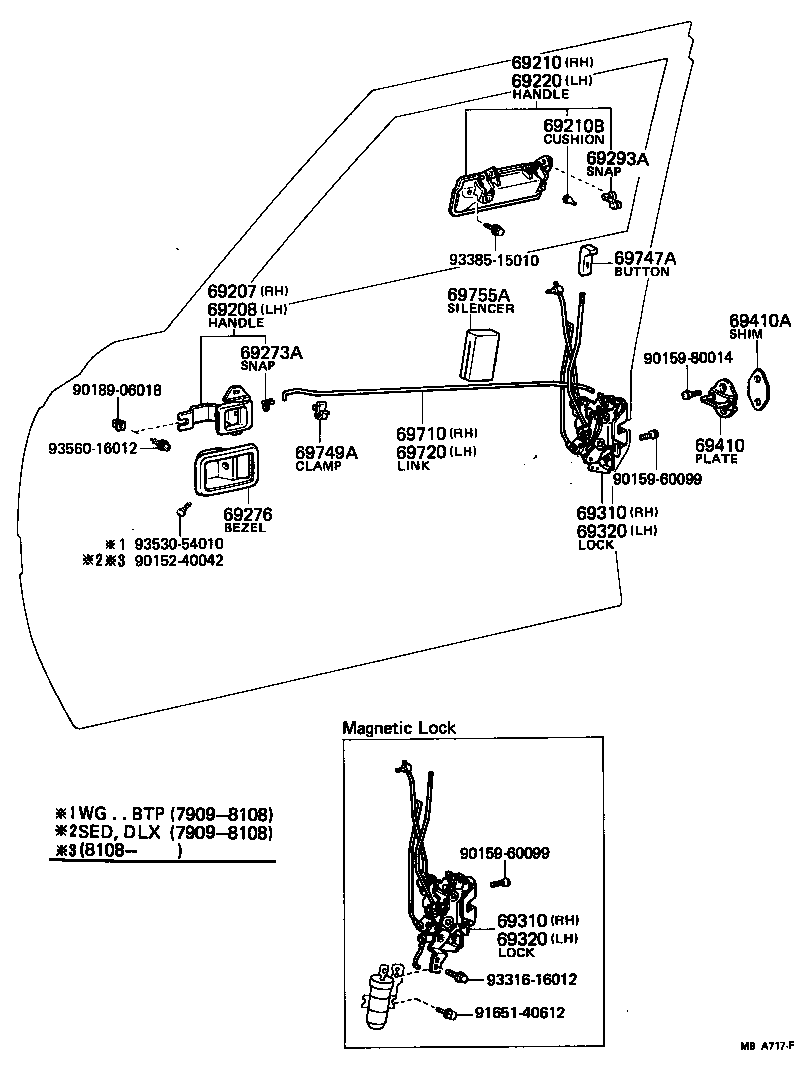

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273A 69276 69293A 69310 69310 69320 69320 69410 69410A 69710 69720 69747A 69749A 69755A 9015240042 9015960099 9015960099 9015980014 9018906018 9165140612 9331616012 9338515010 9353054010 9356016012
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30010

LS110,MS11#,RS110

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

LS110,MS11#,RS110

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30080

LS110,MS11#,RS110

 1
69210-30140

LS110,MS112,RS110

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

LS110,MS11#,RS110

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-30080

LS110,MS11#,RS110

 1
69220-30120

LS110,MS112,RS110

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69279-12020

LS110,MS11#,RS110

RH

 1
69288-12010

LS110,MS11#,RS110

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-30030

LS110,MS11#,RS110..SED

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30280

LS110,RS110..RHD..BTP

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30280

LS110,RS110..RHD..BTP

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30300

LS110,RS110..RHD..BTP

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30300

LS110,RS110..RHD..BTP

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12040

LS110,MS11#,RS110

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-30050

LS110,MS11#,RS110

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-30060

LS110,MS11#,RS110

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3002004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 2
69741-3002005

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 2
69741-3002002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

LS110,MS11#,RS110

 2
69755A - SILENCER, FRONT DOOR LOCK LINK
69759-30021

LS110,MS11#,RS110

 2
Common parts
90152-40042
90159-60099
90159-80014
90189-06018
91651-40612
93316-16012
93385-15010
93530-54010
93560-16012
