RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

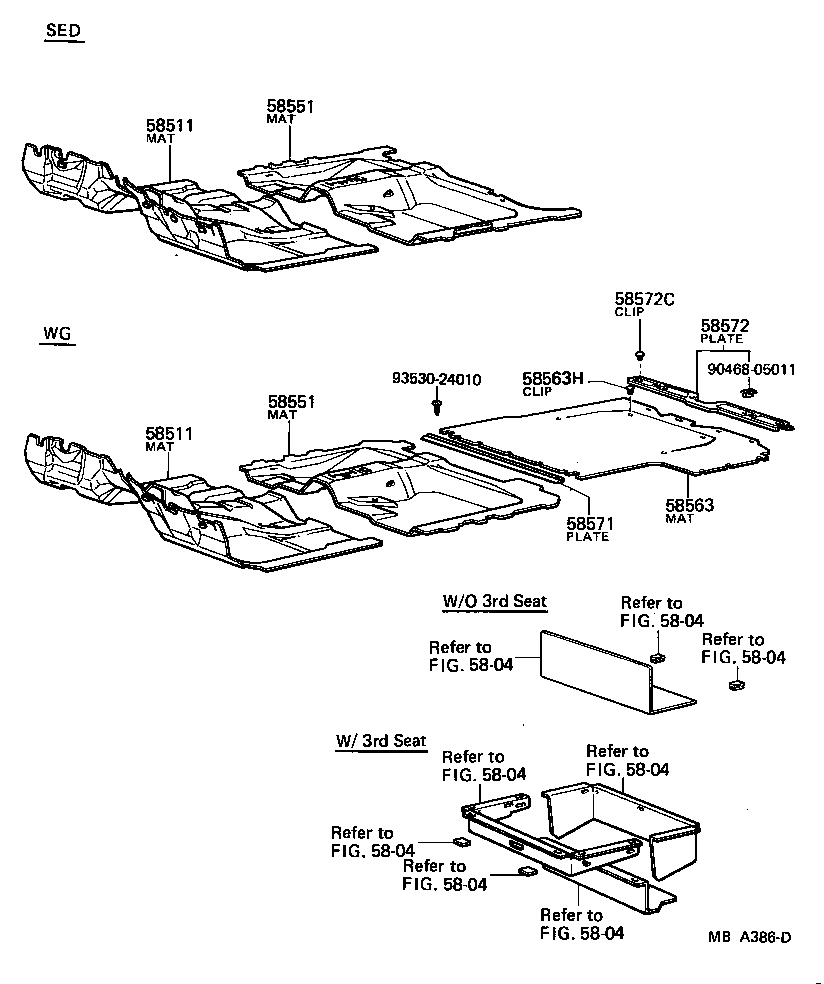

Click highlighted areas on diagram

diagram 5804 5804 5804 5804 5804 5804 5804 5804 58511 58511 58551 58551 58563 58563H 58571 58572 58572C 9046805011 9353024010
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58510-30770

LS110,RS110..RHD..4H

 1
58511 - MAT, FLOOR, FRONT
58510-30770

LS110,RS110..RHD..4H

 1
58551 - MAT, FLOOR, REAR
58540-30490

LS110,MS11#,RS110..SED..4H..BTP

 1
58551 - MAT, FLOOR, REAR
58540-30490

LS110,MS11#,RS110..SED..4H..BTP

 1
Common parts
90468-05011
93530-24010
Linked diagrams
5804
