RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED

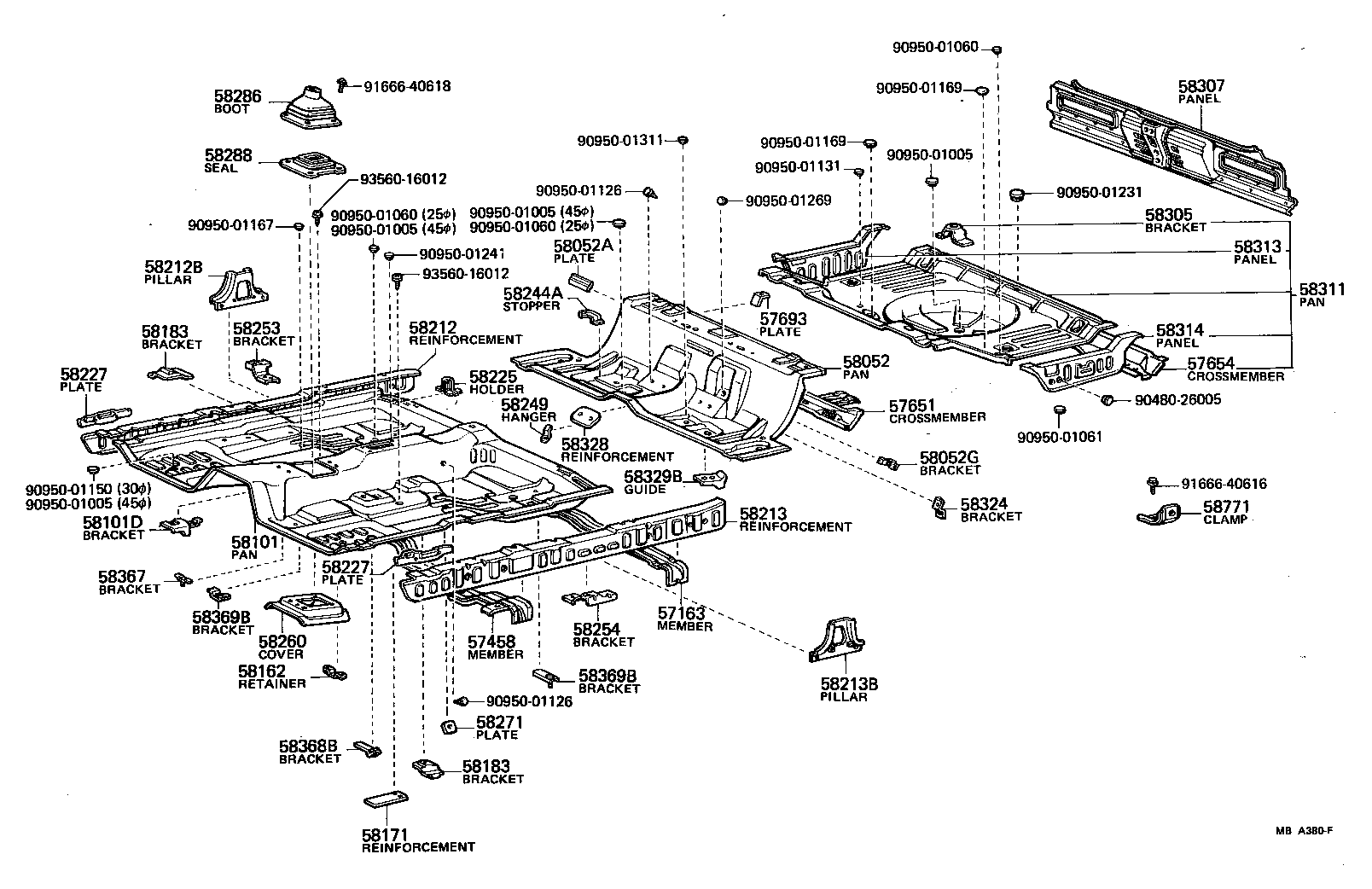

Click highlighted areas on diagram

diagram 57163 57458 57651 57654 57693 58052 58052A 58052G 58101 58101D 58162 58171 58183 58183 58212 58212B 58213 58213B 58225 58227 58227 58244A 58249 58253 58254 58260 58271 58286 58288 58305 58307 58311 58313 58314 58324 58328 58329B 58367 58368B 58369B 58369B 58771 9048026005 9095001005 9095001005 9095001005 9095001005 9095001060 9095001060 9095001060 9095001061 9095001126 9095001126 9095001131 9095001150 9095001167 9095001169 9095001169 9095001231 9095001241 9095001269 9095001311 9166640616 9166640618 9356016012 9356016012
Part # Description Qty Price
57163 - MEMBER, FRONT FLOOR CROSS, NO.2
57206-30030

LS110,MS11#,RS110..SED

 1
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57408-30040

LS110,MS11#,RS110..3HC,4H,4HC

 1
57651 - CROSSMEMBER, REAR FLOOR, FRONT
57407-30030

LS110,MS11#,RS110

 1
57654 - MEMBER, REAR FLOOR CROSS, NO.4
57654-30040

LS110,MS11#,RS110..SED

 1
57693 - PLATE, FUEL TANK BRACKET, RH
57693-30020

LS110,MS11#,RS110..SED

 2
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-30150

LS110,MS11#,RS110

 1
58052A - PLATE, REAR SEAT CUSHION SUPPORT
64225-30030

LS110,MS11#,RS110..SED

 2
58052G - BRACKET, FUEL TUBE, NO.3
58369-30010

LS110,MS11#,RS110

 2
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-30200

LS110,MS11#,RS110..3HC,4H,4HC

 1
58101D - BRACKET, PARKING BRAKE CABLE GUIDE
58265-30010

LS110,MS11#,RS110

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-30020

LS110,MS11#,RS110..RHD..(3HC,4H,4HC)

 1
58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
57411-30030

LS110,MS11#,RS110

 1
58212B - PILLAR, CENTER BODY, INNER LOWER RH
61345-30040

LS110,MS11#,RS110

 1
58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
57412-30030

LS110,MS11#,RS110

 1
58213B - PILLAR, CENTER BODY, INNER LOWER LH
61346-30040

LS110,MS11#,RS110

 1
58225 - HOLDER, REAR SEAT CUSHION
58225-30040

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)

 2
58227 - PLATE, AIR GUIDE, OUTSIDE
57422-30010

LS110,MS11#,RS110

LH

 1
57421-30010

LS110,MS11#,RS110

RH

 1
58227 - PLATE, AIR GUIDE, OUTSIDE
57422-30010

LS110,MS11#,RS110

LH

 1
57421-30010

LS110,MS11#,RS110

RH

 1
58244A - STOPPER, REAR SEAT CUSHION BRACKET
58244-30030

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)

 2
58249 - HANGER, PARKING BRAKE RETURN SPRING
58249-30020

LS110,MS11#,RS110

 1
58253 - BRACKET, FRONT SEAT, OUTER REAR RH
57468-30020

LS110,MS11#,RS110

 1
58254 - BRACKET, FRONT SEAT, OUTER REAR LH
57469-30030

LS110,MS11#,RS110

 1
58271 - PLATE, BELT ANCHOR, FRONT
58271-30030

LS110,MS11#,RS110

 2
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

LS110,MS11#,RS110..SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-30340

LS110,MS11#,RS110..SED

 1
58311 - PAN, REAR FLOOR
58301-30230

LS110,MS11#,RS110..SED

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-30050

LS110,MS11#,RS110..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
57662-30020

LS110,MS11#,RS110..SED

 1
58324 - BRACKET, FLEXIBLE HOSE
47351-30140

LS110,MS11#,RS110

 1
58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE
58028-30030

LS110,MS11#,RS110

 2
58329B - GUIDE, WIRE, NO.3
58269-30010

LS110,MS11#,RS110..3HC,4H,4HC

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-30060

LS110,MS11#,RS110

 1
58368B - BRACKET, FUEL TUBE, NO.2
58368-30010

LS110,MS11#,RS110

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30020

LS110,MS11#,RS110

RR

 1
58369-30010

LS110,MS11#,RS110

FR

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30020

LS110,MS11#,RS110

RR

 1
58369-30010

LS110,MS11#,RS110

FR

 1
58771 - CLAMP, JACK, NO.1
58795-30010

LS110,MS11#,RS110..SED

 1
Common parts
90480-26005
90950-01005
90950-01060
90950-01061
90950-01126
90950-01131
90950-01150
90950-01167
90950-01169
90950-01231
90950-01241
90950-01269
90950-01311
91666-40616
91666-40618
93560-16012
