RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

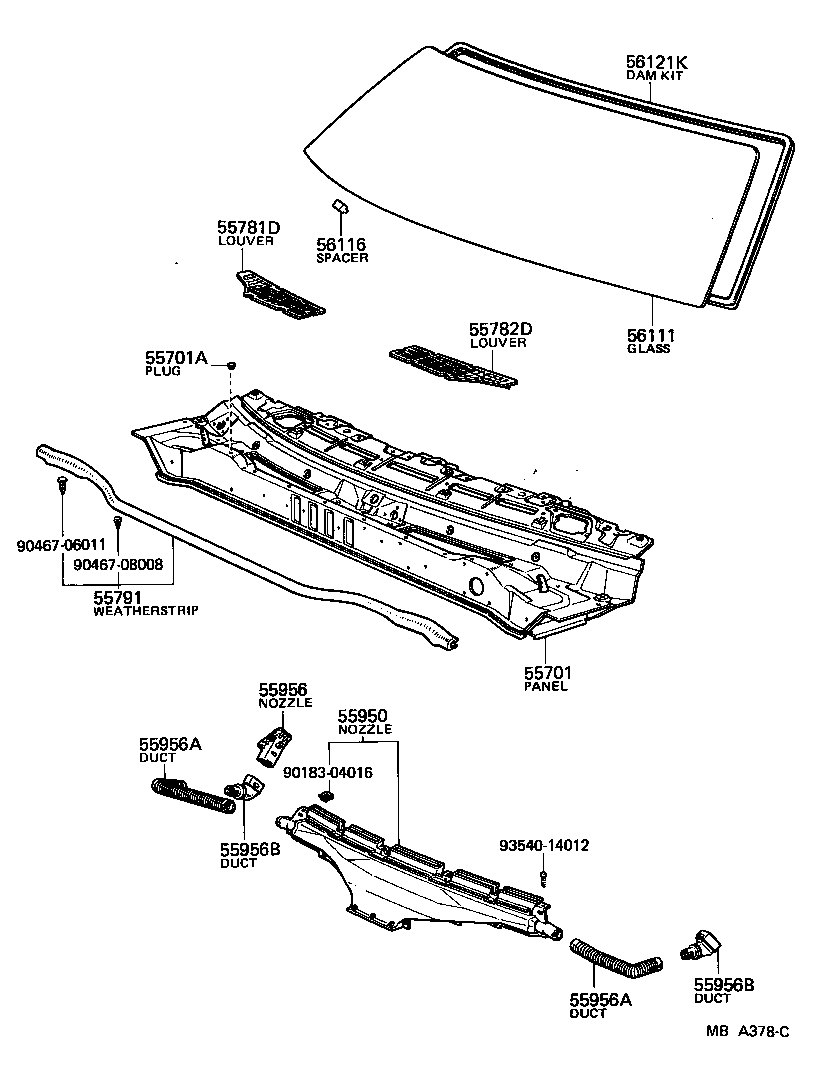

Click highlighted areas on diagram

diagram 55701 55701A 55781D 55782D 55791 55950 55956 55956A 55956A 55956B 55956B 56111 56116 56121K 9018304016 9046706011 9046708008 9354014012
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-30250

MS112,RS110..RHD

 1
55700-30250

MS11#,RS110..RHD..(BTP,DLX,SAL)

 1
55701A - PLUG, HOLE(FOR COWL PANEL)
90950-01058

LS110,MS11#,RS110

 2
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30060

LS110,MS11#,RS110

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30020

LS110,MS11#,RS110

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-30060

LS110,MS11#,RS110

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-30030

LS110,MS11#,RS110..RHD

 1
55956 - NOZZLE, SIDE DEFROSTER
55961-3001002

LS110,MS11#,RS110..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55961-3001004

LS110,MS11#,RS110..RHD

BLUE,BLUE,TRIM8#

 1
55961-3001005

LS110,MS11#,RS110..RHD

GREIGE,BEIGE,TRIM4#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

LS110,MS11#,RS110

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

LS110,MS11#,RS110

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55973-30010

LS110,MS11#,RS110..RHD

LH

 1
55972-30010

LS110,MS11#,RS110..RHD

RH

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55973-30010

LS110,MS11#,RS110..RHD

LH

 1
55972-30010

LS110,MS11#,RS110..RHD

RH

 1
56111 - GLASS, WINDSHIELD
56111-30420

RS110..BTP,DLX;LS110,MS11#..(BTP,DLX,SAL)..(EUR,GEN)

*TL,T=5.3

 1
56111-30400

LS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX

*TEM,T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-30030

LS110,MS11#,RS110

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-14010

LS110,MS11#,RS110

 1
Common parts
90183-04016
90467-06011
90467-08008
93540-14012
