RS110R-SEJBS (1979)
Toyota Crown
(7909- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55305-30100 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-30020 |
LS110,MS11#,RS110 |
1 | ||
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-30080 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55067 - DUCT SUB-ASSY, AIR OUTLET, CENTER NO.2 | ||||
| 55836-30040 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-3022004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-3022002 |
LS110,MS11#,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55301-3022005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-3005005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55601-3005004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55601-3005002 |
LS110,MS11#,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-30070 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55348 - GARNISH, INSTRUMENT PANEL SIDE, RH | ||||
| 55435-3009005 |
LS110,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55435-3009002 |
LS110,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55435-3009004 |
LS110,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55349 - GARNISH, INSTRUMENT PANEL SIDE, LH | ||||
| 55436-3004004 |
LS110,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55436-3004002 |
LS110,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55436-3004005 |
LS110,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-20011 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30370 |
LS110,RS110..RHD..BTP |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-30010 |
LS110,MS11#,RS110 |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55044-3009005 |
LS110,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3009004 |
LS110,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3009002 |
LS110,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55408-30020 |
MS112..ARL,GEN;MS112..LHD..EFI;LS110,MS111,RS110 |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55549-30040 |
LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 55449A - COVER, COOLER SENSOR HOLE | ||||
| 55548-3005004 |
LS110,MS11#,RS110..BTP,DLX,SAL BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3005002 |
LS110,MS11#,RS110..BTP,DLX,SAL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55548-3005005 |
LS110,MS11#,RS110..BTP,DLX,SAL GREIGE,BEIGE,TRIM4# |
1 | ||
| 55477 - COVER, OVERDRIVE KNOB HOLE | ||||
| 55537-1601001 |
LS110,MS11#,RS110..MTM BLACK |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-30080 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-3007002 |
LS110,MS11#,RS110..RHD..(ARL,GEN) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55432-3007004 |
LS110,MS11#,RS110..RHD..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007005 |
LS110,MS11#,RS110..RHD..(ARL,GEN) GREIGE,BEIGE,TRIM4# |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-3007002 |
LS110,MS11#,RS110..RHD..(ARL,GEN) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55432-3007004 |
LS110,MS11#,RS110..RHD..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007005 |
LS110,MS11#,RS110..RHD..(ARL,GEN) GREIGE,BEIGE,TRIM4# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30010 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55556-30040 |
LS110,MS11#,RS110 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3017004 |
LS110,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3017002 |
LS110,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55550-3017005 |
LS110,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
LS110,MS11#,RS110 |
2 | ||
| 55512 - PLATE, RADIO TUNER FINISH | ||||
| 55522-30030 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
LS110,MS11#,RS110 |
1 | ||
| 55523 - COVER, HEATER CONTROL OPENING | ||||
| 55523-30030 |
LS110,RS110..RHD..BTP |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-30080 |
LS110,MS11#,RS110..BTP |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-3005005 |
LS110,RS110..RHD..BTP GREIGE,BEIGE,TRIM4# |
1 | ||
| 55534-3005004 |
LS110,RS110..RHD..BTP BLUE,BLUE,TRIM8# |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-30050 |
RS110..(BTP,DLX)..GEN;LS110,MS11#..GEN..(CBR,DSL) |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-3004002 |
LS110,MS11#,RS110..ARL,GEN DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55540-3004004 |
LS110,MS11#,RS110..ARL,GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55540-3004005 |
LS110,MS11#,RS110..ARL,GEN GREIGE,BEIGE,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-30070 |
LS110,MS11#,RS110..ARL,GEN |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-12010 |
LS110,MS11#,RS110 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-3004005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55606-3004004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55606-3004002 |
LS110,MS11#,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3001002 |
LS110,MS11#,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001102 |
LS110,MS112,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001105 |
LS110,MS112,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001104 |
LS110,MS112,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55608-3001002 |
LS110,MS11#,RS110..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55608-3001004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55608-3001005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55632 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55632-30020 |
LS110,MS11#,RS110 |
2 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-30010 |
LS110,MS11#,RS110 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30040 |
LS110,MS11#,RS110..BTP |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30020 |
LS110,RS110..RHD..BTP |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30010 |
LS110,MS11#,RS110..RHD |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-30020 |
LS110,MS11#,RS110 |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS110,MS11#,RS110 |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS110,MS11#,RS110 |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
LS110,MS11#,RS110 |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
LS110,MS11#,RS110 |
2 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90159-40205 | ||||
| 90159-50134 | ||||
| 90160-40008 | ||||
| 90164-50051 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90183-05005 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90269-03010 | ||||
| 90463-08583 | ||||
| 90468-09016 | ||||
| 91665-40618 | ||||
| 93540-55016 | ||||
| 93540-55025 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||

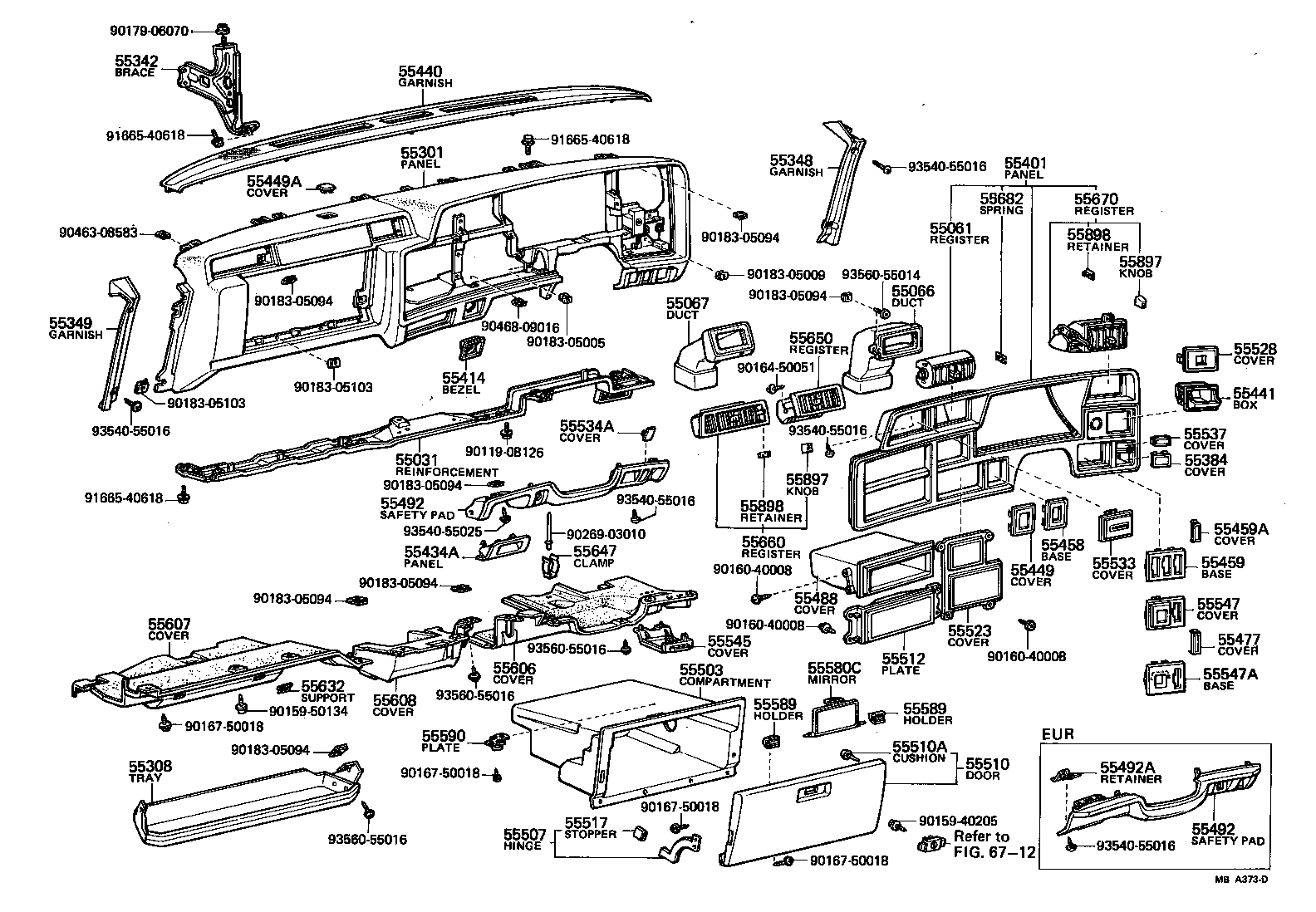

| Linked diagrams | ||||
| 6712 | ||||
