RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

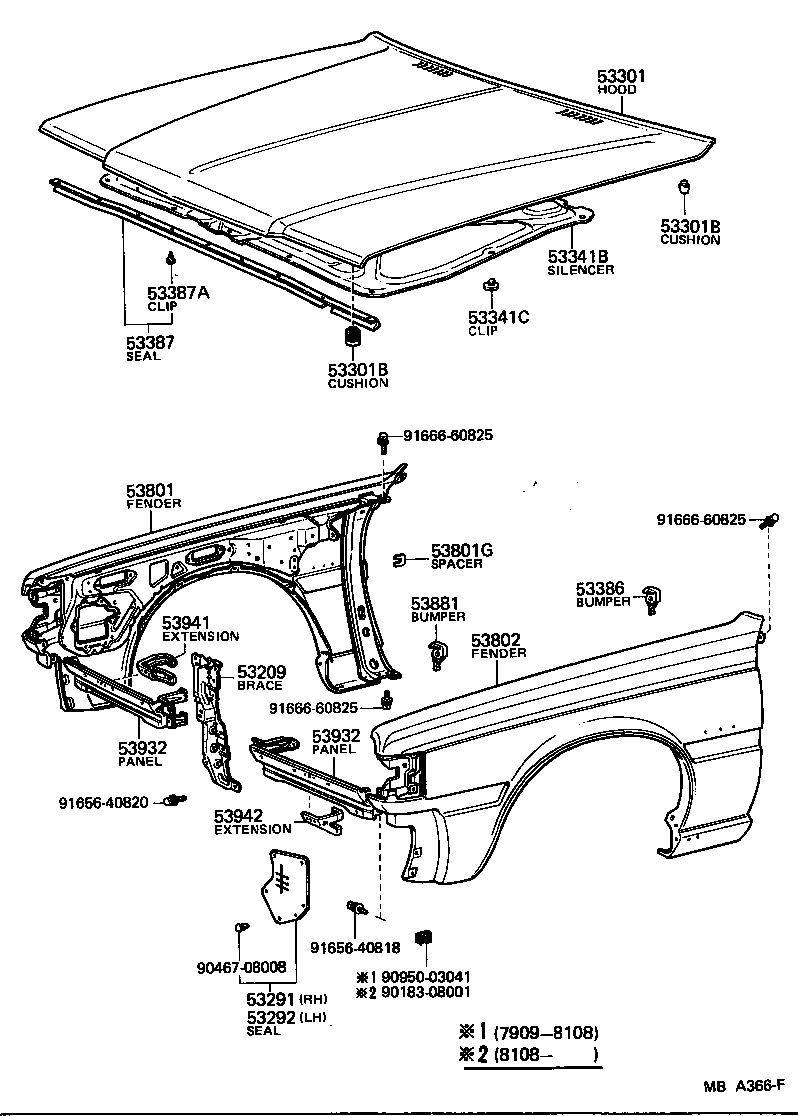

Click highlighted areas on diagram

diagram 53209 53291 53292 53301 53301B 53301B 53341B 53341C 53386 53387 53387A 53801 53801G 53802 53881 53932 53932 53941 53942 9018308001 9046708008 9095003041 9165640818 9165640820 9166660825 9166660825 9166660825
Part # Description Qty Price
53209 - BRACE SUB-ASSY, HOOD LOCK
53209-30040

LS110,MS11#,RS110

 1
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-30020

LS110,MS11#,RS110

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-30020

LS110,MS11#,RS110

 1
53301 - HOOD SUB-ASSY
53301-30050

LS110,MS11#,RS110

 1
53301B - CUSHION, HOOD BUMPER
90541-10007

LS110,MS11#,RS110

RR

 2
90541-15002

LS110,MS11#,RS110

FR

 2
53301B - CUSHION, HOOD BUMPER
90541-10007

LS110,MS11#,RS110

RR

 2
90541-15002

LS110,MS11#,RS110

FR

 2
53341B - INSULATOR, HOOD
53341-30060

MS111..SED..BTP;LS110,MS112,RS110;MS111..DLX,ROY,SAL

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09008

MS111..SED..BTP;LS110,MS112,RS110;MS111..DLX,ROY,SAL

 16
53386 - BUMPER, HOOD, REAR
53382-30060

LS110,MS11#,RS110

 2
53387 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30040

LS110,MS11#,RS110

 1
53387A - CLIP(FOR HOOD TO RADIATOR SUPPORT SET)
90467-08011

LS110,MS11#,RS110

 9
53801 - FENDER SUB-ASSY, FRONT RH
53801-30690

LS110,MS11#,RS110

W/O MIRROR HOLE

 1
53801G - SPACER, FRONT FENDER TO COWL PANEL
53878-30010

LS110,MS11#,RS110

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-30510

LS110,MS11#,RS110

W/O MIRROR HOLE

 1
53881 - BUMPER, FENDER TO HOOD
53382-30060

LS110,MS11#,RS110

 2
53932 - PANEL SUB-ASSY, FRONT END
53904-30030

LS110,MS11#,RS110

LH

 1
53903-30030

LS110,MS11#,RS110

RH

 1
53932 - PANEL SUB-ASSY, FRONT END
53904-30030

LS110,MS11#,RS110

LH

 1
53903-30030

LS110,MS11#,RS110

RH

 1
Common parts
90183-08001
90467-08008
90950-03041
91656-40818
91656-40820
91666-60825
