RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

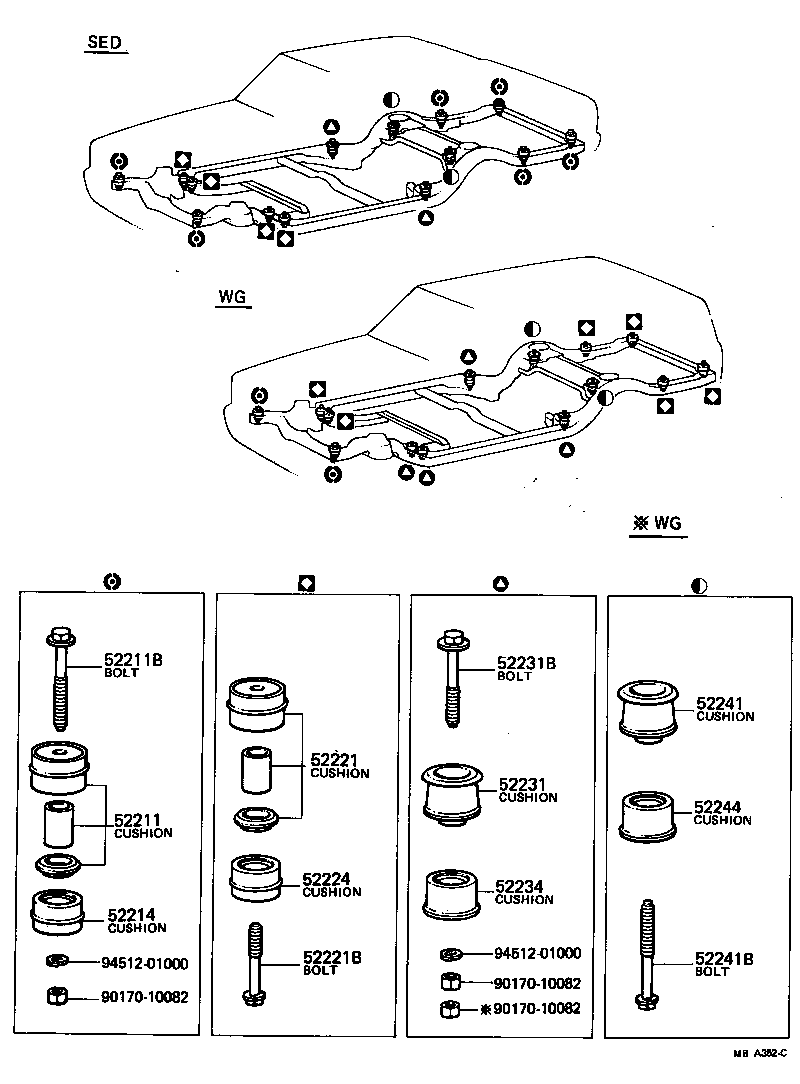

Click highlighted areas on diagram

diagram 52211 52211B 52214 52221 52221B 52224 52231 52231B 52234 52241 52241B 52244 9017010082 9017010082 9017010082 9451201000 9451201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-30905

LS110,MS11#,RS110..SED

 6
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-10018

LS110,MS11#,RS110..SED

 6
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52023-30030

LS110,MS11#,RS110..SED

 6
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52201-30905

LS110,MS11#,RS110..SED

 4
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10001

LS110,MS11#,RS110..SED

 4
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52023-30030

LS110,MS11#,RS110..SED

 4
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-30040

LS110,MS11#,RS110

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90119-10147

LS110,MS11#,RS110..SED

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-30020

LS110,MS11#,RS110

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52203-30040

LS110,MS11#,RS110

 2
52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION)
90119-10146

LS110,MS11#,RS110

 2
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52204-30020

LS110,MS11#,RS110

 2
Common parts
90170-10082
94512-01000
