RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

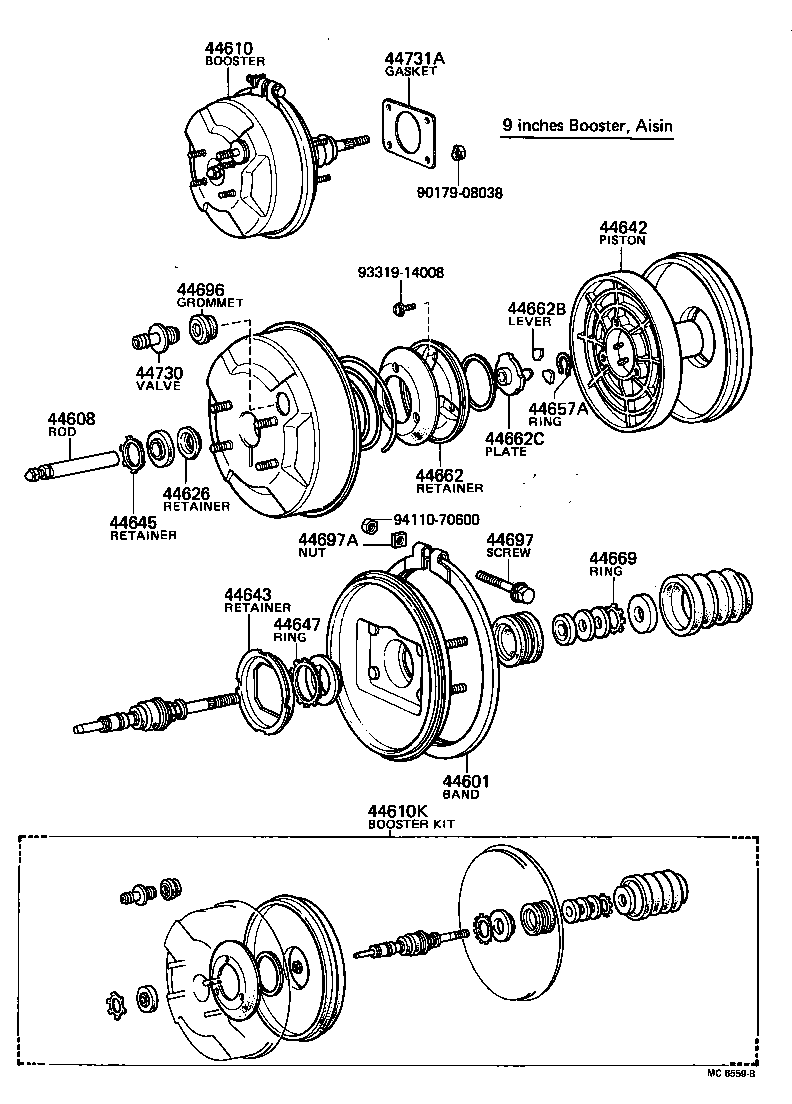

(7909-8108)MS111..ARL ; (7909-8108)MS112..WG..DLX ; (7909-8108)LS110,MS111..WG ; (7

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44642 44643 44645 44647 44657A 44662 44662B 44662C 44669 44696 44697 44697A 44730 44731A 9017908038 9331914008 9411070600
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-22090

RS110

JKC,9INCHES

 1
44608-14040

RS110..BTP..GEN

JKC,7.5INCHES

 1
44610 - BOOSTER ASSY, BRAKE
44610-30360

RS110..BTP..GEN

JKC,7.5INCHES

 1
44610-30310

RS110

JKC,9INCHES

 1
44610K - BOOSTER KIT, BRAKE
04443-30250

RS110

JKC,9INCHES

 1
04443-30300

RS110..BTP..GEN

JKC,7.5INCHES

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

RS110

JKC,9INCHES

 1
44642-30360

RS110..BTP..GEN

JKC,7.5INCHES

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

RS110..BTP..GEN

JKC,7.5INCHES

 1
44645-22020

RS110

JKC,9INCHES

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RS110

JKC,9INCHES

 1
90480-24517

RS110..BTP..GEN

JKC,7.5INCHES

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RS110

JKC,9INCHES

 1
44730-30010

RS110..BTP..GEN

JKC,7.5INCHES

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
44785-30020

LS110,MS11#,RS110

 1
Common parts
90179-08038
93319-14008
94110-70600

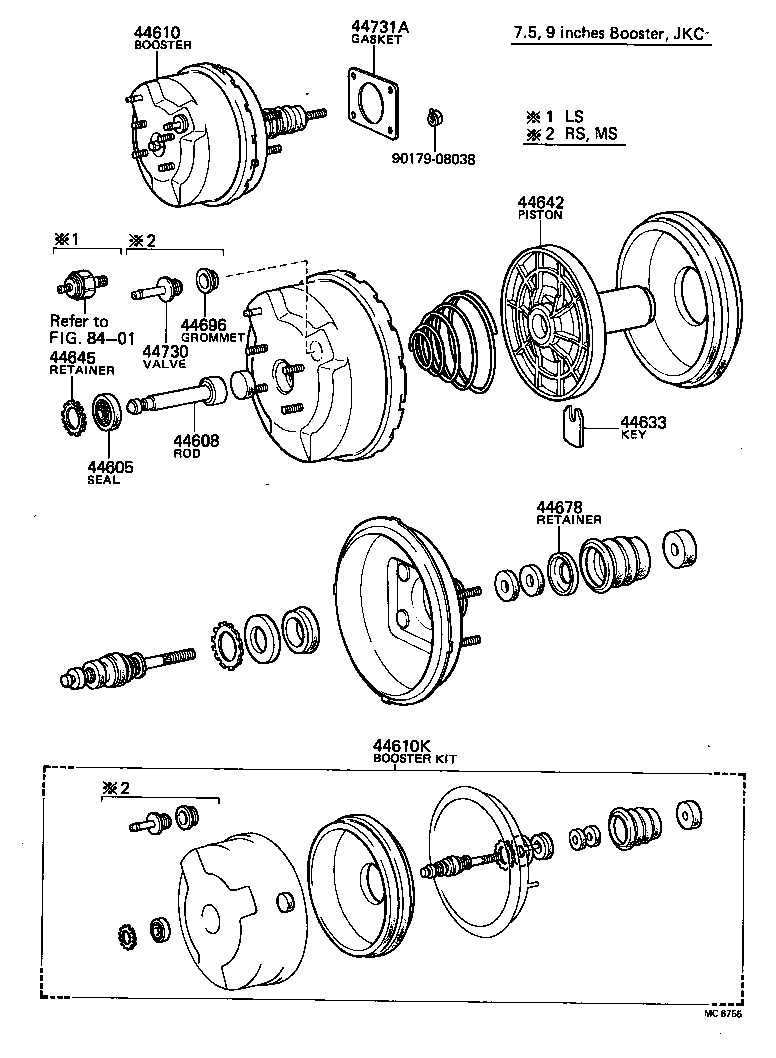

(7909-8108)LS110,MS111..SED ; (7909-8108)MS112,RS110..SED..ARL,GEN ; (8108- )

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 44696 44730 44731A 8401 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

RS110..BTP..GEN

JKC,7.5INCHES

 1
44605-22021

RS110

JKC,9INCHES

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-22090

RS110

JKC,9INCHES

 1
44608-14040

RS110..BTP..GEN

JKC,7.5INCHES

 1
44610 - BOOSTER ASSY, BRAKE
44610-30360

RS110..BTP..GEN

JKC,7.5INCHES

 1
44610-30310

RS110

JKC,9INCHES

 1
44610K - BOOSTER KIT, BRAKE
04443-30250

RS110

JKC,9INCHES

 1
04443-30300

RS110..BTP..GEN

JKC,7.5INCHES

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

RS110

JKC,9INCHES

 1
44633-22020

RS110..BTP..GEN

JKC,7.5INCHES

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

RS110

JKC,9INCHES

 1
44642-30360

RS110..BTP..GEN

JKC,7.5INCHES

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

RS110..BTP..GEN

JKC,7.5INCHES

 1
44645-22020

RS110

JKC,9INCHES

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

RS110

JKC,9INCHES

 1
44678-22020

RS110..BTP..GEN

JKC,7.5INCHES

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RS110

JKC,9INCHES

 1
90480-24517

RS110..BTP..GEN

JKC,7.5INCHES

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RS110

JKC,9INCHES

 1
44730-30010

RS110..BTP..GEN

JKC,7.5INCHES

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
44785-30020

LS110,MS11#,RS110

 1
Common parts
90179-08038
Linked diagrams
8401

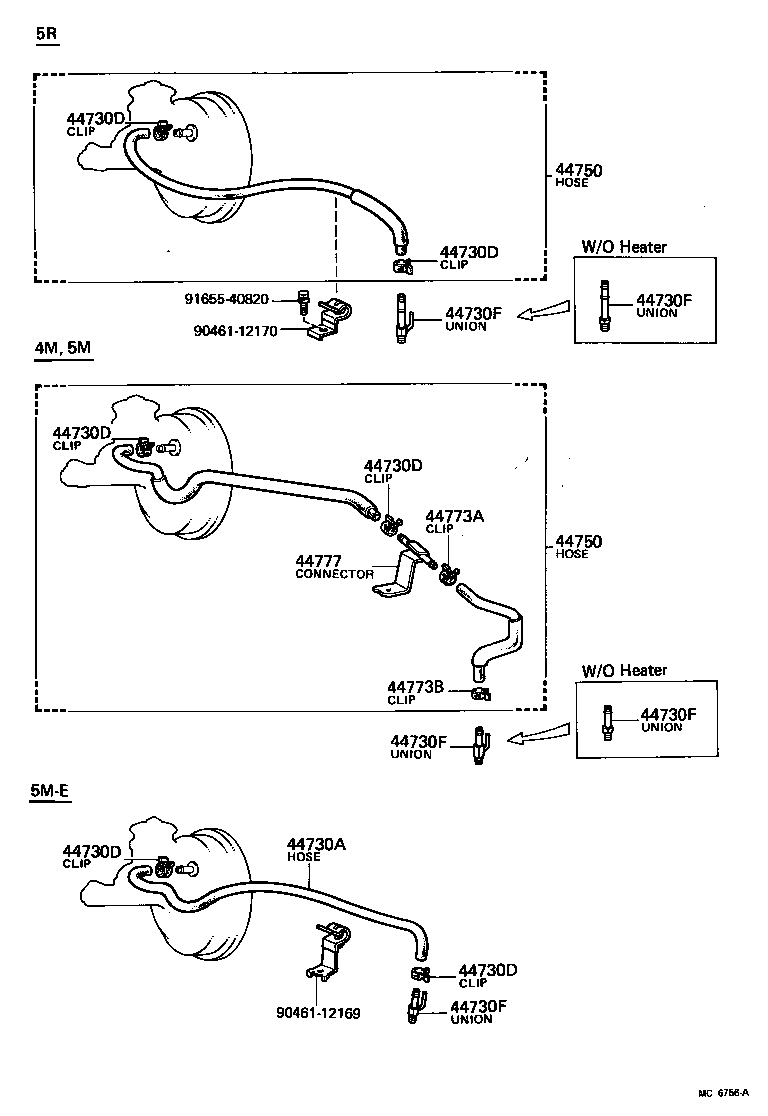

(7909- )MS11#,RS110..RHD

Click highlighted areas on diagram

diagram 44730A 44730D 44730D 44730D 44730D 44730D 44730D 44730F 44730F 44730F 44730F 44730F 44750 44750 44773A 44773B 44777 9046112169 9046112170 9165540820
Part # Description Qty Price
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

LS110,MS11#,RS110

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

RS110..BTP..GEN

W/O HEATER

 1
90404-51007

RS110..RHD

W/O HEATER

 1
90404-51015

RS110

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

RS110..BTP..GEN

W/O HEATER

 1
90404-51007

RS110..RHD

W/O HEATER

 1
90404-51015

RS110

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

RS110..BTP..GEN

W/O HEATER

 1
90404-51007

RS110..RHD

W/O HEATER

 1
90404-51015

RS110

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

RS110..BTP..GEN

W/O HEATER

 1
90404-51007

RS110..RHD

W/O HEATER

 1
90404-51015

RS110

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

RS110..BTP..GEN

W/O HEATER

 1
90404-51007

RS110..RHD

W/O HEATER

 1
90404-51015

RS110

 1
44750 - HOSE ASSY, VACUUM
44750-30120

RS110..RHD

 1
44750 - HOSE ASSY, VACUUM
44750-30120

RS110..RHD

 1
Common parts
90461-12169
90461-12170
91655-40820
