RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )RHD

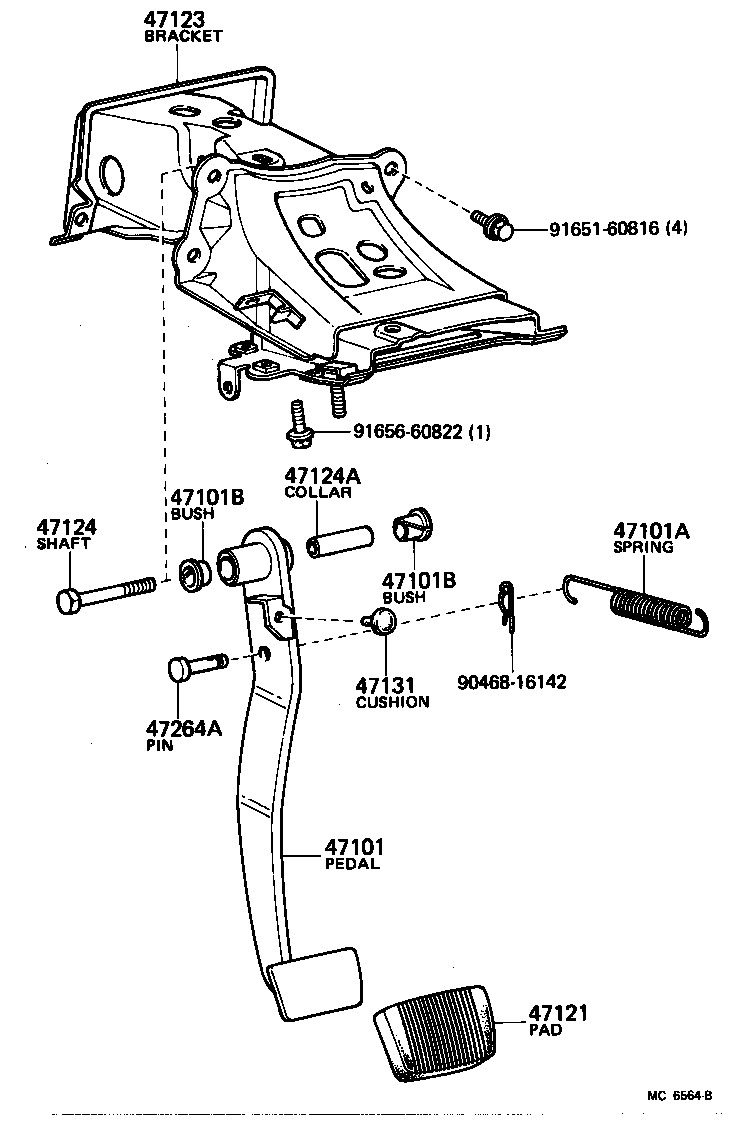

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816142 9165160816 9165660822
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-30190

LS110,MS11#,RS110..RHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-12484

LS110,MS11#,RS110

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

LS110,MS11#,RS110

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

LS110,MS11#,RS110

 2
47121 - PAD, BRAKE PEDAL
31321-30040

LS110,MS11#,RS110..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-30141

LS110,MS11#,RS110..RHD

 1
55106-30140

LS110,MS11#,RS110..RHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

LS110,MS11#,RS110..RHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

LS110,MS11#,RS110..RHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

LS110,MS11#,RS110

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

LS110,MS11#,RS110

 1
Common parts
90468-16142
91651-60816
91656-60822
