RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )3HC,4H,4HC

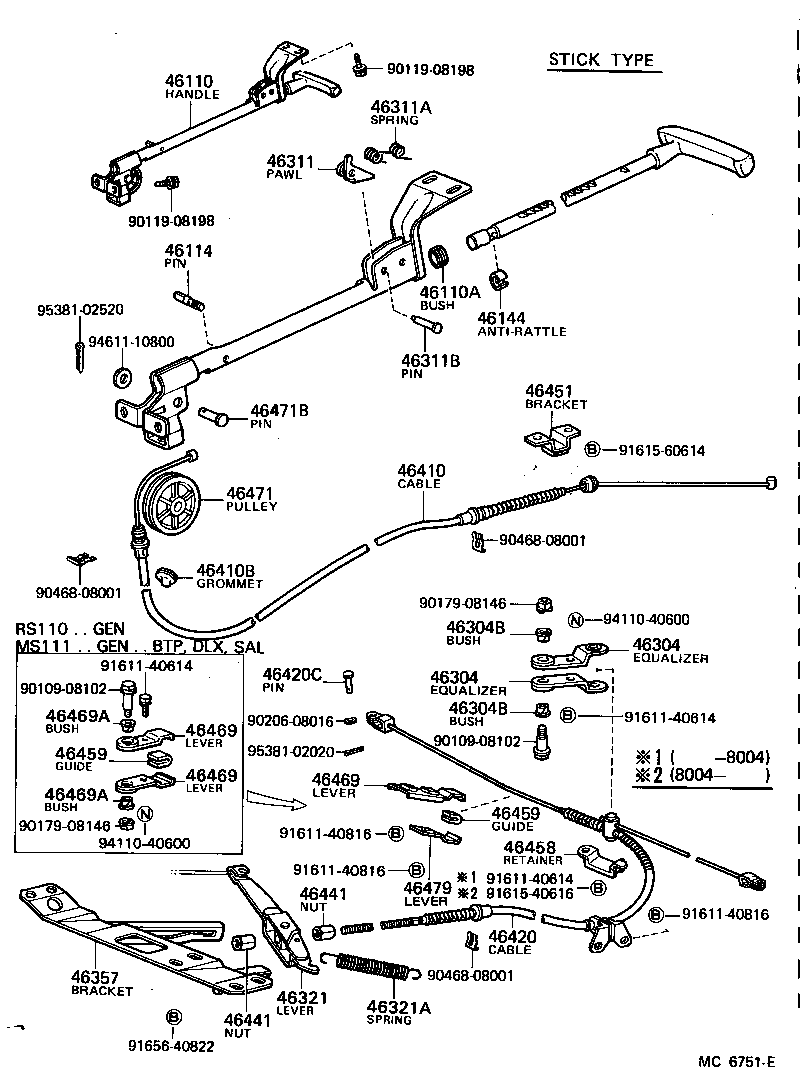

Click highlighted areas on diagram

diagram 46110 46110A 46114 46144 46304 46304 46304B 46304B 46311 46311A 46311B 46321 46321A 46357 46410 46410B 46420 46420C 46441 46441 46451 46458 46459 46459 46469 46469 46469 46469A 46469A 46471 46471B 46479 9010908102 9010908102 9011908198 9011908198 9017908146 9017908146 9020608016 9046808001 9046808001 9046808001 9161140614 9161140614 9161140614 9161140816 9161140816 9161140816 9161540616 9161560614 9165640822 9411040600 9411040600 9461110800 9538102020 9538102520
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46104-30070

LS110,MS11#,RS110..RHD..(3HC,4H,4HC)

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

LS110,MS11#,RS110..3HC,4H,4HC

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LS110,MS11#,RS110..3HC,4H,4HC

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

LS110,MS11#,RS110..3HC,4H,4HC

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010

LS110,MS11#,RS110

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010

LS110,MS11#,RS110

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LS110,MS11#,RS110

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LS110,MS11#,RS110

 2
46311 - PAWL, PARKING BRAKE
46311-30041

LS110,MS11#,RS110..3HC,4H,4HC

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LS110,MS11#,RS110..3HC,4H,4HC

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

LS110,MS11#,RS110..3HC,4H,4HC

 2
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46301-30110

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

 1
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90506-20024

LS110,MS11#,RS110..3HC,4H,4HC

 1
46357 - BRACKET, LEVER SUPPORT
46359-30060

LS110,MS11#,RS110..3HC,4H,4HC

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30240

LS110,MS11#,RS110..RHD..(3HC,4H,4HC)

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-33002

LS110,MS11#,RS110..RHD..(3HC,4H,4HC)

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30090

LS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028

LS110,MS11#,RS110

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LS110,MS11#,RS110

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LS110,MS11#,RS110

 2
46458 - RETAINER, CABLE
46458-30040

LS110,MS11#,RS110

 1
46459 - GUIDE, CABLE
46459-30010

LS110,MS11#,RS110

 1
46459 - GUIDE, CABLE
46459-30010

LS110,MS11#,RS110

 1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-30020

MS111,RS110..(BTP,DLX,SAL)..GEN

 2
46469 - LEVER, CABLE GUIDE SUPPORT
46469-30020

MS111,RS110..(BTP,DLX,SAL)..GEN

 2
46469 - LEVER, CABLE GUIDE SUPPORT
46469-30020

MS111,RS110..(BTP,DLX,SAL)..GEN

 2
46469A - BUSH, CABLE GUIDE SUPPORT LEVER
90385-12029

MS111,RS110..(BTP,DLX,SAL)..GEN

 2
46469A - BUSH, CABLE GUIDE SUPPORT LEVER
90385-12029

MS111,RS110..(BTP,DLX,SAL)..GEN

 2
46471 - PULLEY, WIRE
46471-30010

LS110,MS11#,RS110..3HC,4H,4HC

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08062

LS110,MS11#,RS110..3HC,4H,4HC

 1
Common parts
90109-08102
90119-08198
90179-08146
90206-08016
90468-08001
91611-40614
91611-40816
91615-40616
91615-60614
91656-40822
94110-40600
94611-10800
95381-02020
95381-02520
