RS110R-SEJBS (1979)
Toyota Crown
(7909- )

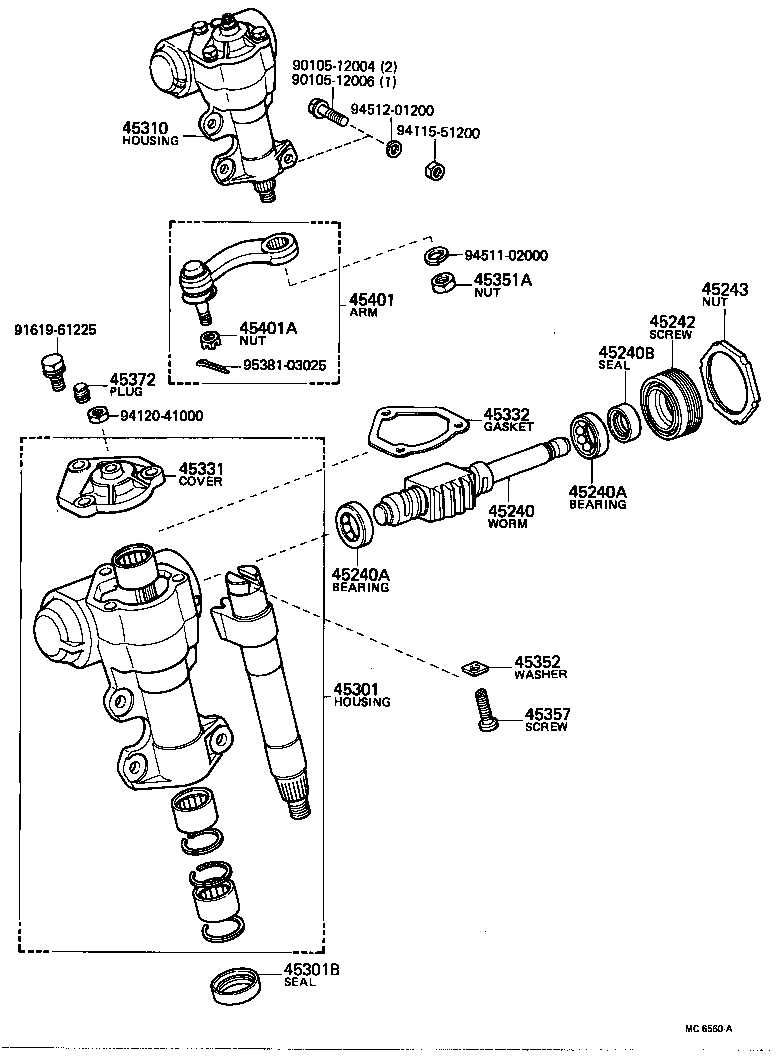

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-30060 |
LS110,MS11#,RS110..RHD..(BTP,DLX) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
RS110;LS110,MS112..BTP,DLX |
2 | ||
| 90369-44001 |
LS110,MS11#,RS110..BTP,DLX |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
RS110;LS110,MS112..BTP,DLX |
2 | ||
| 90369-44001 |
LS110,MS11#,RS110..BTP,DLX |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 90311-19001 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30060 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 45242-30060 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 45243-30060 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-30090 |
LS110,MS11#,RS110..RHD..(BTP,DLX) |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-34001 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 90310-34001 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-30110 |
LS110,MS11#,RS110..RHD..(BTP,DLX) |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-30100 |
LS110,MS11#,RS110..RHD..(BTP,DLX) MARK 3 |
1 | ||
| 45304-30090 |
LS110,MS11#,RS110..RHD..(BTP,DLX) MARK 2 |
1 | ||
| 45304-30080 |
LS110,MS11#,RS110..RHD..(BTP,DLX) MARK 1 |
1 | ||
| 45304-30110 |
LS110,MS11#,RS110..RHD..(BTP,DLX) MARK 4 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-30080 |
LS110,MS111,RS110..RHD..(BTP,DLX) |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 90170-20147 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14020 |
LS110,MS11#,RS110..BTP,DLX T=2.04,T=2.01-2.04 |
1 | ||
| 45352-14040 |
LS110,MS11#,RS110..BTP,DLX T=2.12,T=2.09-2.12 |
1 | ||
| 45352-14030 |
LS110,MS11#,RS110..BTP,DLX T=2.08,T=2.05-2.08 |
1 | ||
| 45352-14040 |
RS110;LS110,MS112..BTP,DLX T=2.12,T=2.09-2.12 |
1 | ||
| 45352-14010 |
LS110,MS11#,RS110..BTP,DLX T=2.00,T=1.97-2.00 |
1 | ||
| 45352-14050 |
LS110,MS11#,RS110..BTP,DLX T=2.16,T=2.13-2.16 |
1 | ||
| 45352-14010 |
RS110;LS110,MS112..BTP,DLX T=2.00,T=1.97-2.00 |
1 | ||
| 45352-14060 |
LS110,MS11#,RS110..BTP,DLX T=2.20,T=2.17-2.20 |
1 | ||
| 45352-14020 |
RS110;LS110,MS112..BTP,DLX T=2.04,T=2.01-2.04 |
1 | ||
| 45352-14050 |
RS110;LS110,MS112..BTP,DLX T=2.16,T=2.13-2.16 |
1 | ||
| 45352-14060 |
RS110;LS110,MS112..BTP,DLX T=2.20,T=2.17-2.20 |
1 | ||
| 45352-14030 |
RS110;LS110,MS112..BTP,DLX T=2.08,T=2.05-2.08 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45357-30040 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 90930-03027 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39175 |
LS110,MS111,RS110..RHD..(BTP,DLX) |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
LS110,MS11#,RS110..BTP,DLX |
1 | ||
| 90171-14042 |
RS110;LS110,MS112..BTP,DLX |
1 | ||
| Common parts | ||||
| 90105-12004 | ||||
| 90105-12006 | ||||
| 91619-61225 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||

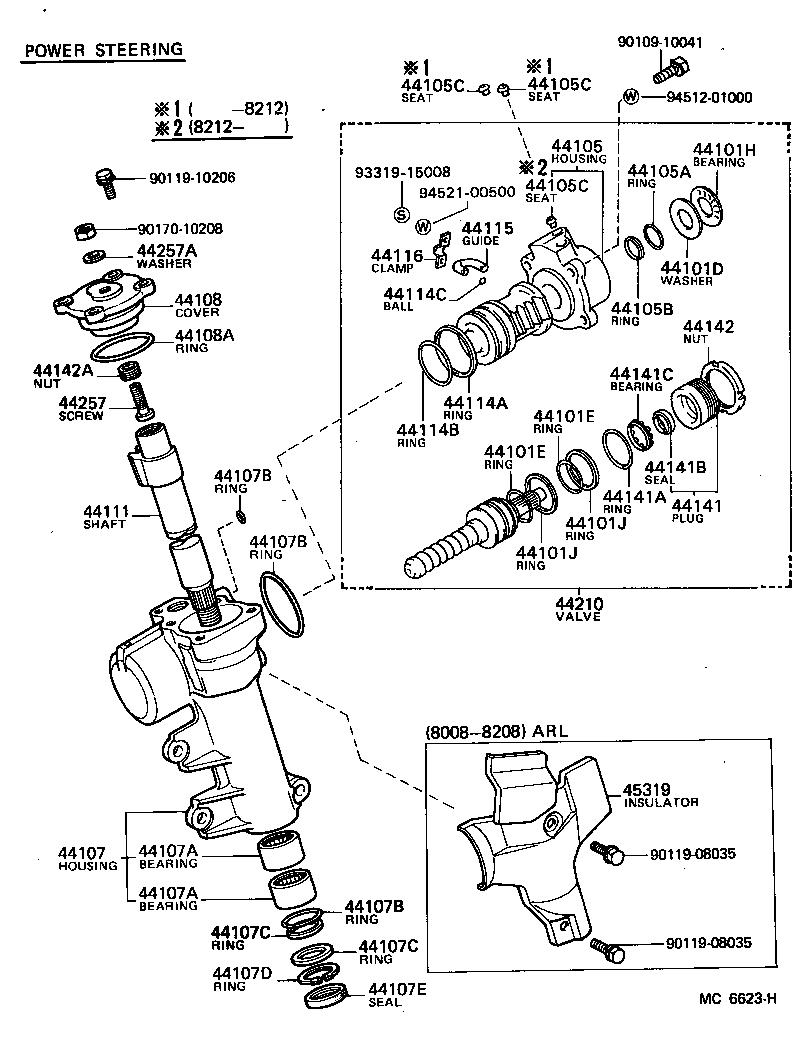

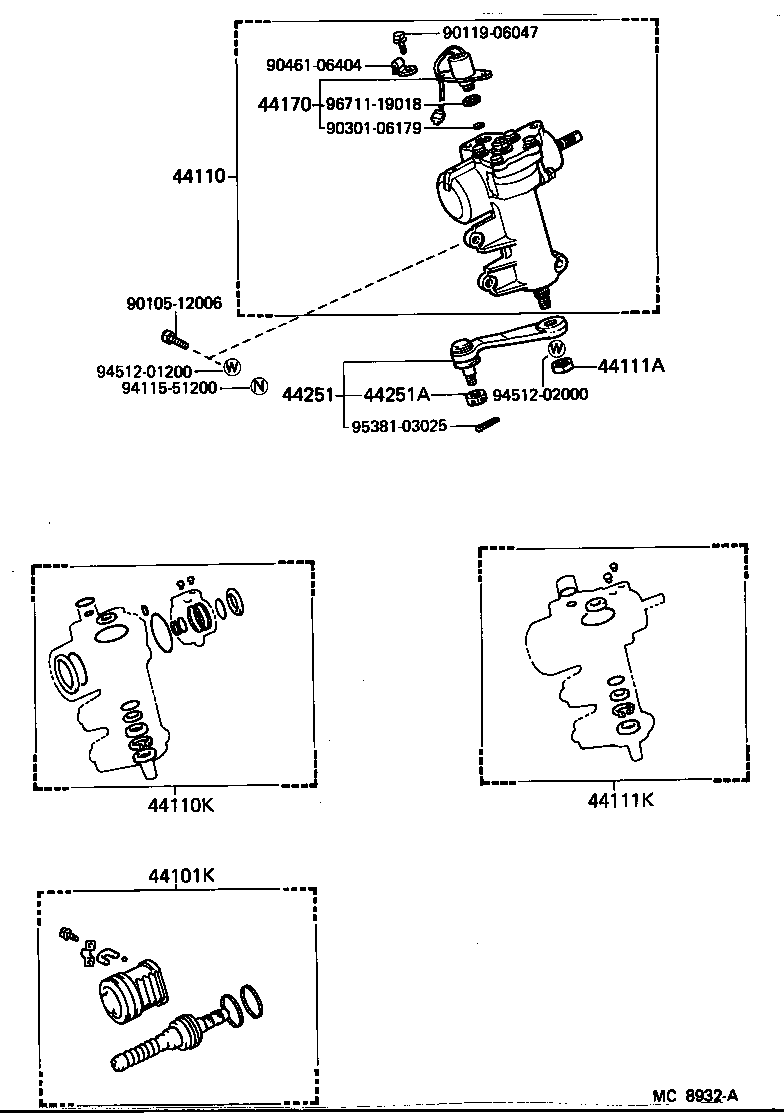

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-10041 | ||||
| 90119-08035 | ||||
| 90119-10206 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94512-01000 | ||||
| 94521-00500 | ||||

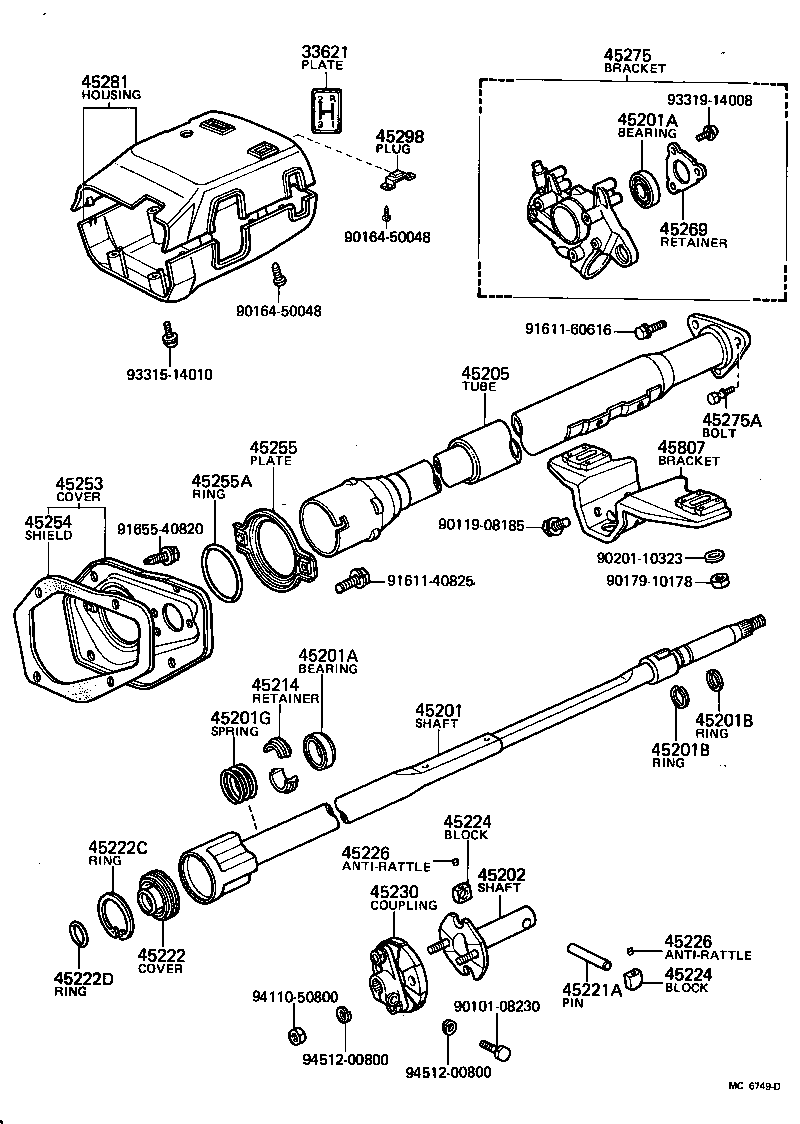

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-30040 |
LS110,MS11#,RS110..EUR,GEN |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LS110,MS11#,RS110..EUR,GEN UPR |
1 | ||
| 90369-43027 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LS110,MS11#,RS110..EUR,GEN UPR |
1 | ||
| 90369-43027 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LS110,MS11#,RS110..EUR,GEN UPR |
1 | ||
| 90369-43027 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS110,MS11#,RS110 T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
LS110,MS11#,RS110..EUR,GEN T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS110,MS11#,RS110 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30110 |
LS110,MS11#,RS110..EUR,GEN |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30030 |
LS110,MS11#,RS110 |
2 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
LS110,MS11#,RS110 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-30030 |
LS110,MS11#,RS110 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
LS110,MS11#,RS110 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
LS110,MS11#,RS110 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS110,MS11#,RS110 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS110,MS11#,RS110 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS110,MS11#,RS110 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS110,MS11#,RS110 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS110,MS11#,RS110 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS110,MS11#,RS110 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
LS110,MS11#,RS110 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30070 |
LS110,MS11#,RS110..RHD..(3HC,4H,4HC)..(CBR,DSL) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30070 |
LS110,MS11#,RS110..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
LS110,MS11#,RS110 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
LS110,MS11#,RS110 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30310 |
LS110,MS112,RS110..RHD..4H |
1 | ||
| 45280-30210 |
LS110,MS11#,RS110..RHD..4H |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3096005 |
LS110,MS11#,RS110..RHD..4H GREIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3096004 |
LS110,MS11#,RS110..RHD..4H BLUE,BLUE,TRIM8# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-30100 |
MS11#,RS110..RHD..GEN..CBR |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90160-00600 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06155 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10092 | ||||
| 90201-10323 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 93315-14010 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 95381-02020 | ||||

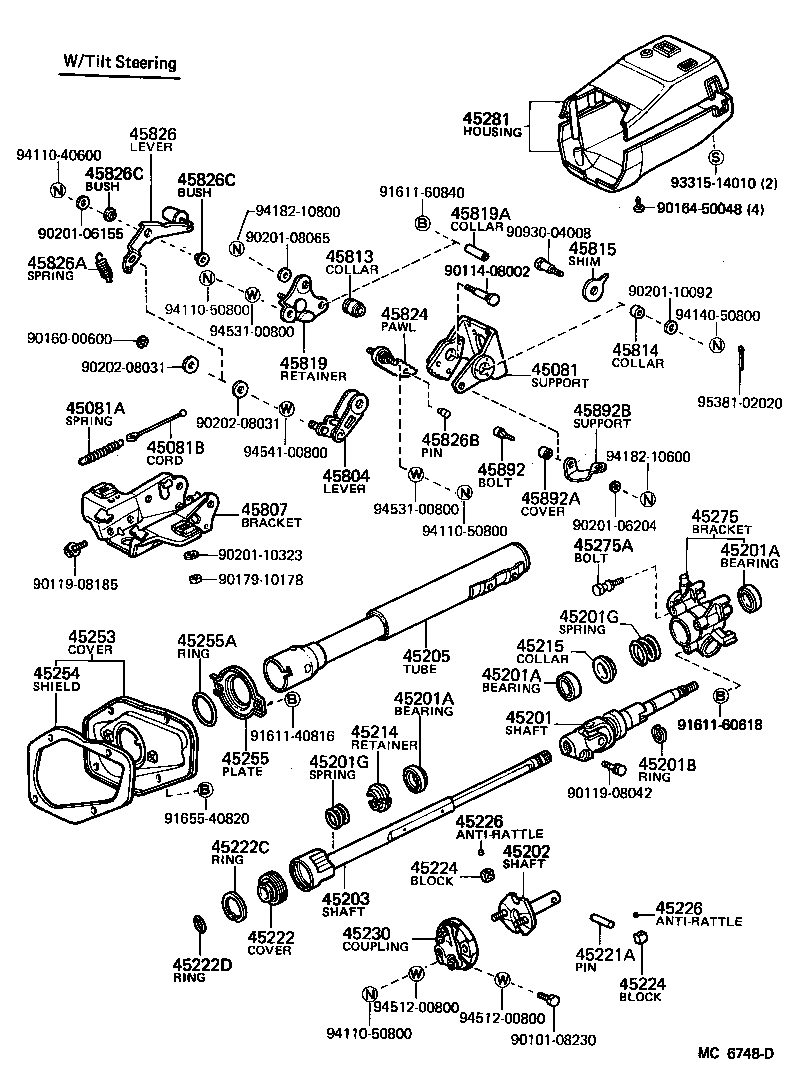

(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-20010 |
LS110,MS11#,RS110..RHD..4H |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-30040 |
LS110,MS11#,RS110..EUR,GEN |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LS110,MS11#,RS110..EUR,GEN UPR |
1 | ||
| 90369-43027 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LS110,MS11#,RS110..EUR,GEN UPR |
1 | ||
| 90369-43027 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS110,MS11#,RS110 T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
LS110,MS11#,RS110..EUR,GEN T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS110,MS11#,RS110 T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
LS110,MS11#,RS110..EUR,GEN T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS110,MS11#,RS110 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS110,MS11#,RS110 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30110 |
LS110,MS11#,RS110..EUR,GEN |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30030 |
LS110,MS11#,RS110 |
2 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
LS110,MS11#,RS110 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-30030 |
LS110,MS11#,RS110 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
LS110,MS11#,RS110 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
LS110,MS11#,RS110 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS110,MS11#,RS110 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS110,MS11#,RS110 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS110,MS11#,RS110 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS110,MS11#,RS110 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS110,MS11#,RS110 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS110,MS11#,RS110 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
LS110,MS11#,RS110 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30070 |
LS110,MS11#,RS110..RHD..(3HC,4H,4HC)..(CBR,DSL) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30070 |
LS110,MS11#,RS110..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
LS110,MS11#,RS110 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
LS110,MS11#,RS110 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RS110..BTP,DLX |
1 | ||
| 45269-20010 |
LS110,MS11#,RS110..EUR,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30310 |
LS110,MS112,RS110..RHD..4H |
1 | ||
| 45280-30210 |
LS110,MS11#,RS110..RHD..4H |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3096005 |
LS110,MS11#,RS110..RHD..4H GREIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3096004 |
LS110,MS11#,RS110..RHD..4H BLUE,BLUE,TRIM8# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-3001004 |
LS110,MS11#,RS110..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 45298-3001005 |
LS110,MS11#,RS110..RHD GREIGE,BEIGE,TRIM4# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-30100 |
MS11#,RS110..RHD..GEN..CBR |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40825 | ||||
| 91611-60616 | ||||
| 91655-40820 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12006 | ||||
| 90119-06047 | ||||
| 90301-06179 | ||||
| 90461-06404 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
| 96711-19018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
