RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )RS110..GEN

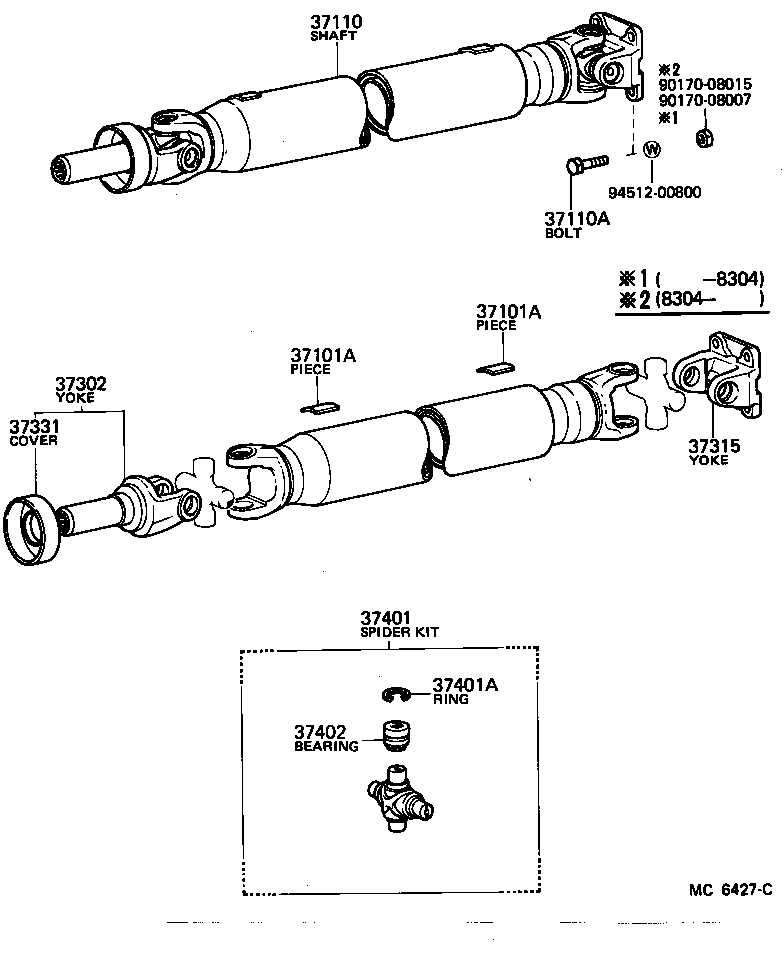

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37302 37315 37331 37401 37401A 37402 9017008007 9017008015 9451200800
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

LS110,MS11#,RS110

10G,L=20.7,10G

 2
90937-01152

LS110,MS11#,RS110

14G,L=29.0,14G

 2
90937-01149

LS110,MS11#,RS110

6G,L=12.4,6G

 2
90937-01151

LS110,MS11#,RS110

12G,L=24.9,12G

 2
90937-01153

LS110,MS11#,RS110

16G,L=33.2,16G

 2
90937-01154

LS110,MS11#,RS110

18G,L=37.3,18G

 2
90937-01140

LS110,MS11#,RS110

30G,L=62.2,30G

 2
90937-01148

LS110,MS11#,RS110

4G,T=2.0,4G

 2
90937-01156

LS110,MS11#,RS110

24G,L=49.7,24G

 2
90937-01136

LS110,MS11#,RS110

20G,L=41.4,20G

 2
90937-01147

LS110,MS11#,RS110

2G,T=2.0,2G

 2
90937-01158

LS110,MS11#,RS110

28G,L=58.1,28G

 2
90937-01155

LS110,MS11#,RS110

22G,L=45.6,22G

 2
90937-01157

LS110,MS11#,RS110

26G,L=53.9,26G

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

LS110,MS11#,RS110

10G,L=20.7,10G

 2
90937-01152

LS110,MS11#,RS110

14G,L=29.0,14G

 2
90937-01149

LS110,MS11#,RS110

6G,L=12.4,6G

 2
90937-01151

LS110,MS11#,RS110

12G,L=24.9,12G

 2
90937-01153

LS110,MS11#,RS110

16G,L=33.2,16G

 2
90937-01154

LS110,MS11#,RS110

18G,L=37.3,18G

 2
90937-01140

LS110,MS11#,RS110

30G,L=62.2,30G

 2
90937-01148

LS110,MS11#,RS110

4G,T=2.0,4G

 2
90937-01156

LS110,MS11#,RS110

24G,L=49.7,24G

 2
90937-01136

LS110,MS11#,RS110

20G,L=41.4,20G

 2
90937-01147

LS110,MS11#,RS110

2G,T=2.0,2G

 2
90937-01158

LS110,MS11#,RS110

28G,L=58.1,28G

 2
90937-01155

LS110,MS11#,RS110

22G,L=45.6,22G

 2
90937-01157

LS110,MS11#,RS110

26G,L=53.9,26G

 2
37110 - SHAFT ASSY, PROPELLER
37110-30051

RS110..GEN

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08039

LS110,MS11#,RS110

 8
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-30020

LS110,MS11#,RS110..MTM

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-30011

RS110..GEN

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LS110,MS11#,RS110

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-30020

RS110..GEN

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26233

RS110..GEN

T=1.50,OD=32.4,T=1.50

 8
90520-26234

RS110..GEN

T=1.55,T=1.55

 8
90520-26235

RS110..GEN

T=1.60,T=1.60

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

RS110..GEN

 8
Common parts
90170-08007
90170-08015
94512-00800
