RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

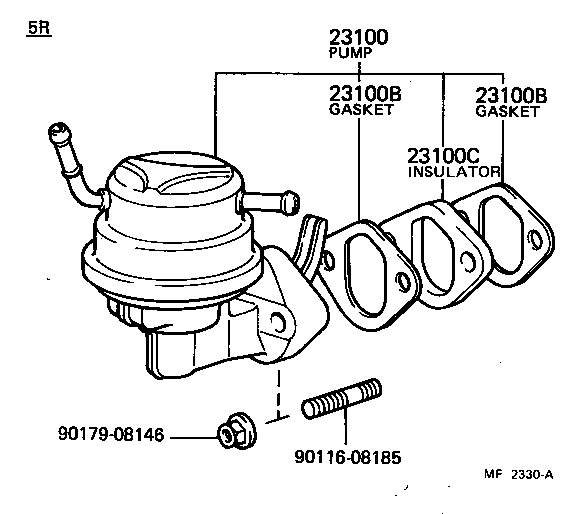

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 9011608185 9017908146
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-49235

5R..RS110

 1
23100B - GASKET, FUEL PUMP
90923-05005

5R..RS110

 2
23100B - GASKET, FUEL PUMP
90923-05005

5R..RS110

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

5R..RS110

 1
Common parts
90116-08185
90179-08146
