RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

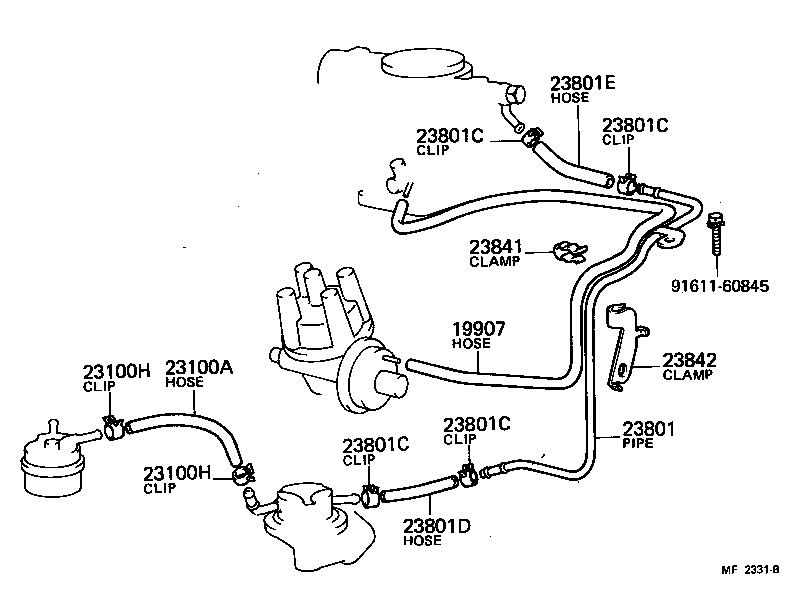

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23841 23842 9161160845
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-19995

5R..RS110

*H,L=750

 1
23100A - HOSE, FUEL
95332-08040

5R..RS110

*H,L=380

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RS110

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RS110

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-44070

5R..RS110

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

5R..RS110

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

5R..RS110

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

5R..RS110

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

5R..RS110

 4
23801D - HOSE, FUEL PIPE, NO.1
95332-08010

5R..RS110

*H,L=90,ID=7.6

 2
23801E - HOSE, FUEL PIPE, NO.2
95332-08010

5R..RS110

*H,L=90

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RS110

 4
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-44040

5R..RS110

 1
Common parts
91611-60845
