RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

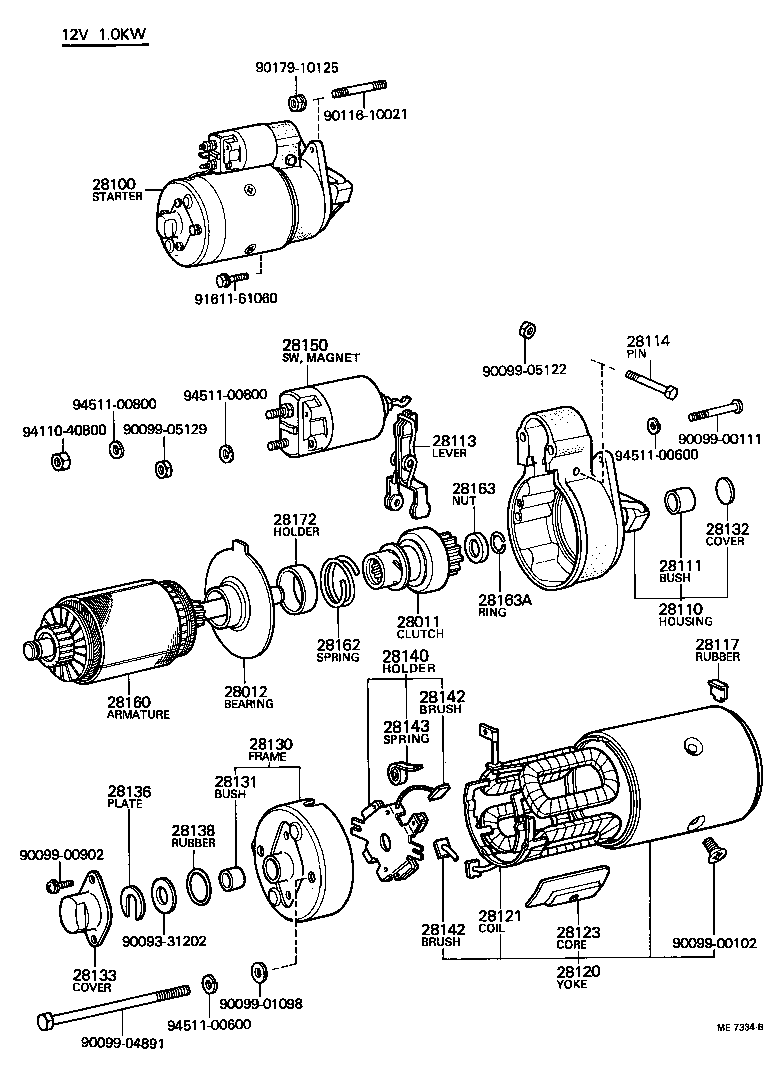

(7909-8108)5R

Click highlighted areas on diagram

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28172 9009331202 9009900102 9009900111 9009900902 9009901098 9009904891 9009905122 9009905129 9011610021 9017910125 9161161060 9411040800 9451100600 9451100600 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28012 - BEARING SUB-ASSY, CENTER
28126-40061

5R..RS110

12V 1.0KW

 1
28100 - STARTER ASSY
28100-44041

5R..RS110

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-44040

5R..RS110

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-44041

5R..RS110

12V 1.0KW

 1
28121 - COIL, STARTER FIELD
28121-34070

4M,5ME,5R..MS11#,RS110

12V 1.0KW

 1
28121-42020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28123 - CORE, STARTER POLE
28123-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-40060

5R..RS110

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

4M,5M#,5R..MS11#,RS110

12V 1.0KW,STD

 1
90099-10040

4M,5M#,5R..MS11#,RS110

12V 1.0KW,U/S 0.5

 1
90099-10039

4M,5M#,5R..MS11#,RS110

12V 1.0KW,U/S 0.3

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28136 - PLATE, STARTER LOCK
28136-40010

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

5R..RS110

12V 1.0KW

 1
28142 - BRUSH, STARTER
28142-25011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 4
28142 - BRUSH, STARTER
28142-25011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 4
28143 - SPRING, STARTER BRUSH
28143-40040

5R..RS110

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34070

5R..RS110

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28162 - SPRING, STARTER BRAKE
28162-41022

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28172 - HOLDER, STARTER SPRING
28172-41021

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
Common parts
90093-31202
90099-00102
90099-00111
90099-00902
90099-01098
90099-04891
90099-05122
90099-05129
90116-10021
90179-10125
91611-61060
94110-40800
94511-00600
94511-00800

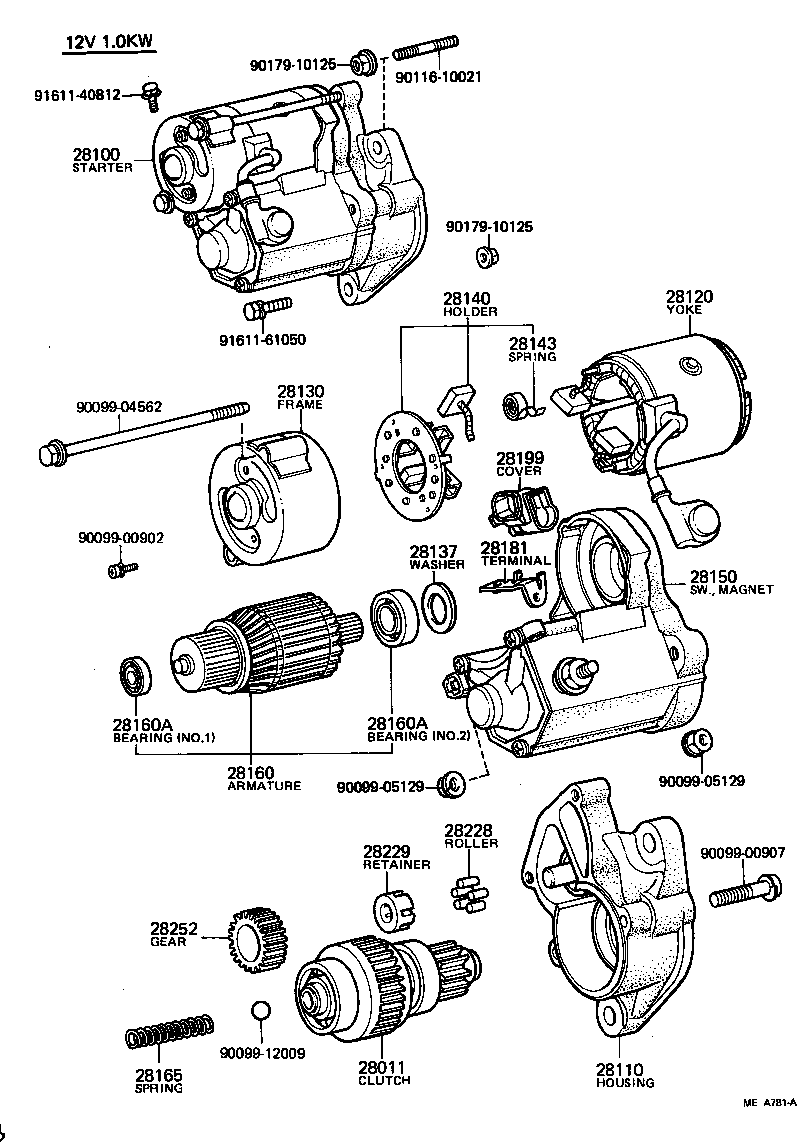

(8108- )5R

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28130 28137 28140 28143 28150 28160 28160A 28160A 28165 28181 28199 28228 28229 28252 9009900902 9009900907 9009904562 9009905129 9009905129 9009912009 9011610021 9017910125 9017910125 9161140812 9161161050
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
28100 - STARTER ASSY
28100-44041

5R..RS110

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-44040

5R..RS110

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-44041

5R..RS110

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-40060

5R..RS110

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

5R..RS110

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
28143-40040

5R..RS110

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34070

5R..RS110

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

4M,5M#,5R..MS11#,RS110

12V 1.0KW

 1
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90116-10021
90179-10125
91611-40812
91611-61050
