RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

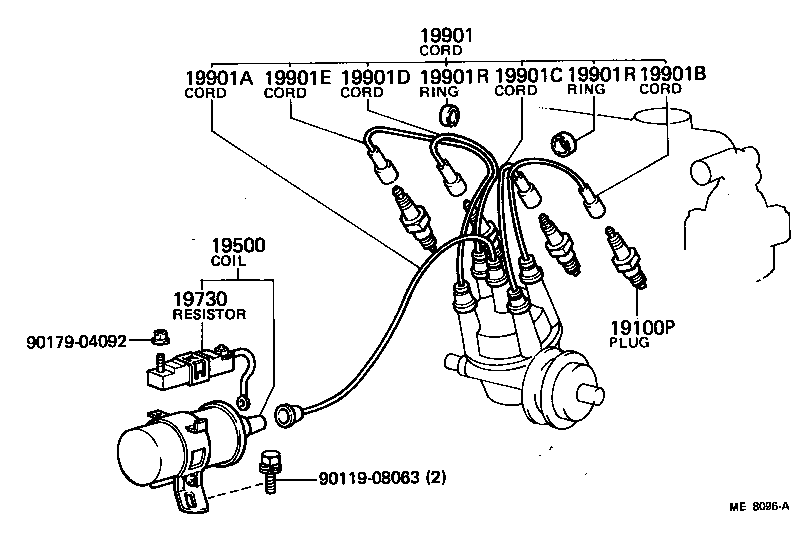

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9011908063 9017904092
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

5R..RS110

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02121

5R..RS110

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

5R..RS110

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21224

5R..RS110

 1
19901A - CORD, COIL RESISTIVE
90919-13129

5R..RS110

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12311

5R..RS110

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12310

5R..RS110

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12310

5R..RS110

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12311

5R..RS110

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

5R..RS110

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

5R..RS110

 2
Common parts
90119-08063
90179-04092
