RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

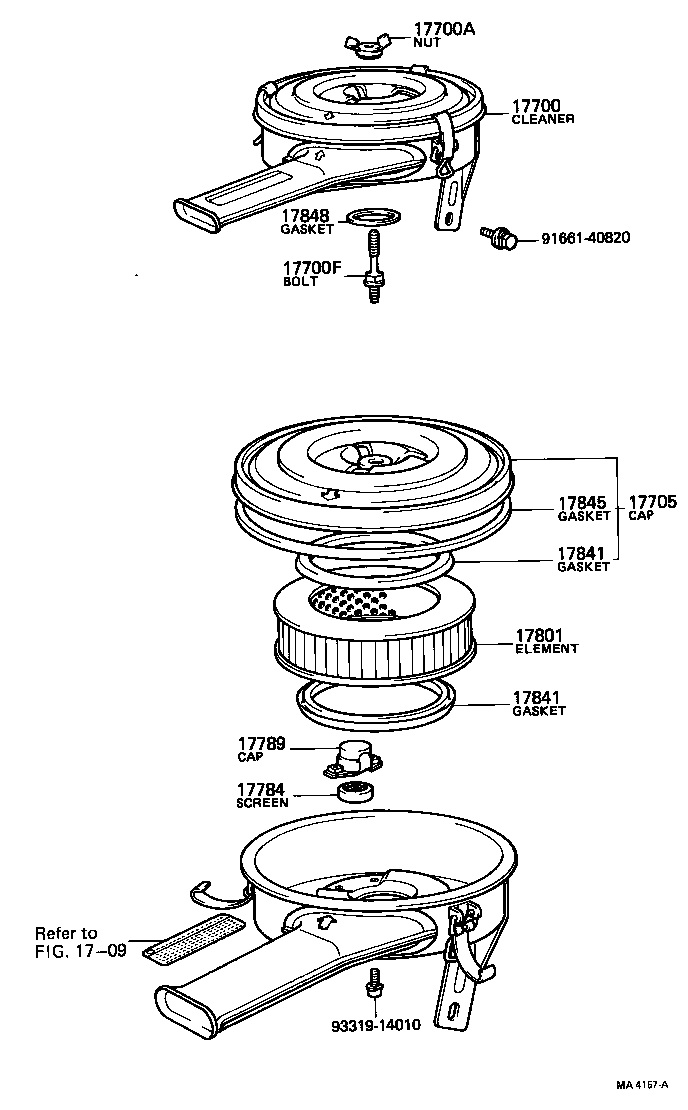

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700F 17705 17784 17789 17801 17841 17841 17845 17848 9166140820 9331914010
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-44450

5R..RS110

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

5R..RS110

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

5R..RS110

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-44020

5R..RS110

 1
17784 - SCREEN, AIR CLEANER
17784-31010

5R..RS110

 1
17789 - CAP, AIR CLEANER SCREEN
17789-31020

5R..RS110

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-34060

5R..RS110

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

5R..RS110

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

5R..RS110

 2
17845 - GASKET, AIR CLEANER CAP
17845-33011

5R..RS110

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

5R..RS110

 1
Common parts
91661-40820
93319-14010
Linked diagrams
1709
