RS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )5R

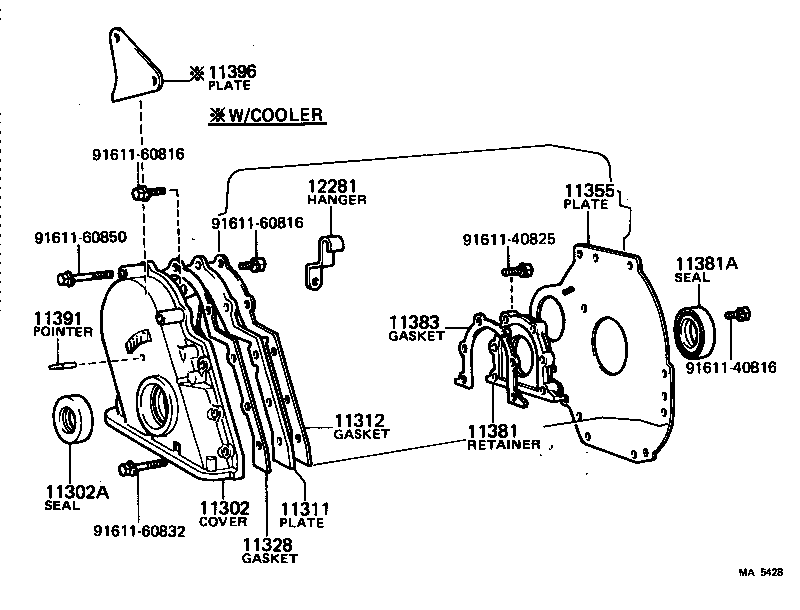

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11381 11381A 11383 11391 11396 12281 9161140816 9161140825 9161160816 9161160816 9161160832 9161160850
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-44030

5R..RS110

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

5R..RS110

TC 45 68 12

 1
11311 - PLATE, FRONT END
11311-44011

5R..RS110

 1
11312 - GASKET, FRONT END PLATE
11312-44011

5R..RS110

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-44010

5R..RS110

 1
11355 - PLATE, REAR END
11355-44011

5R..RS110

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-44011

5R..RS110

 1
11381A - SEAL, ENGINE REAR OIL
90311-80002

5R..RS110

HTCY 80 100 12 13.5

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-44010

5R..RS110

 1
11391 - POINTER, TIMING
11391-44020

5R..RS110

 1
11396 - PLATE, TIMING MARK
88596-30111

5R..RS110

 1
12281 - HANGER, ENGINE, NO.1
12281-44011

5R..RS110

 1
Common parts
91611-40816
91611-40825
91611-60816
91611-60832
91611-60850
