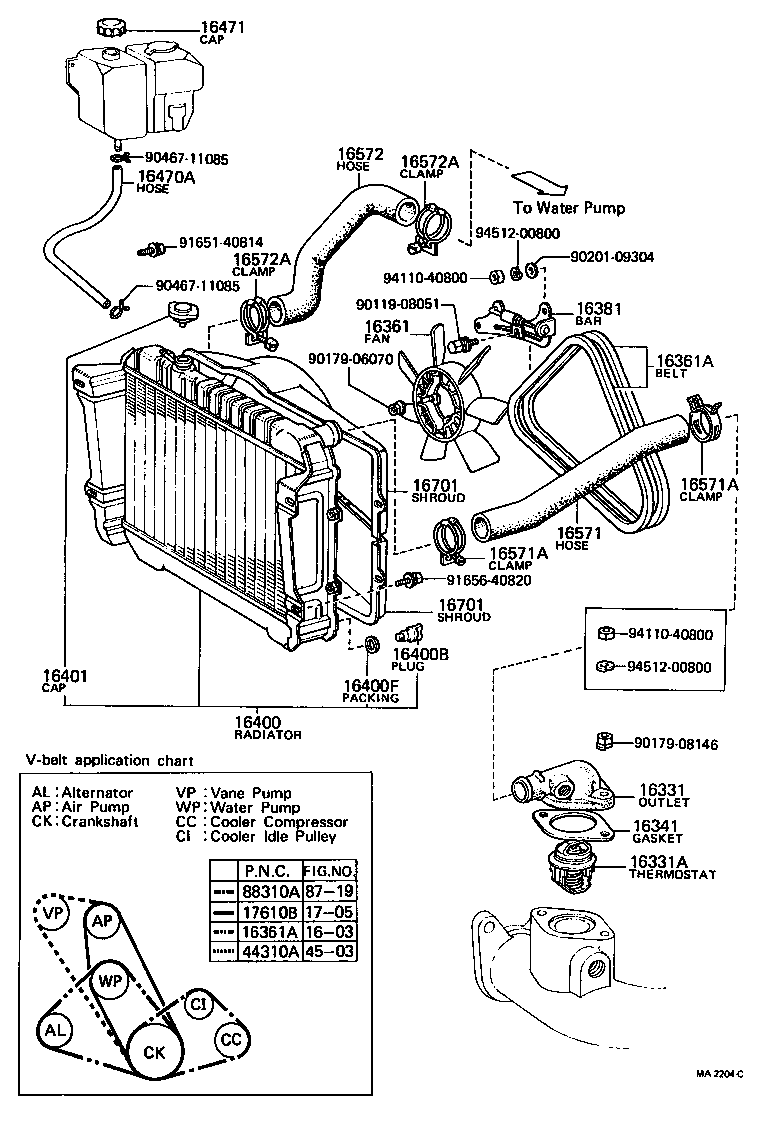

MS85R-KBQ (1976)
Toyota Crown
(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-41041 |
4M..MS8#,95 |
1 | ||
| 16331-45020 |
4M..MS83,85..ARL |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03033 |
4M..MS8#,95 WAX 82-95 FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
4M..MS8#,95 |
1 | ||
| 16361 - FAN | ||||
| 16361-41060 |
4M..MS8#,95 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10904 |
4M..MS8#,95 L=904,50A ALTERNATOR |
1 | ||
| 99522-10904 |
4M..MS8#,95..BTP,DLX,SAL,STD L=904 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10904 |
4M..MS8#,95 L=904,50A ALTERNATOR |
1 | ||
| 99522-10904 |
4M..MS8#,95..BTP,DLX,SAL,STD L=904 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-41030 |
4M..MS8#,95 |
1 | ||
| 16381-45011 |
4M..MS83,85..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-45050 |
4M..MS8#,95..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4M..MS8#,95 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
4M..MS8#,95 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
4M..MS83,85,95 MAKER "NIPPON DENSO" |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12521 |
4M..MS8#,95 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85332-20030 |
4M..MS8#,95 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41050 |
4M..MS8#,95 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
4M..MS8#,95 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
4M..MS8#,95 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41030 |
4M..MS8#,95 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41030 |
4M..MS8#,95 UPPER |
1 | ||
| 16712-41030 |
4M..MS8#,95 LOWER |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41030 |
4M..MS8#,95 UPPER |
1 | ||
| 16712-41030 |
4M..MS8#,95 LOWER |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99522-11159 |
4M..MS83,85..(BTP,DLX)..ARL L=1159,L/POWER STEERING |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99522-11275 |
MS8#,95 |
1 | ||
| 99522-11390 |
MS83,85..ARL |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-11002 |
MS8#,95 W/BOOST VENTILATOR |
1 | ||
| 99522-10976 |
MS8#,95..BTP,DLX,SAL,STD |
1 | ||
| 99522-10976 |
MS8#,95 |
1 | ||
| 99522-10964 |
MS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD W/HEATER |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90201-09304 | ||||
| 90467-11085 | ||||
| 91651-40814 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
(7410-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41040 |
4M..MS8#,95 |
1 | ||
| 16268-45021 |
4M..MS83,85..ARL |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41040 |
4M..MS8#,95 |
1 | ||
| 16268-45021 |
4M..MS83,85..ARL |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90910-05088 |
4M..MS8#,95 |
1 | ||
| 16264-45020 |
4M..MS83,85..ARL |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90910-05088 |
4M..MS8#,95 |
1 | ||
| 16264-45020 |
4M..MS83,85..ARL |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
4M..MS83,85..ARL ID=22 |
2 | ||
| 90460-23040 |
4M..MS8#,95 ID=22.5 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
4M..MS83,85..ARL ID=22 |
2 | ||
| 90460-23040 |
4M..MS8#,95 ID=22.5 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
4M..MS83,85..ARL ID=22 |
2 | ||
| 90460-23040 |
4M..MS8#,95 ID=22.5 |
1 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90445-23001 |
4M..MS8#,95 |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90460-23040 |
4M..MS8#,95 ID=22.5 |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
4M..MS83,85..ARL |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90339-16007 | ||||
| 90460-25002 | ||||
| 90461-08154 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1701 | ||||
(7410-7908)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-41041 |
4M..MS8#,95 |
1 | ||
| 16331-45020 |
4M..MS83,85..ARL |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03033 |
4M..MS8#,95 WAX 82-95 FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
4M..MS8#,95 |
1 | ||
| 16361 - FAN | ||||
| 16361-41060 |
4M..MS8#,95 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10904 |
4M..MS8#,95 L=904,50A ALTERNATOR |
1 | ||
| 99522-10904 |
4M..MS8#,95..BTP,DLX,SAL,STD L=904 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-41030 |
4M..MS8#,95 |
1 | ||
| 16381-45011 |
4M..MS83,85..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-45050 |
4M..MS8#,95..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4M..MS8#,95 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
4M..MS8#,95 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
4M..MS83,85,95 MAKER "NIPPON DENSO" |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12521 |
4M..MS8#,95 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85332-20030 |
4M..MS8#,95 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41050 |
4M..MS8#,95 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
4M..MS8#,95 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
4M..MS8#,95 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41030 |
4M..MS8#,95 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41030 |
4M..MS8#,95 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4M..MS8#,95 |
4 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41030 |
4M..MS8#,95 UPPER |
1 | ||
| 16712-41030 |
4M..MS8#,95 LOWER |
1 | ||
| Common parts | ||||
| 90461-08055 | ||||
| 90467-11085 | ||||
| 91611-40616 | ||||
| 91611-60620 | ||||
| 91611-60845 | ||||
| 91611-60865 | ||||
| 91651-40822 | ||||
| 91655-40820 | ||||
