MS85R-KBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M

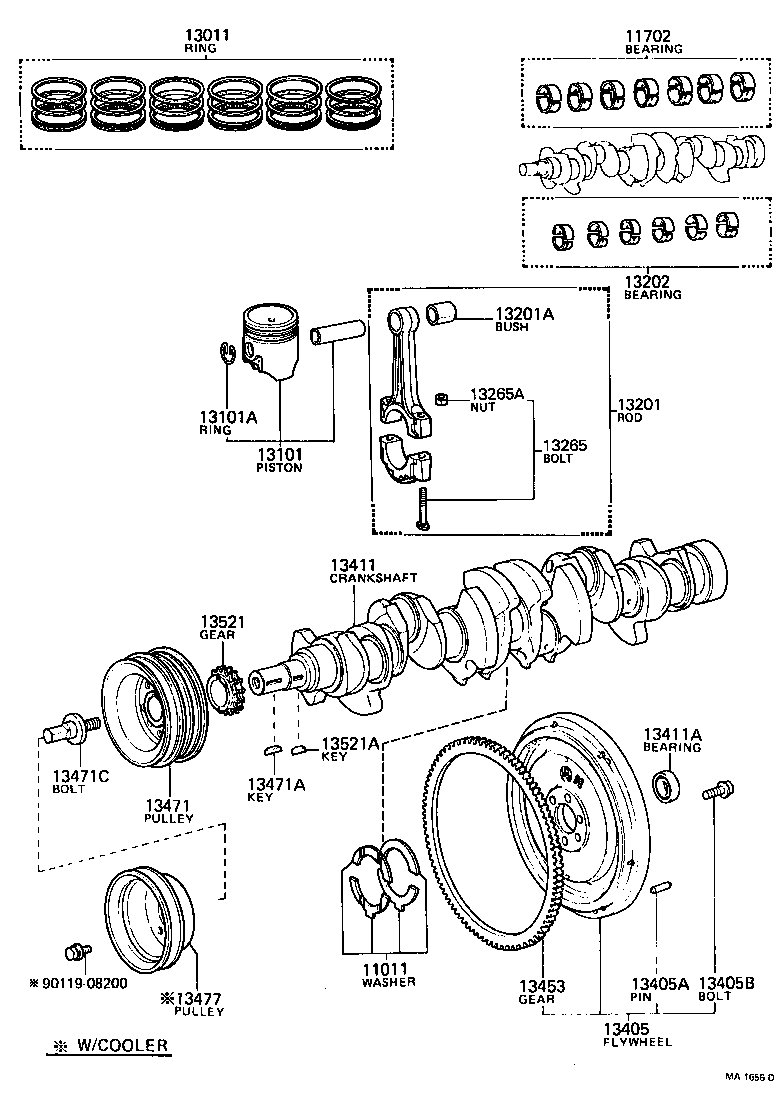

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471A 13471C 13477 13521 13521A 9011908200
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-45010

4M..MS8#,95

O/S 0.125,O/S 0.125

 1
11011-45010

4M..MS8#,95

STD,STD

 1
11013-45010

4M..MS8#,95

O/S 0.250,O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11704-45011

4M..MS8#,95

U/S 0.25,U/S 0.25

 1
11705-45011

4M..MS8#,95

U/S 0.50,U/S 0.50

 1
11703-45011

4M..MS8#,95

U/S 0.05,U/S 0.05

 1
11702-45011

4M..MS8#,95

STD,STD

 1
13011 - RING SET, PISTON
13014-45021

4M..MS8#,95

O/S 0.75,O/S 0.75

 1
13015-45021

4M..MS8#,95

O/S 1.00,O/S 1.00

 1
13011-45021

4M..MS8#,95

STD,STD

 1
13013-45021

4M..MS8#,95

O/S 0.50,O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13104-45020

4M..MS83,85..ARL

0/S 0.75

 6
13101-45020

4M..MS83,85..ARL

STD

 6
13103-45020

4M..MS83,85..ARL

0/S 0.50

 6
13104-45011

4M..MS8#,95

O/S 0.75

 6
13103-45011

4M..MS8#,95

O/S 0.50

 6
13101-45011

4M..MS8#,95

STD

 6
13105-45011

4M..MS8#,95

O/S 1.00

 6
13105-45020

4M..MS83,85..ARL

0/S 1.00

 6
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25052

4M..MS8#,95

 12
13201 - ROD SUB-ASSY, CONNECTING
13201-41011

4M..MS8#,95

 6
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73066

4M..MS8#,95

 6
13202 - BEARING SET, CONNECTING ROD
13203-45010

4M..MS8#,95

U/S 0.05

 1
13205-45010

4M..MS8#,95

U/S 0.50

 1
13204-45010

4M..MS8#,95

U/S 0.25

 1
13202-45010

4M..MS8#,95

STD

 1
13265 - BOLT, CONNECTING ROD
90910-02044

4M..MS8#,95

 12
13405 - FLYWHEEL SUB-ASSY
13405-49105

4M..MS8#,95..MTM

N=115

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

4M..MS8#,95..MTM

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

4M..MS8#,95..MTM

10-1.25PX26-18

 6
13411 - CRANKSHAFT
13411-45011

4M..MS8#,95

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97143-06201

4M..MS8#,95..MTM

6201 VV C3

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

4M..MS8#,95..MTM

N=115

 1
13471 - PULLEY, CRANKSHAFT
13407-45010

4M..MS83,85..ARL

 1
13407-41011

4M..MS83..3FC,3H;4M..MS83..4F..GEN;4M..MS85,88,95..BTP,DLX,STD

L/POWER STEERING

 1
13407-42011

4M..MS8#,95

W/POWER STEERING

 1
13407-45010

4M..MS8#,95

 1
13407-41011

4M..MS8#,95..BTP,DLX,STD

L/POWER STEERING

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05001

4M..MS8#,95

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14052

4M..MS8#,95

14-1.5PX26-21

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-30280

4M..MS8#,95

W/COOLER

 1
88451-30301

4M..MS8#,95

 1
88451-30280

4M..MS8#,95..BTP,DLX,SAL,STD

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-41011

4M..MS8#,95

N=20

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4M..MS8#,95

 1
Common parts
90119-08200
