MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7707)MS83,95 ; (7410-7707)MS85,88..RHD ; (7410-7707)MS85..LHD..BTP,DLX,SAL

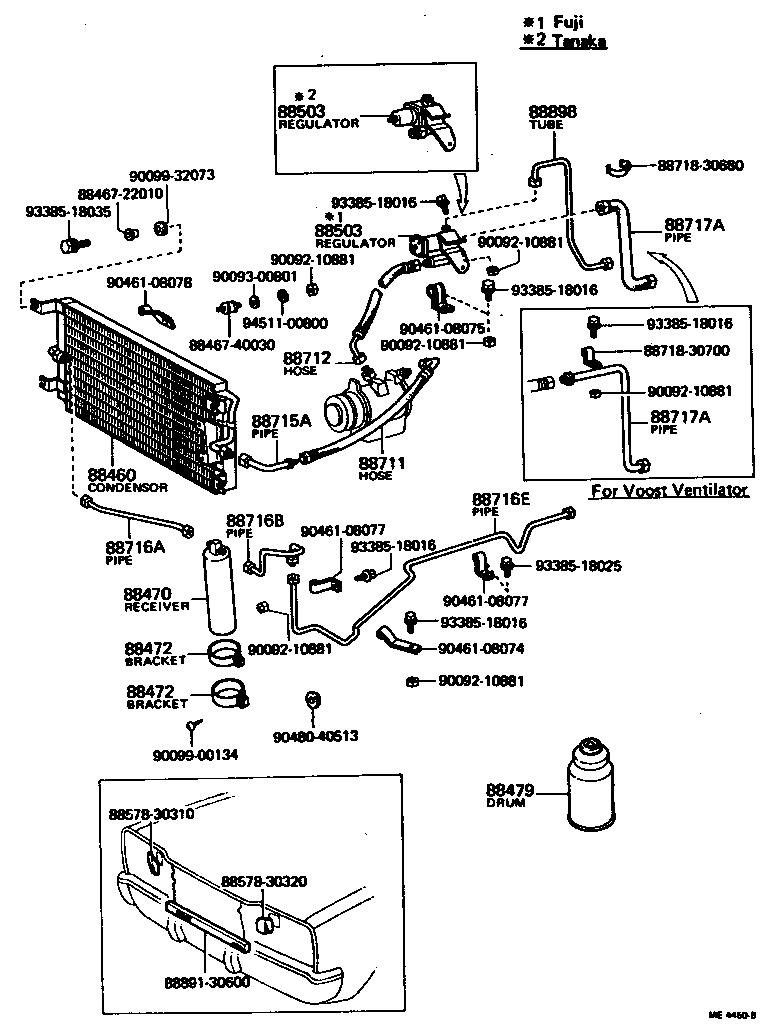

Click highlighted areas on diagram

diagram 88460 8846722010 8846740030 88470 88472 88472 88479 88503 88503 8857830310 8857830320 88711 88712 88715A 88716A 88716B 88716E 88717A 88717A 8871830680 8871830700 8889130600 88898 9009210881 9009210881 9009210881 9009210881 9009210881 9009210881 9009300801 9009900134 9009932073 9046108074 9046108075 9046108077 9046108077 9046108078 9048040513 9338518016 9338518016 9338518016 9338518016 9338518016 9338518025 9338518035 9451100800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30370

MS8#,95

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30260

MS8#,95

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-30250

MS8#,95

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88473-30250

MS8#,95

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

MS8#,95

 2
88503 - REGULATOR ASSY, PRESSURE
88503-30280

MS8#,95..RHD

TANAKA

 1
88503-30270

MS8#,95..RHD

FUJI

 1
88503 - REGULATOR ASSY, PRESSURE
88503-30280

MS8#,95..RHD

TANAKA

 1
88503-30270

MS8#,95..RHD

FUJI

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30430

MS8#,95..BTP,DLX,SAL,STD

 1
88711-30440

MS8#,95

FOR HEATER

 1
88711-30410

MS8#,95

FOR BOOST VENTILATOR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30480

MS8#,95..RHD

 1
88712-30500

MS8#,95

 1
88712-22070

MS8#,95..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30270

MS8#,95..BTP,DLX,SAL,STD

 1
88715-30270

MS8#,95

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-30880

MS8#,95

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-30870

MS8#,95..RHD..(BTP,DLX,SAL,STD)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-30781

MS8#,95..RHD..(BTP,DLX,SAL,STD)

 1
88716-30780

MS8#,95..RHD..(BTP,DLX,SAL,STD)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-30810

MS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)

FRONT,FOR BOOST VENTILATOR

 1
88717-30780

MS8#,95..BTP,DLX,SAL,STD

FRONT,FOR HEATER

 1
88717-30750

MS85..3FC..ARL;MS85,95..RHD..GEN;MS85..4F..SAL..ARL

REAR

 1
88717-30780

MS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD

LHD=FOR HEATER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-30810

MS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)

FRONT,FOR BOOST VENTILATOR

 1
88717-30780

MS8#,95..BTP,DLX,SAL,STD

FRONT,FOR HEATER

 1
88717-30750

MS85..3FC..ARL;MS85,95..RHD..GEN;MS85..4F..SAL..ARL

REAR

 1
88717-30780

MS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD

LHD=FOR HEATER

 1
88898 - TUBE SUB-ASSY, EQUALIZER
88896-30300

MS8#,95..RHD

 1
Common parts
88467-22010
88467-40030
88578-30310
88578-30320
88718-30680
88718-30700
88891-30600
90092-10881
90093-00801
90099-00134
90099-32073
90461-08074
90461-08075
90461-08077
90461-08078
90480-40513
93385-18016
93385-18025
93385-18035
94511-00800

(7410-7908)MS85,95..BTP,DLX,SAL ; (7702-7908)LHD..ROY

Click highlighted areas on diagram

diagram 88386A 88386B 88386C 88386E 88387A 88387B 88387C 88479 8871430280 88717A 8871830450 8871830460 8871830610 8871830610 8871830610 8871830630 8871830630 8871830650 8871830660 8871830660 9009905207 9009905215 9048050486 9338516020 9338516020 9338516020 9338516020 9338516020 9338516020 9338518020 9411040600 9411040600 9411040600 9411040600 9411040600 9411040600
Part # Description Qty Price
88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER
88716-30760

MS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95..RHD..(BTP,DLX,SAL)..GEN

 1
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88716-30780

MS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95..RHD..(BTP,DLX,SAL)..GEN

 1
88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C
88716-30860

MS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95..RHD..(BTP,DLX,SAL)..GEN

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88716-30690

MS85,95

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88717-30710

MS85,95..GEN;MS85..3FC..ARL;MS85..4F..SAL..ARL

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88717-30770

MS85,95

 1
88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C
88717-30760

MS85,95..RHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

MS8#,95

 2
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-30810

MS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)

FRONT,FOR BOOST VENTILATOR

 1
88717-30780

MS8#,95..BTP,DLX,SAL,STD

FRONT,FOR HEATER

 1
88717-30750

MS85..3FC..ARL;MS85,95..RHD..GEN;MS85..4F..SAL..ARL

REAR

 1
88717-30780

MS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD

LHD=FOR HEATER

 1
Common parts
88714-30280
88718-30450
88718-30460
88718-30610
88718-30630
88718-30650
88718-30660
90099-05207
90099-05215
90480-50486
93385-16020
93385-18020
94110-40600
