MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)ATM

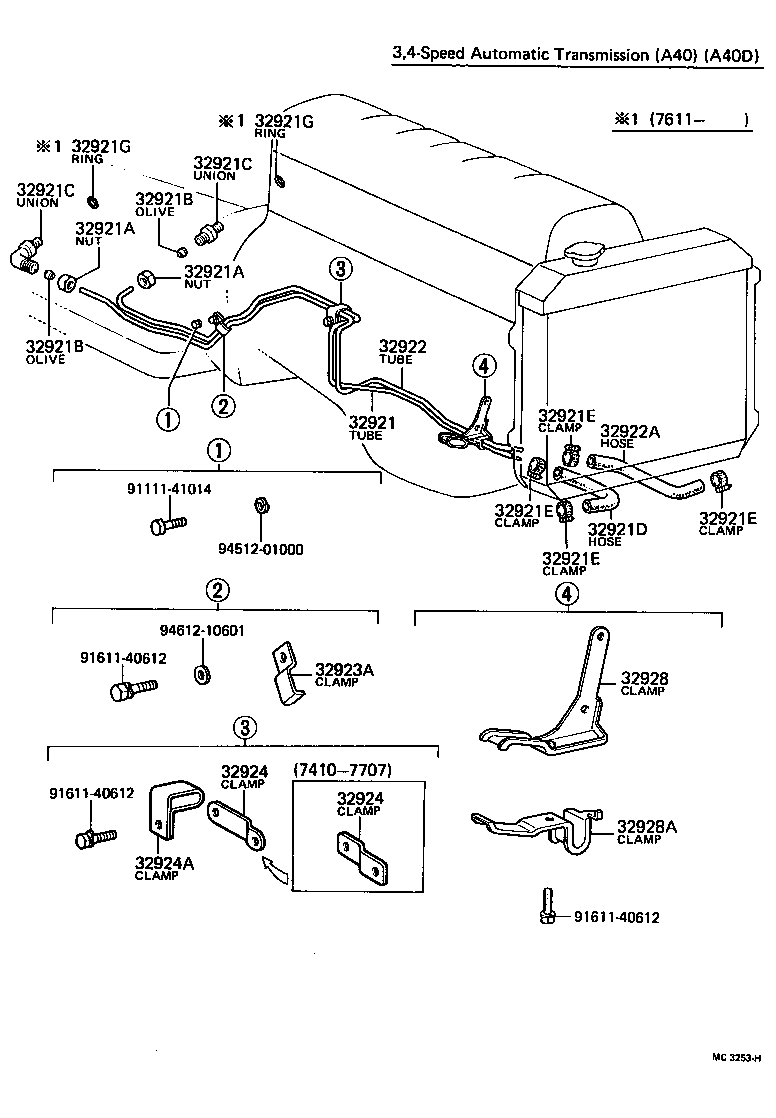

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923A 32924 32924 32924A 32928 32928A 9111141014 9161140612 9161140612 9161140612 9451201000 9461210601
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30080

MS83,85,95..ATM

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

MS83,85,95..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

MS83,85,95..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

MS83,85,95..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

MS83,85,95..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

MS83,85,95..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

MS83,85,95..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-30021

MS83,85,95..ATM

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MS83,85,95..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MS83,85,95..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MS83,85,95..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MS83,85,95..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30080

MS83,85,95..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-30021

MS83,85,95..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-10609

MS83,85,95..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30040

MS83,85,95..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30040

MS83,85,95..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90461-08607

MS83,85,95..ATM

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
15781-45012

MS83,85,95..ATM

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-12028

MS83,85,95..ATM

 1
Common parts
91111-41014
91611-40612
94512-01000
94612-10601
