MS85R-HBQ (1976)
Toyota Crown
(7410-7611)ATM

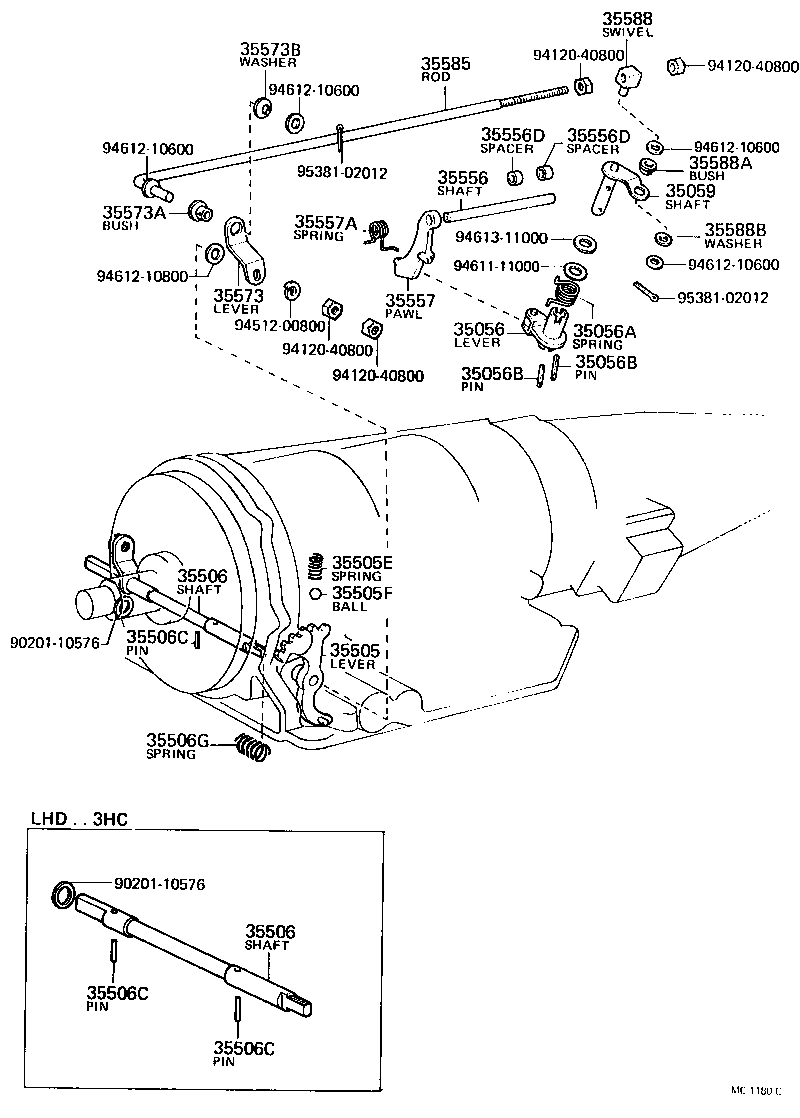

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER | ||||
| 35056-30010 |
MS83,85,95..ATM |
1 | ||
| 35056A - SPRING, PARKING LOCK LEVER | ||||
| 90508-26122 |
MS83,85,95..ATM |
1 | ||
| 35056B - PIN, PARKING LOCK LEVER | ||||
| 90254-04013 |
MS83,85,95..ATM |
2 | ||
| 35056B - PIN, PARKING LOCK LEVER | ||||
| 90254-04013 |
MS83,85,95..ATM |
2 | ||
| 35059 - SHAFT SUB-ASSY, PARKING LOCK | ||||
| 35059-30011 |
MS83,85,95..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30010 |
MS83,85,95..ATM |
1 | ||
| 35505E - SPRING, COMPRESSION (FOR MANUAL VALVE LEVER) | ||||
| 90501-12324 |
MS83,85,95..ATM |
1 | ||
| 35505F - BALL (FOR MANUAL VALVE LEVER) | ||||
| 90360-08009 |
MS83,85,95..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-30030 |
MS83,85,95..RHD..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-30030 |
MS83,85,95..RHD..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03010 |
MS83,85,95..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03010 |
MS83,85,95..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03010 |
MS83,85,95..ATM |
1 | ||
| 35506G - SPRING, COMPRESSION (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90501-14004 |
MS83,85,95..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30010 |
MS83,85,95..ATM |
1 | ||
| 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90560-11253 |
MS83,85,95..ATM |
2 | ||
| 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90560-11253 |
MS83,85,95..ATM |
2 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30011 |
MS83,85,95..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-16135 |
MS83,85,95..ATM |
1 | ||
| 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH | ||||
| 35573-30020 |
MS83,85,95..RHD..ATM |
1 | ||
| 35573A - BUSH (FOR TRANSMISSION CONTROL SHAFT LEVER) | ||||
| 90389-06014 |
MS83,85,95..ATM |
1 | ||
| 35573B - WASHER (FOR TRANSMISSION CONTROL SHAFT LEVER SETTING) | ||||
| 90206-06002 |
MS83,85,95..ATM |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35585-30010 |
MS83,85,95..ATM |
1 | ||
| 35588 - SWIVEL, PARKING LOCK ROD | ||||
| 35588-30010 |
MS83,85,95..ATM |
1 | ||
| 35588A - BUSH (FOR PARKING LOCK ROD SWIVEL) | ||||
| 90389-06014 |
MS83,85,95..ATM |
1 | ||
| 35588B - WASHER (FOR PARKING LOCK ROD SWIVEL) | ||||
| 90206-06002 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 90201-10576 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-11000 | ||||
| 94612-10600 | ||||
| 94612-10800 | ||||
| 94613-11000 | ||||
| 95381-02012 | ||||
(7410-7611)ATM

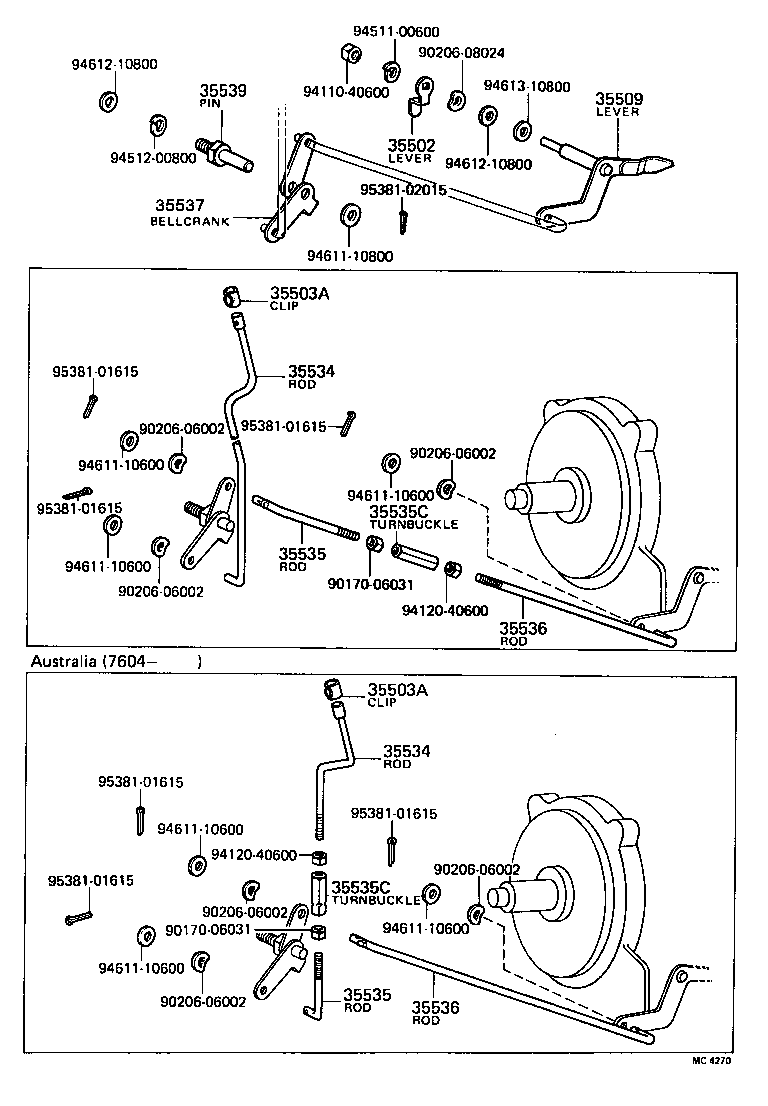

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35502 - LEVER SUB-ASSY, THROTTLE VALVE | ||||
| 35532-30010 |
MS83,85,95..ATM |
1 | ||
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
MS83,85,95..ATM |
1 | ||
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
MS83,85,95..ATM |
1 | ||
| 35509 - LEVER SUB-ASSY, THROTTLE VALVE, OUTER | ||||
| 35502-30011 |
MS83,85,95..RHD..ATM |
1 | ||
| 35534 - ROD, THROTTLE LINK CONNECTING, 1ST | ||||
| 35503-30010 |
MS85,95..ATM;MS83..3FC..GEN |
1 | ||
| 35503-30010 |
MS83,85,95..ATM |
1 | ||
| 35503-30020 |
MS83,85..3FC..ARL |
1 | ||
| 35534 - ROD, THROTTLE LINK CONNECTING, 1ST | ||||
| 35503-30010 |
MS85,95..ATM;MS83..3FC..GEN |
1 | ||
| 35503-30010 |
MS83,85,95..ATM |
1 | ||
| 35503-30020 |
MS83,85..3FC..ARL |
1 | ||
| 35535 - ROD, THROTTLE LINK CONNECTING, 2ND | ||||
| 35535-30080 |
MS85..RHD..ATM;MS83,95..RHD..3FC..GEN |
1 | ||
| 35535-30090 |
MS83,85..3FC..ARL |
1 | ||
| 35535-30080 |
MS83,85,95..RHD..ATM |
1 | ||
| 35535 - ROD, THROTTLE LINK CONNECTING, 2ND | ||||
| 35535-30080 |
MS85..RHD..ATM;MS83,95..RHD..3FC..GEN |
1 | ||
| 35535-30090 |
MS83,85..3FC..ARL |
1 | ||
| 35535-30080 |
MS83,85,95..RHD..ATM |
1 | ||
| 35535C - TURNBUCKLE, THROTTLE LINK CONNECTING ROD, NO.2 | ||||
| 90587-06001 |
MS83,85,95..ATM |
1 | ||
| 35535C - TURNBUCKLE, THROTTLE LINK CONNECTING ROD, NO.2 | ||||
| 90587-06001 |
MS83,85,95..ATM |
1 | ||
| 35536 - ROD, THROTTLE LINK CONNECTING, 3RD | ||||
| 35535-30070 |
MS83,85..3FC..ARL |
1 | ||
| 35536-30030 |
MS83,85,95..RHD..ATM |
1 | ||
| 35536-30030 |
MS85..RHD..ATM;MS83,95..RHD..3FC..GEN |
1 | ||
| 35536 - ROD, THROTTLE LINK CONNECTING, 3RD | ||||
| 35535-30070 |
MS83,85..3FC..ARL |
1 | ||
| 35536-30030 |
MS83,85,95..RHD..ATM |
1 | ||
| 35536-30030 |
MS85..RHD..ATM;MS83,95..RHD..3FC..GEN |
1 | ||
| 35537 - BELLCRANK, LINK THROTTLE | ||||
| 35537-30090 |
MS83,85,95..ATM |
1 | ||
| 35539 - PIN, THROTTLE LINK BELLCRANK | ||||
| 35539-22010 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 90170-06031 | ||||
| 90206-06002 | ||||
| 90206-08024 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-10600 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-01615 | ||||
| 95381-02015 | ||||
